ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

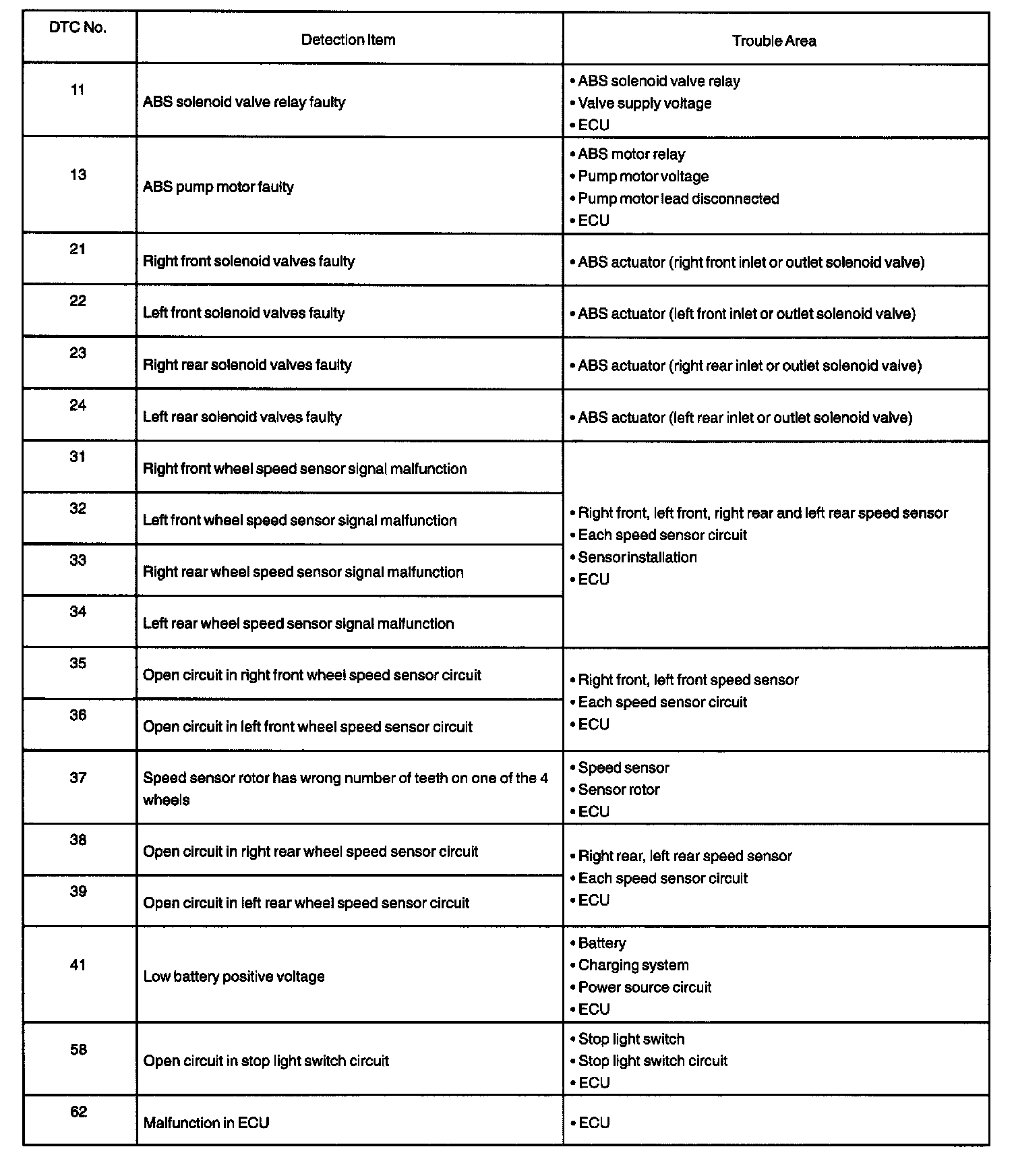

DTC 11 - 62:

HINT:
- Using SST O9843-18O2O connect the terminals TC and E1 of the DLC1 or DLC2.
- If a malfunction code is displayed during the DTC check, check the circuit listed in code. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Charts".

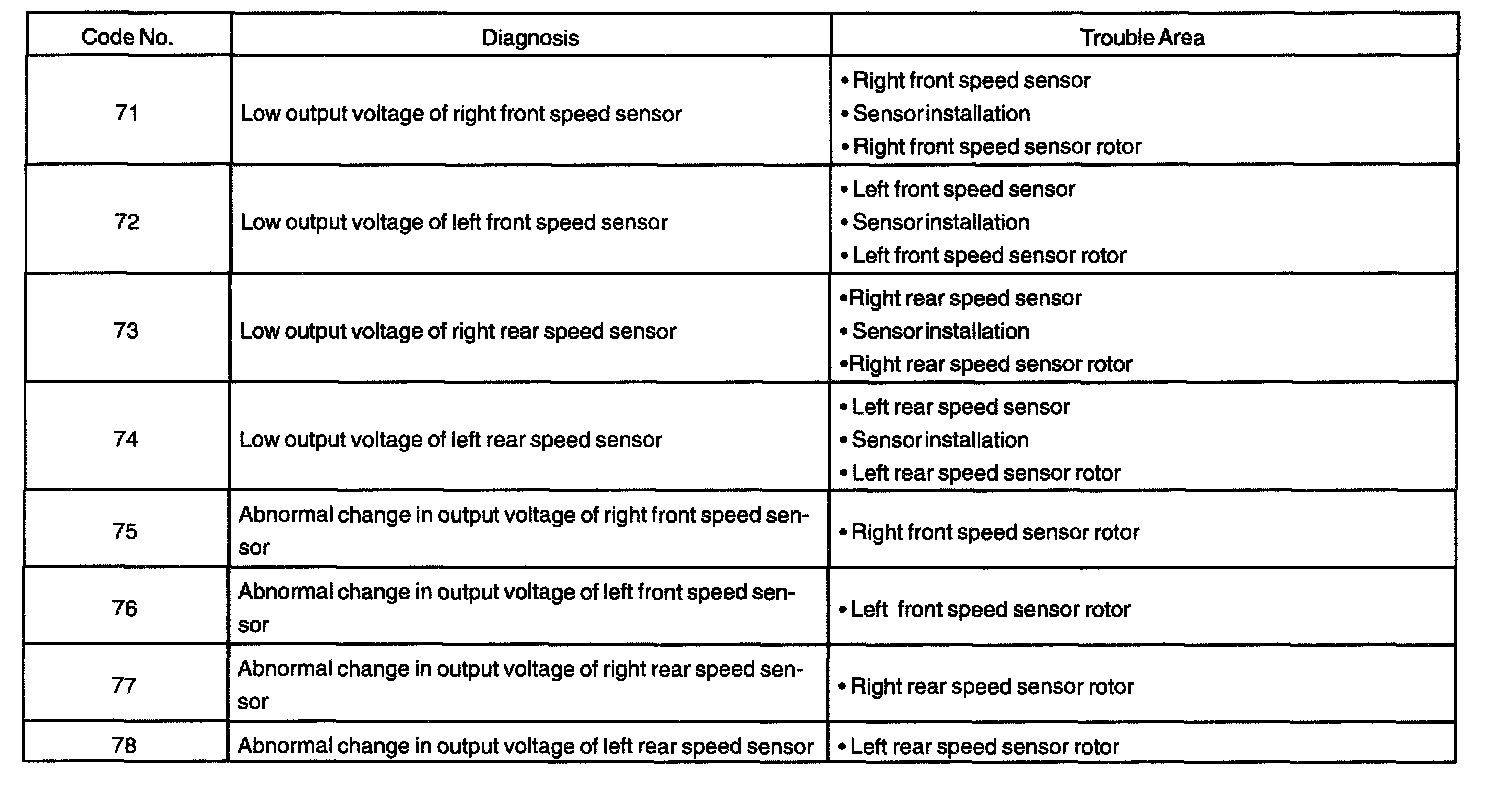

DTC 71 - 78:

DTC of speed sensor check function
