ABS w/ Traction Control (TRAC)

DIAGNOSTIC TROUBLE CODE CHART

DTC C0278 - C1241:

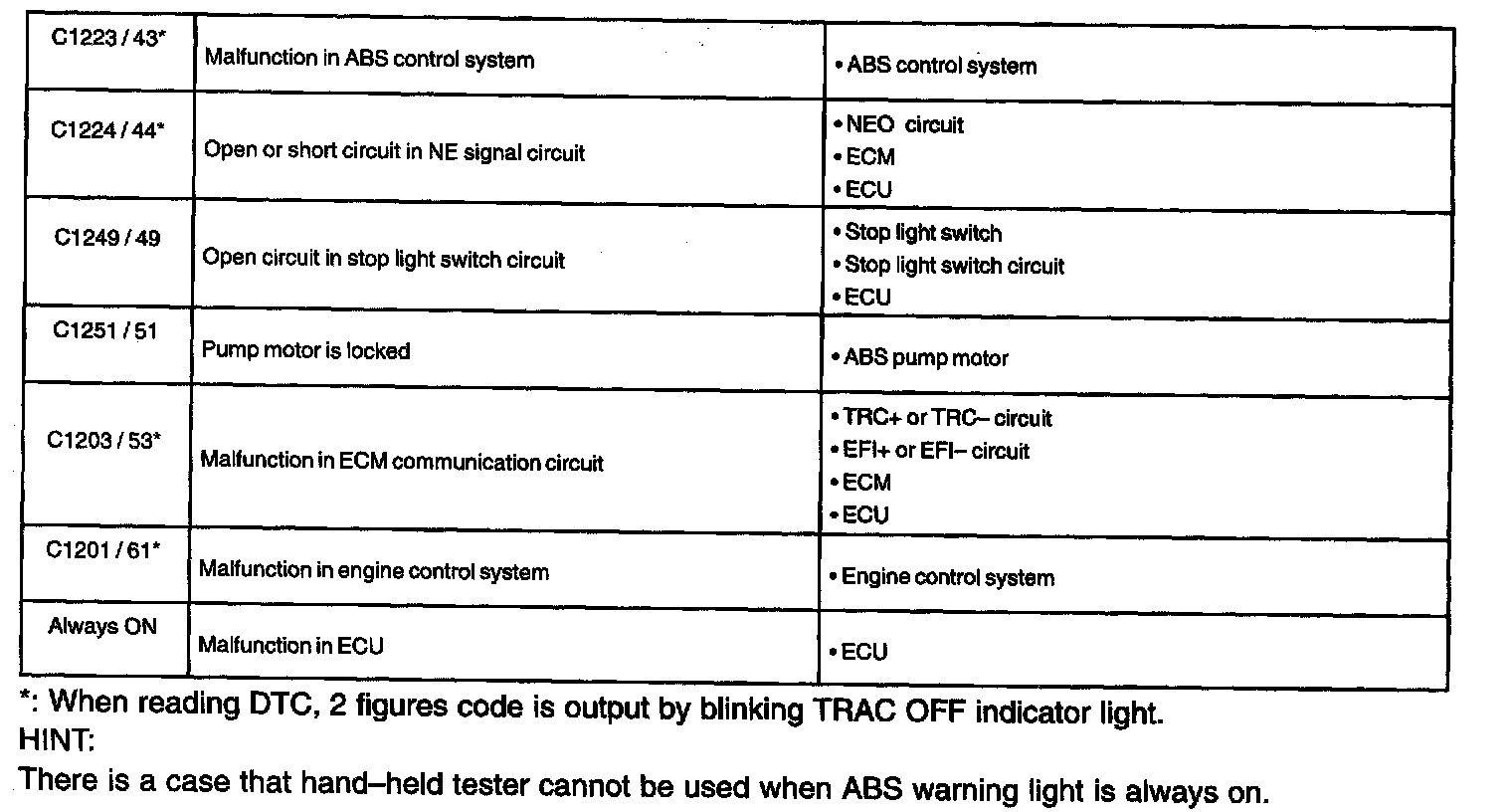

DTC C1223 - C1201:

Hint:
- Using SST 09843-18020, connect terminals Tc and E1 of the DLC1 or DLC2, and remove the short pin.
- If a malfunction code is displayed during the DTC check, check the circuit listed in code. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Charts".

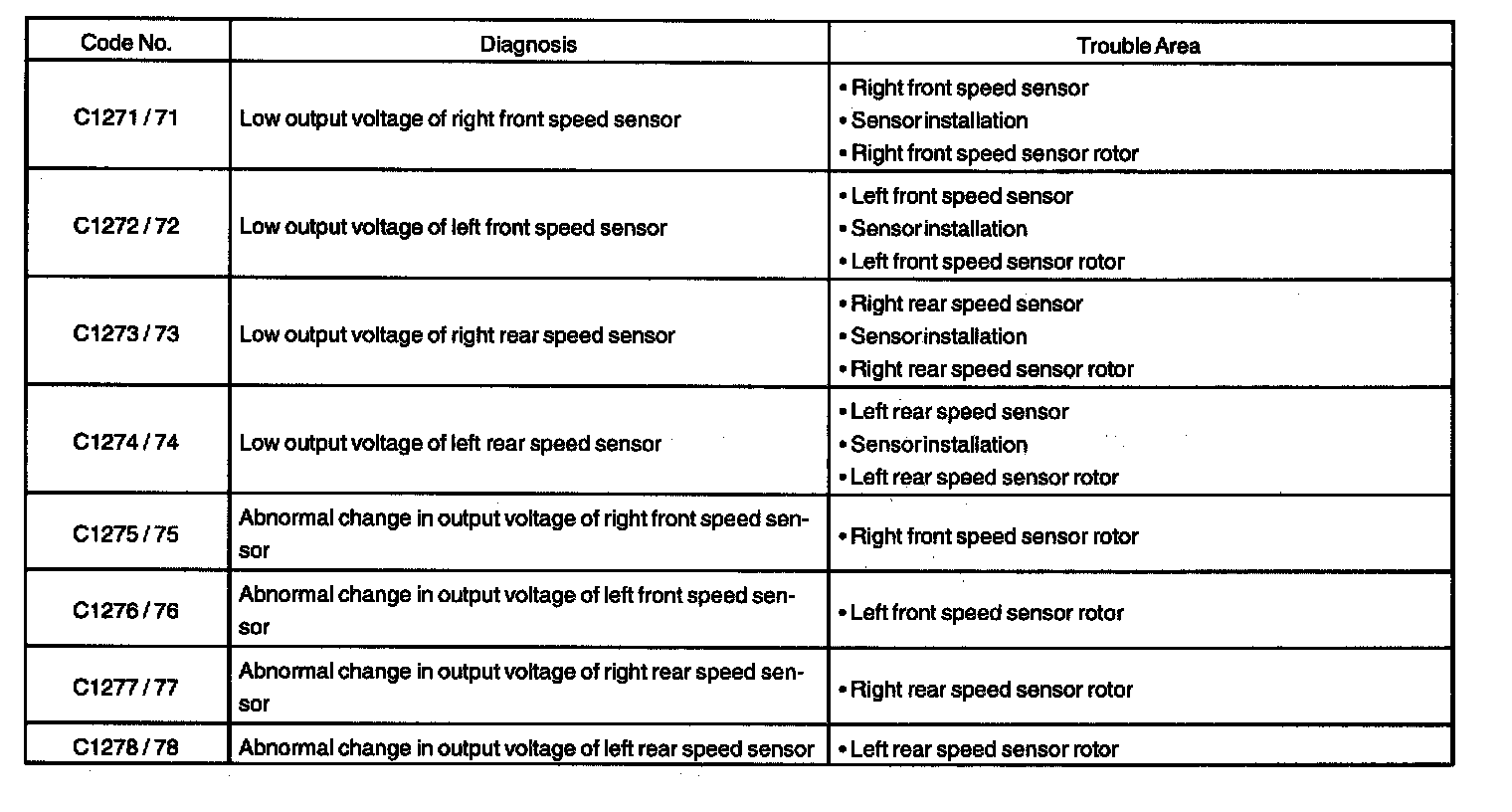

C1271 - C1278:

DTC of speed sensor check function
