Camry Solara V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>

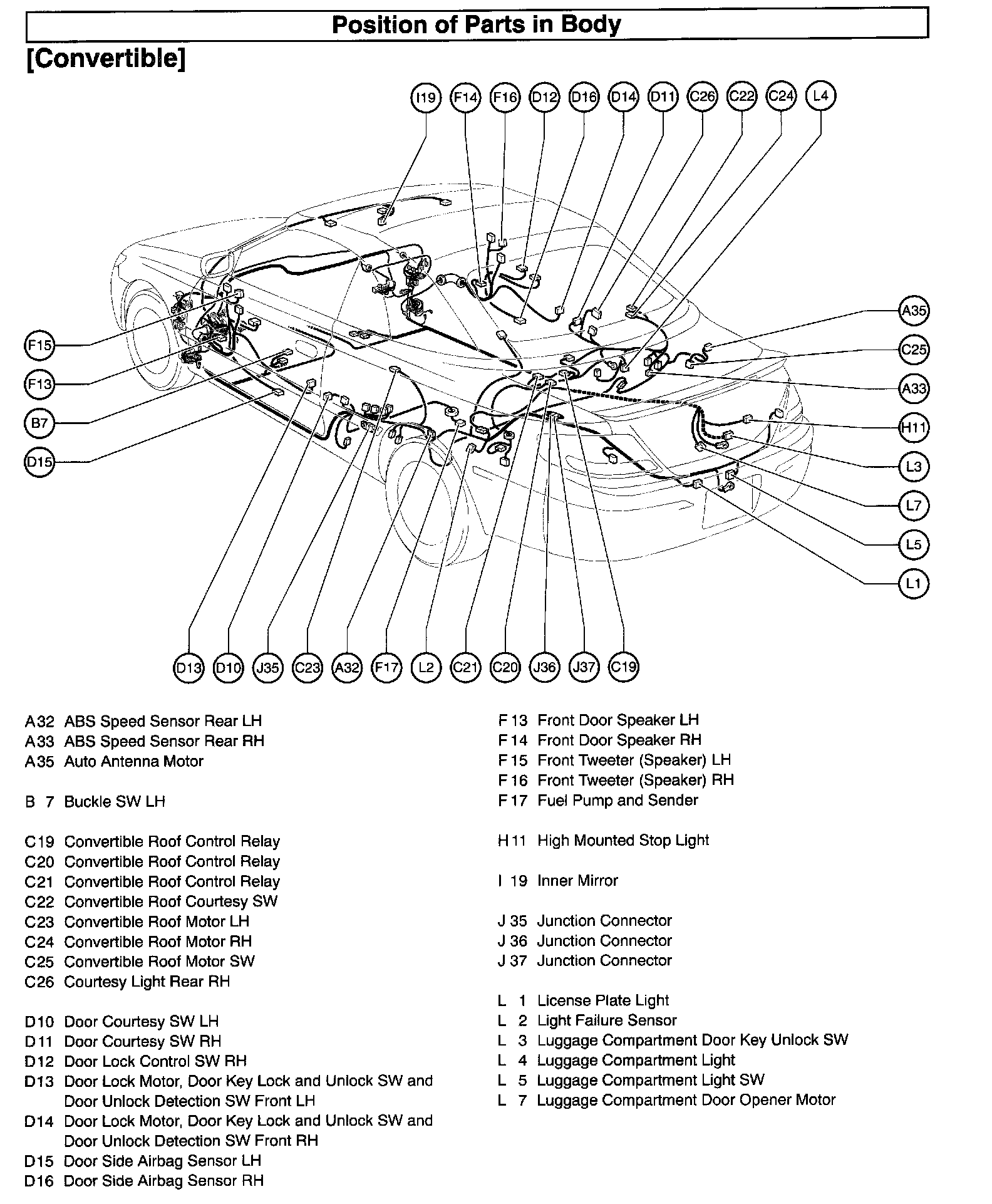

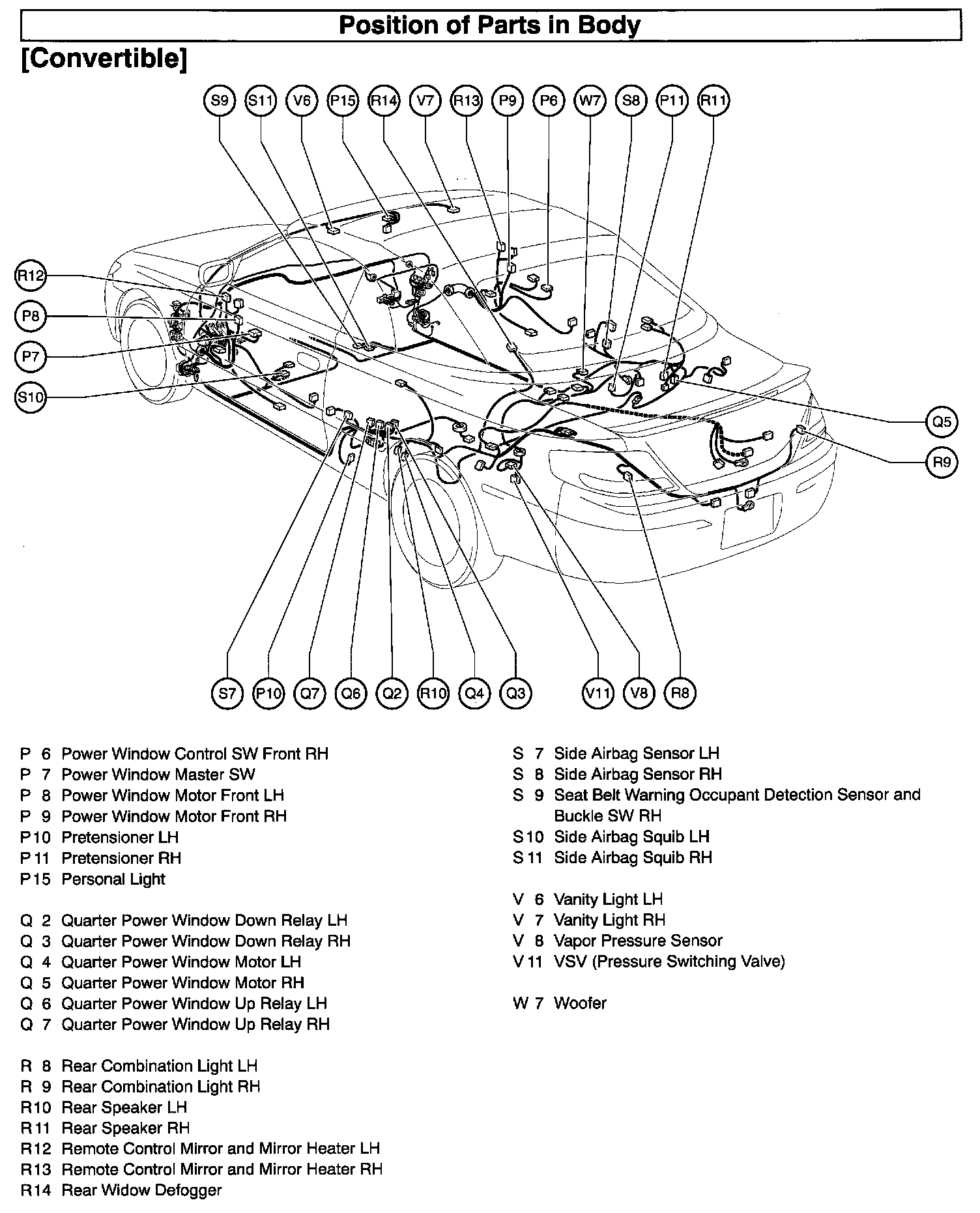

Position of Parts In Body
Position of Parts In Body
AB - Lu:
Mo - Vs:
AB - Lu:
Po - Wo:
Bu - Se:
