Condenser Fan Motor Relay: Testing and Inspection

INSPECTION

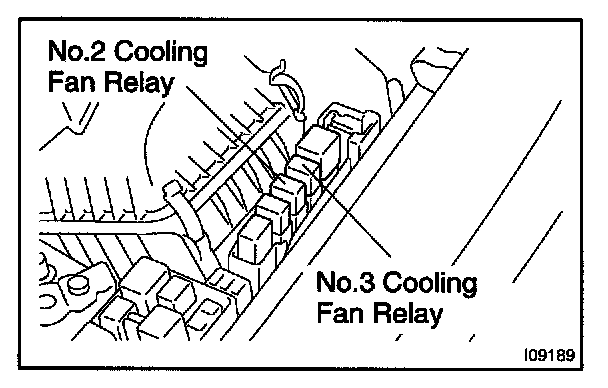

1. REMOVE CONDENSER FAN RELAYS FROM NO.5 RELAY BLOCK

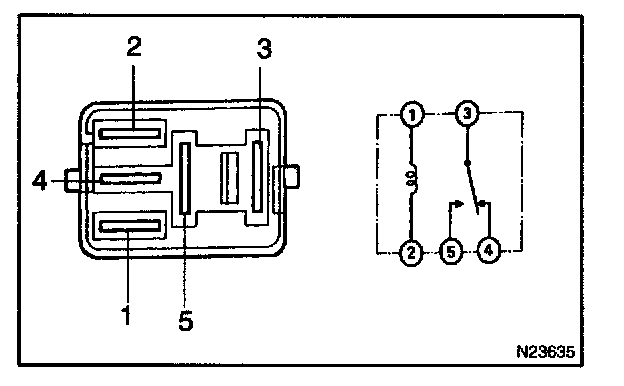

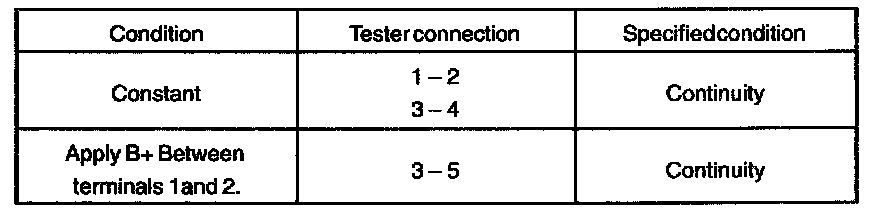

2. INSPECT NO.2 COOLING FAN RELAY (Marking: FAN No.2) CONTINUITY
If continuity is not as specified, replace the relay.

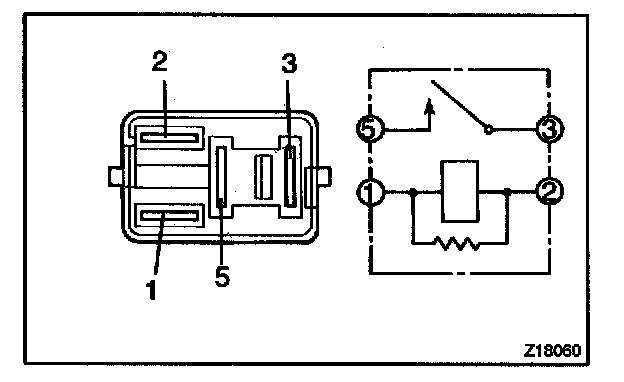

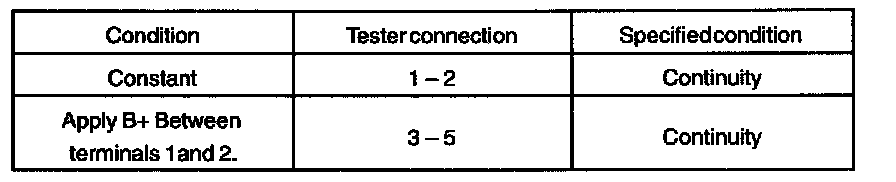

3. INSPECT NO.3 COOLING FAN RELAY (Marking: FAN No.3) CONTINUITY
If continuity is not as specified, replace the relay.
