Daytime Running Lamp: Testing and Inspection

INSPECT DAYTIME RUNNING LIGHT RELAY (MAIN) CIRCUIT

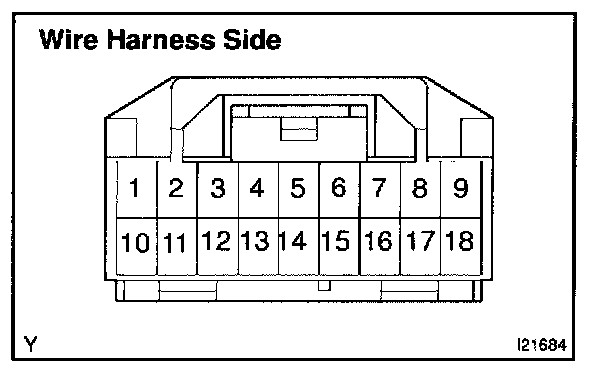

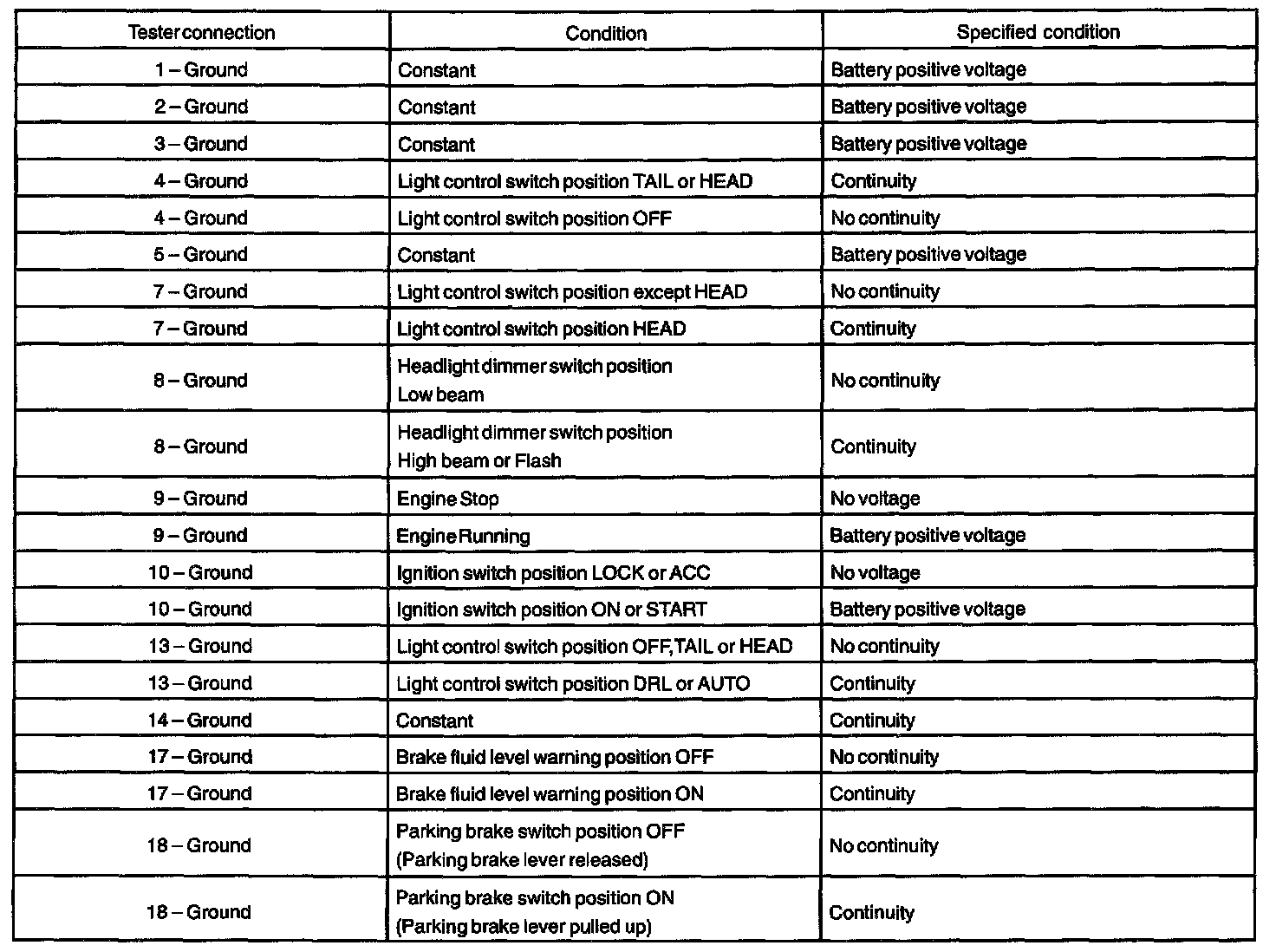

Disconnect the connector from the relay and inspect the connector on the wire harness side.

If circuit is as specified, replace the relay with a new one.

If circuit is not as specified, inspect the circuits connected to other parts.

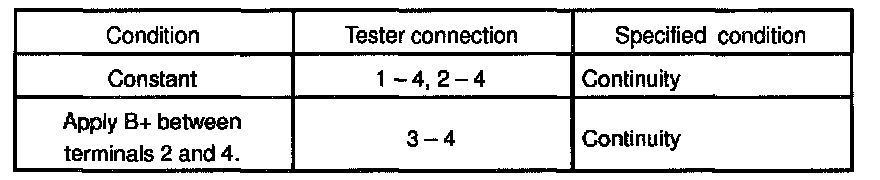

INSPECT DAYTIME RUNNING LIGHT NO.2 RELAY
If continuity is not as specified, replace the relay.







INSPECT DAYTIME RUNNING LIGHT NO.3 RELAY CONTINUITY
If continuity is not as specified, replace the relay.







INSPECT DAYTIME RUNNING LIGHT NO.4 RELAY CONTINUITY
If continuity is not as specified, replace the relay.
