Fuse Block: Locations

Instrument Panel J/B - Lower Finish Panel:

Engine Room J/B No.2 - Engine Compartment Left:

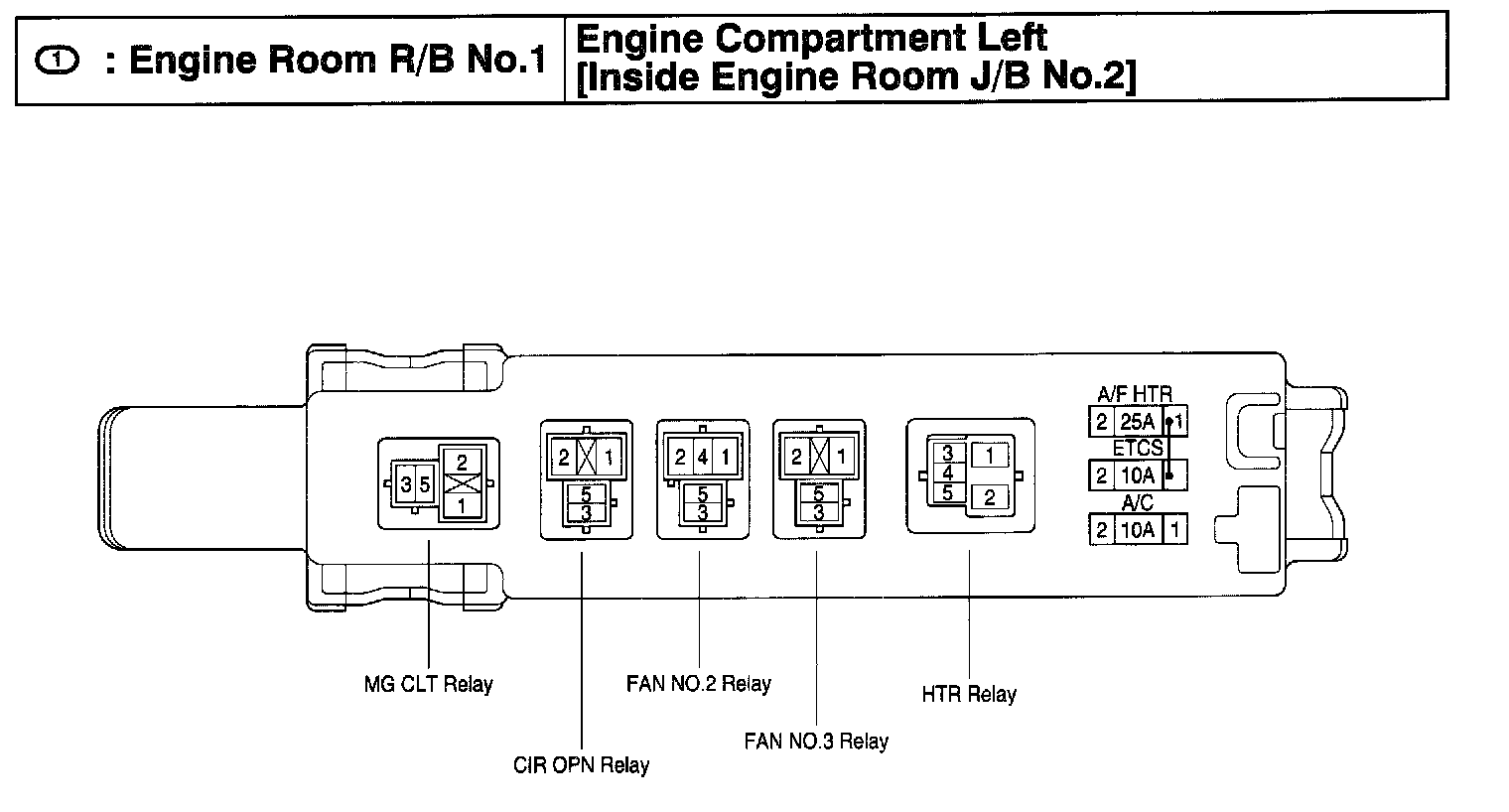

Engine Room R/B N0.1 - Engine Compartment Left:

Engine Room R/B No.2 - Near The Battery:

Engine Room R/B No.3 - Radiator Upper Support RH:

Fusible Link Block - Radiator Upper Support RH:

Fusible Link Block - Engine Compartment Left:

Engine Compartment:

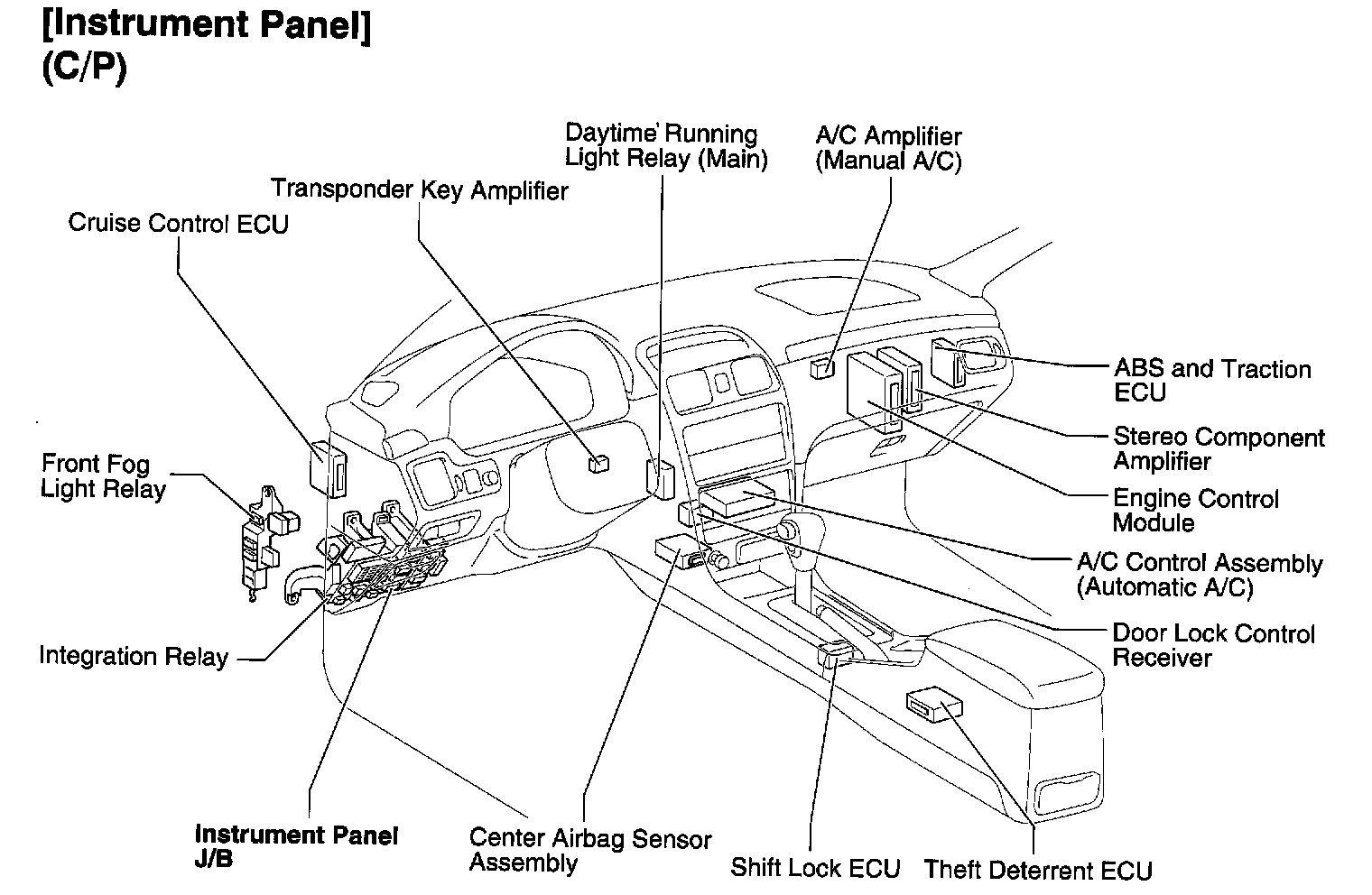

Instrument Panel:

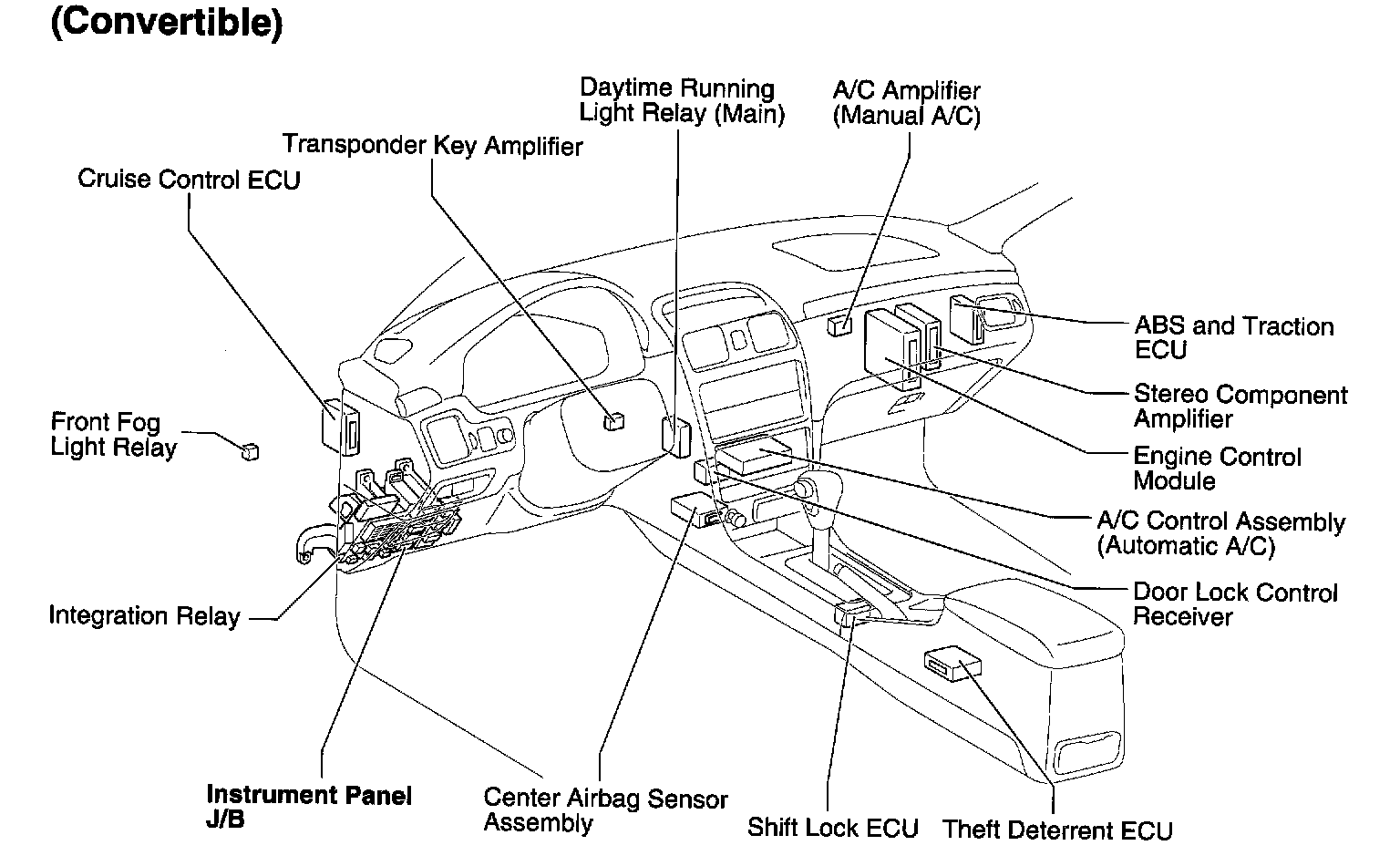

Instrument Panel:

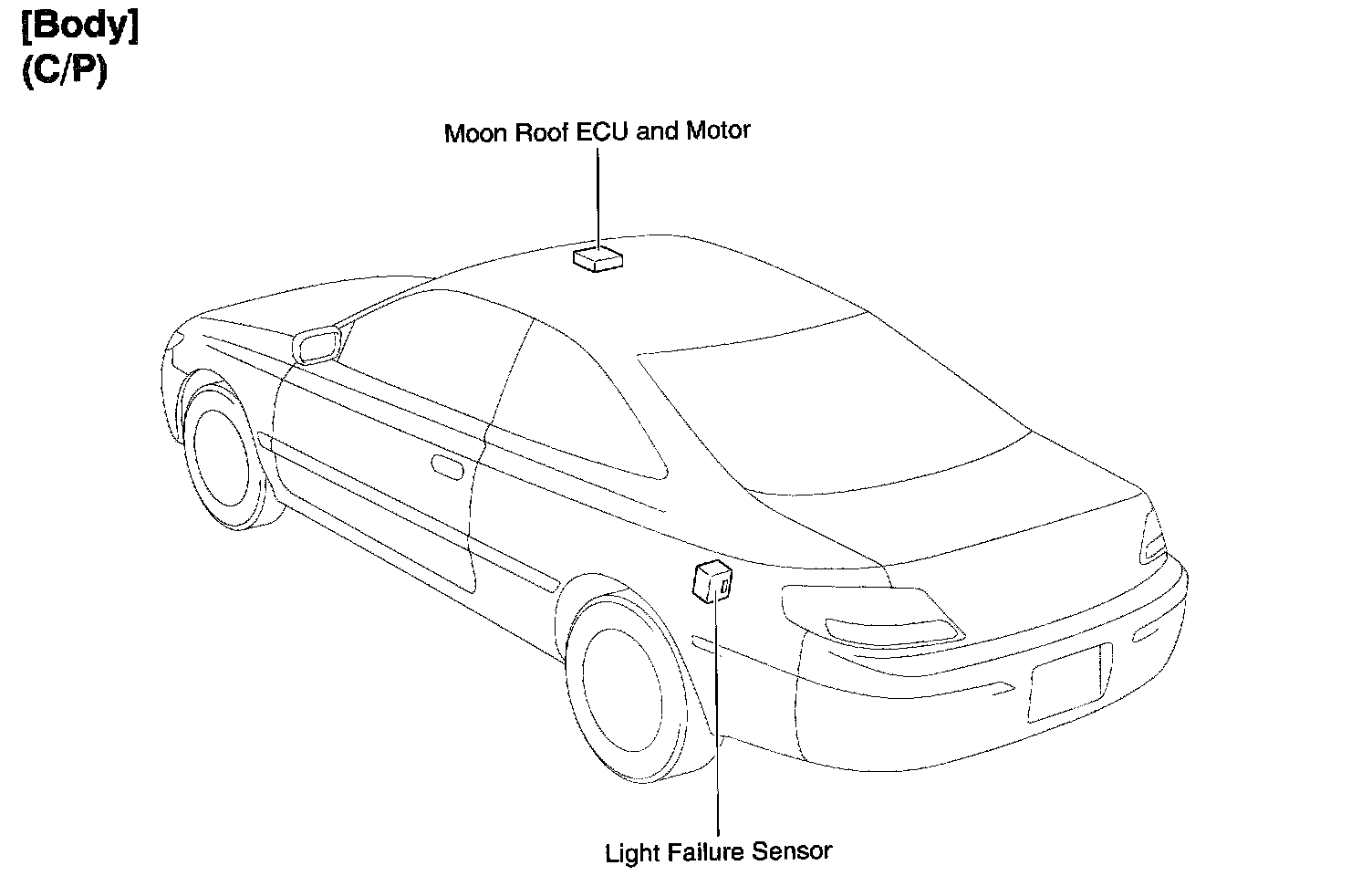

Body:

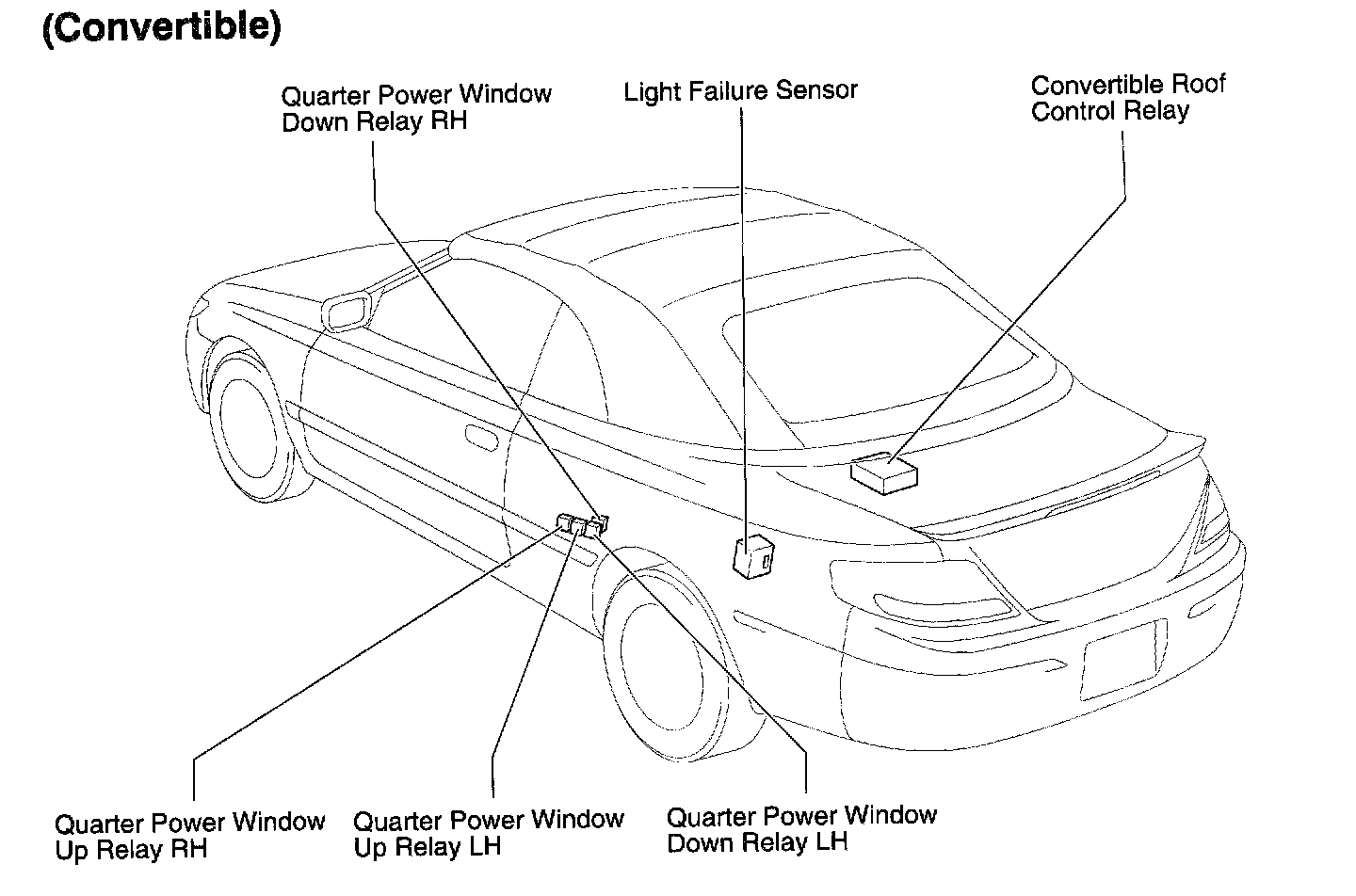

Body:
