Fuse: Application and ID

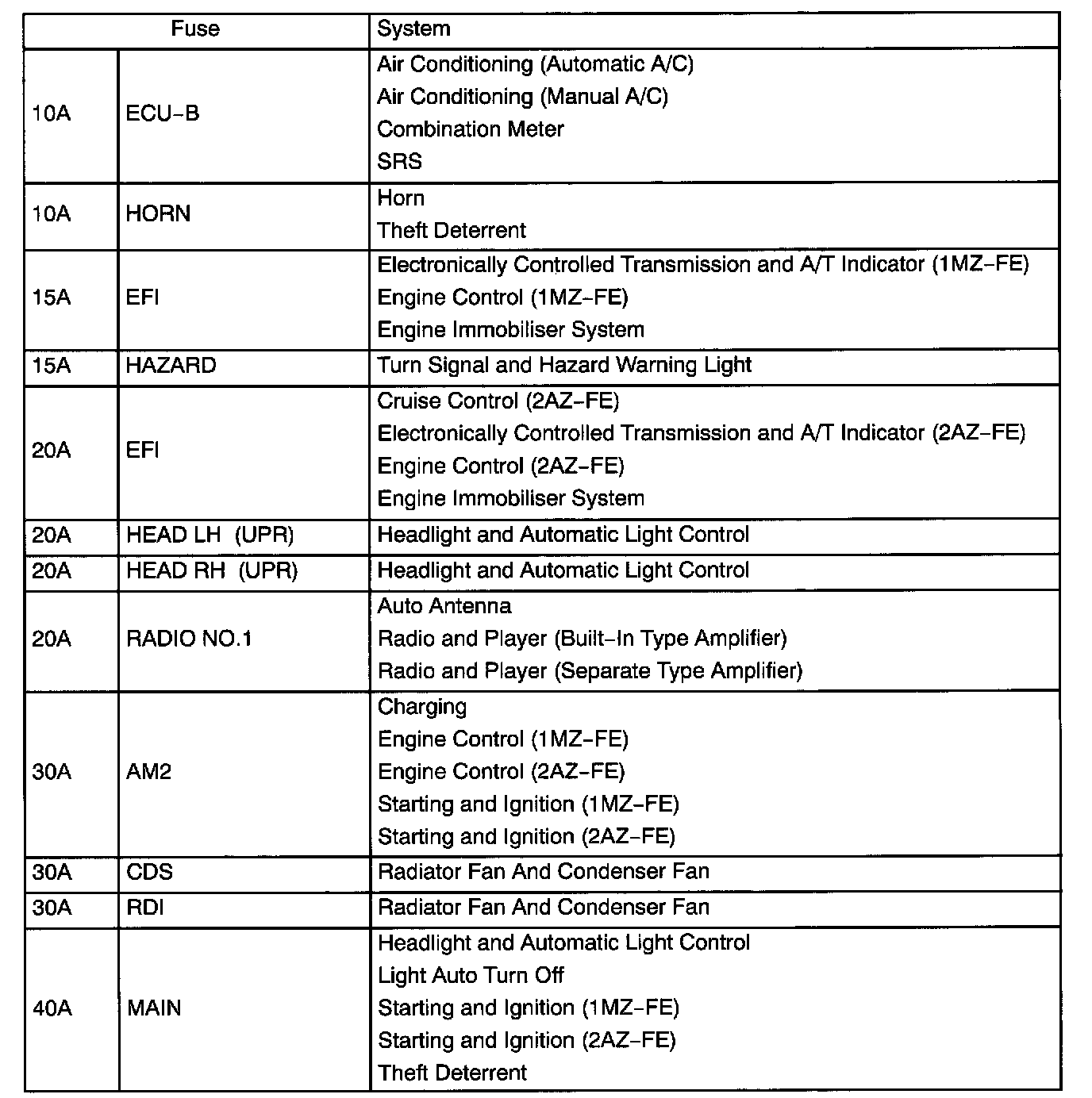

Engine Room J/B Part 1:

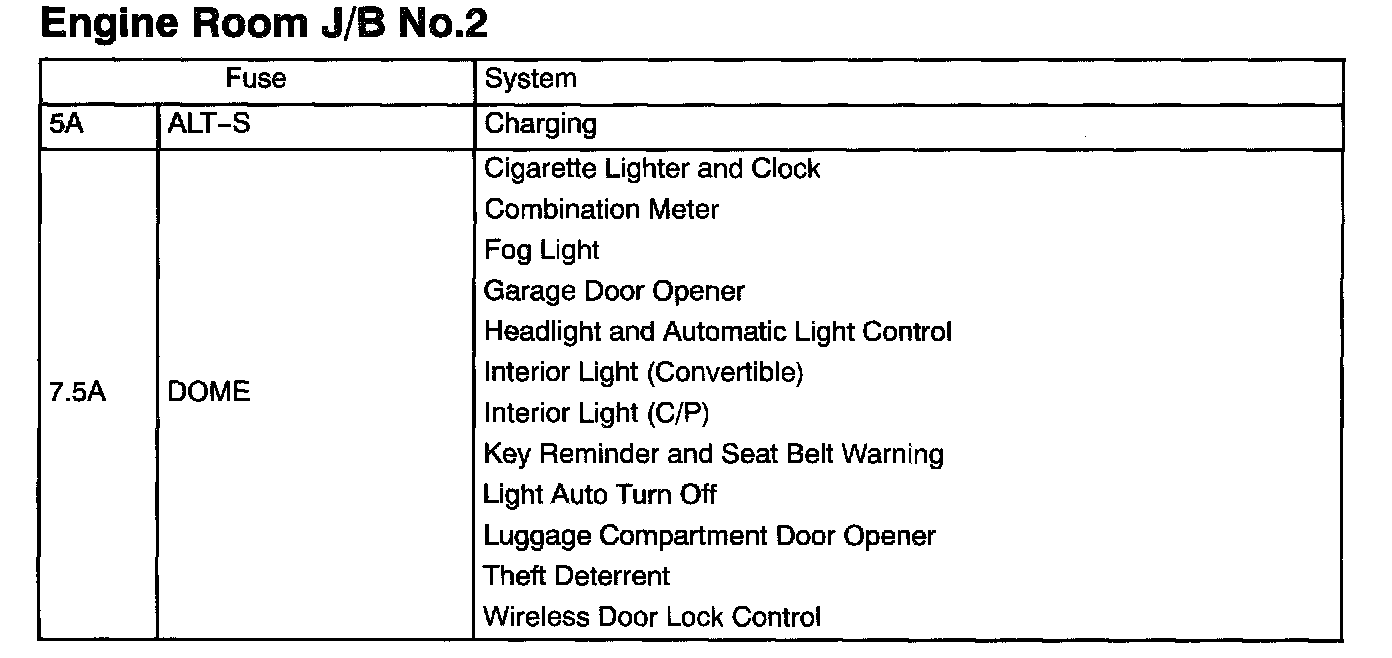

Engine Room J/B Part 2:

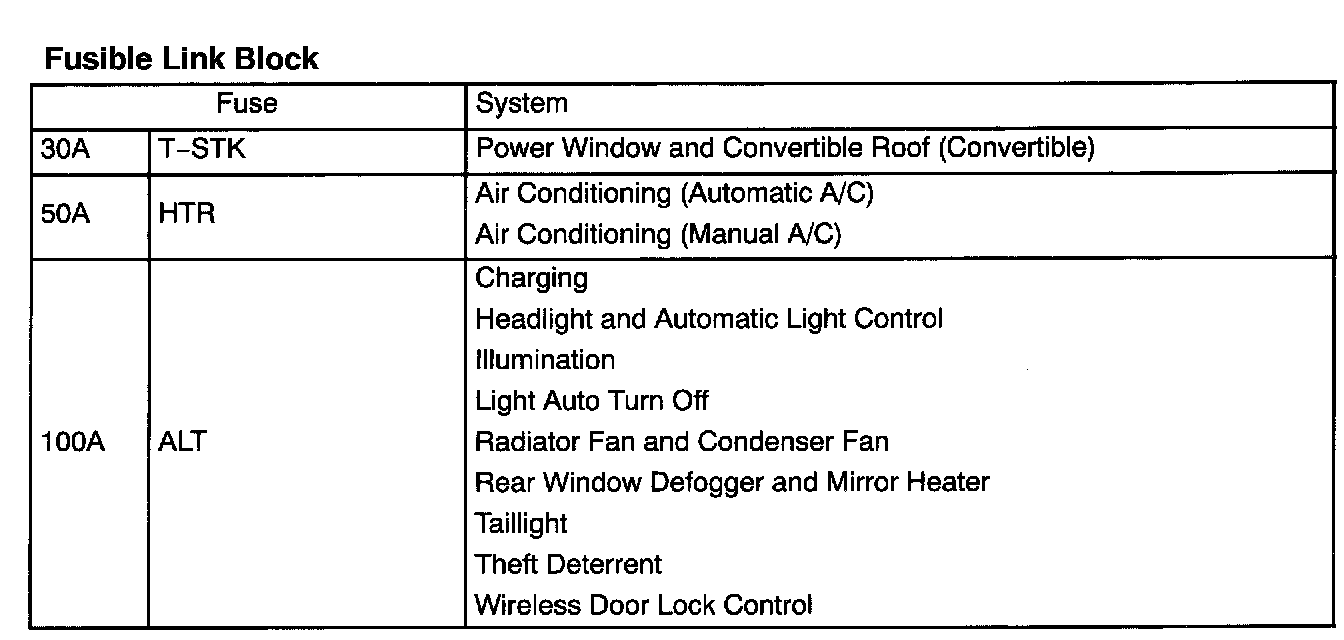

Fusible Link Block:

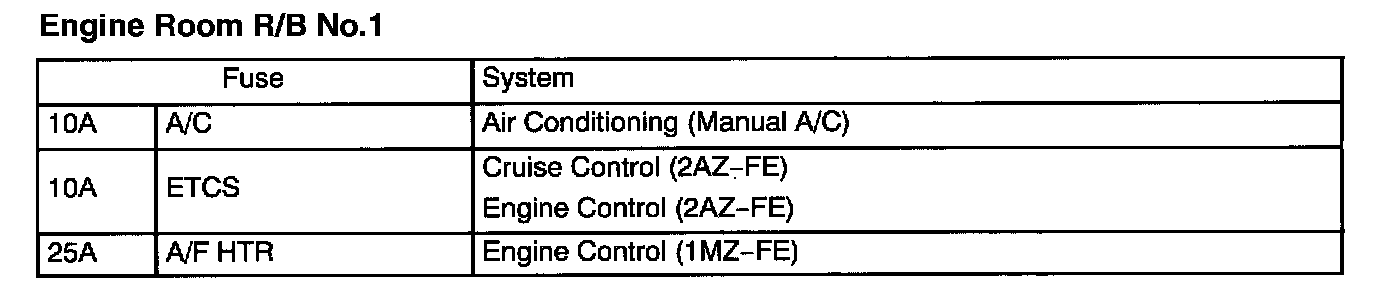

Engine Room R/B No.1:

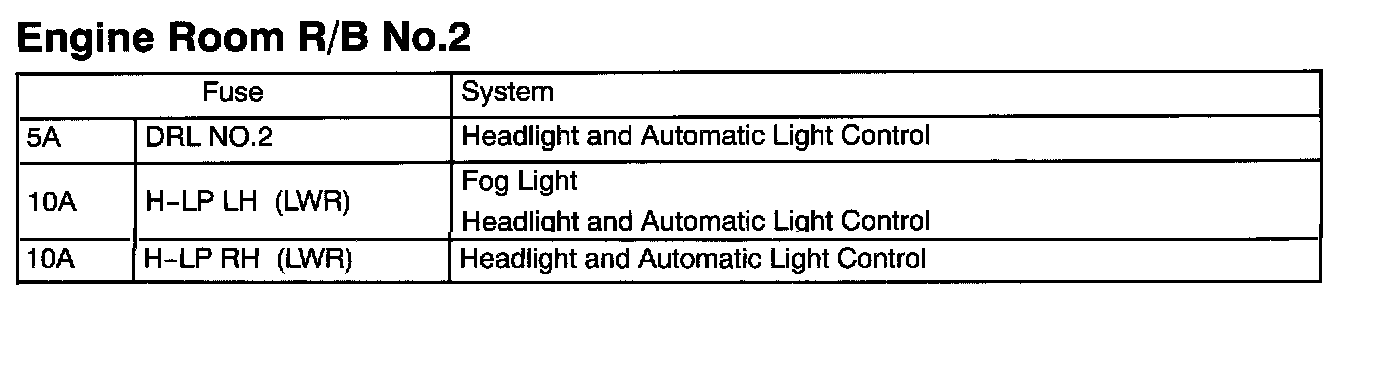

Engine Room R/B No.2 Part 1:

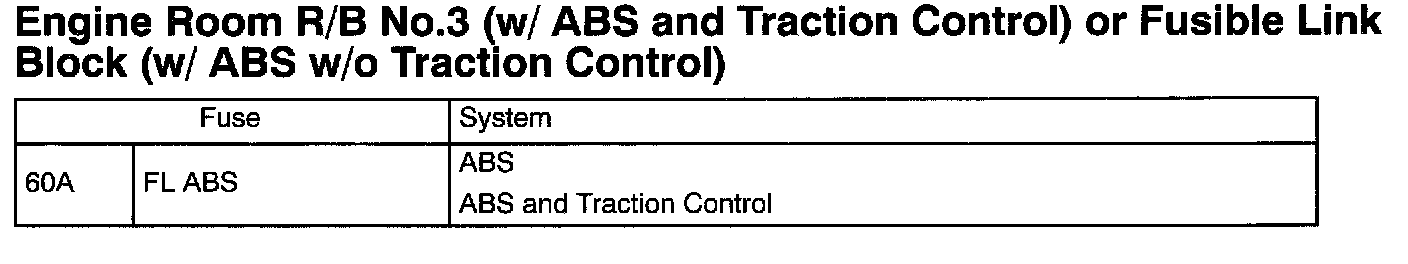

Engine Room R/B No.3:

Engine Compartment Fuse Identification

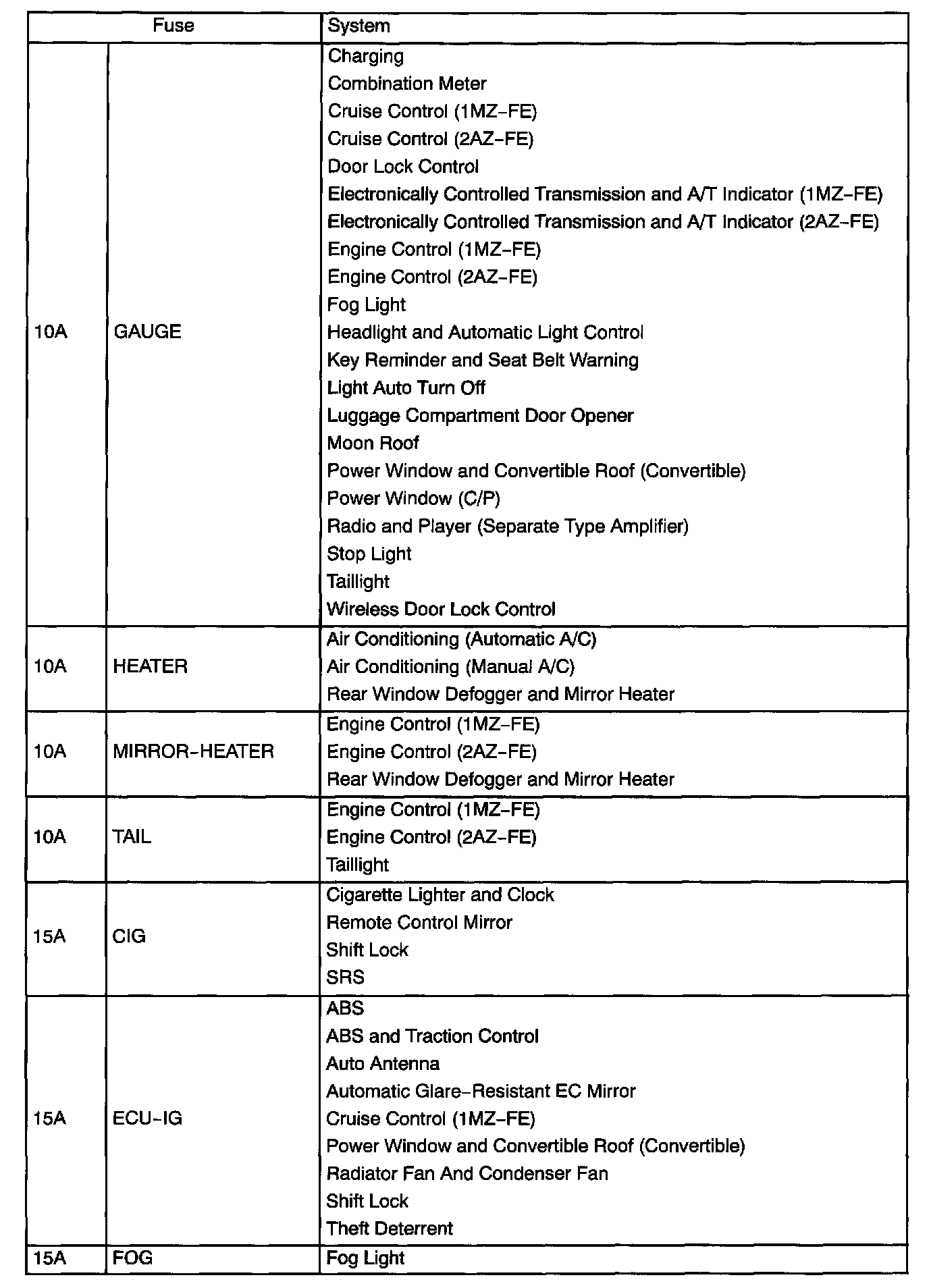

Instrument Panel J/B Part 1:

Instrument Panel J/B Part 2:

Instrument Panel J/B Part 3:

Interior Panel Fuse Identification
