Multiple Junction Connector: Application and ID

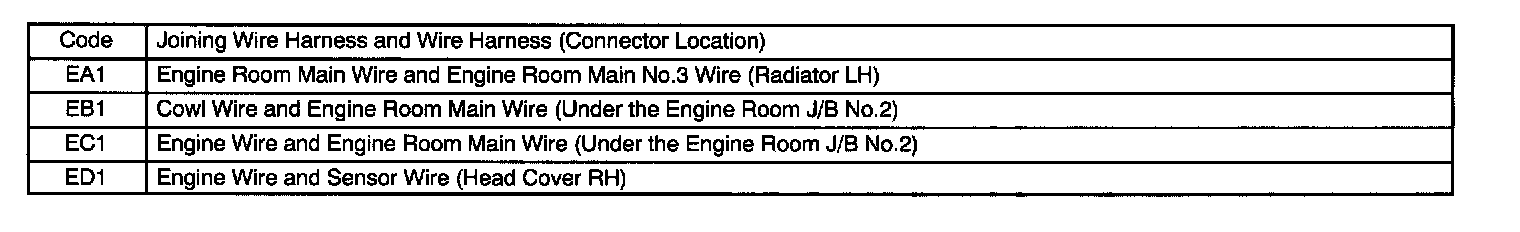

EA1 - ED1:

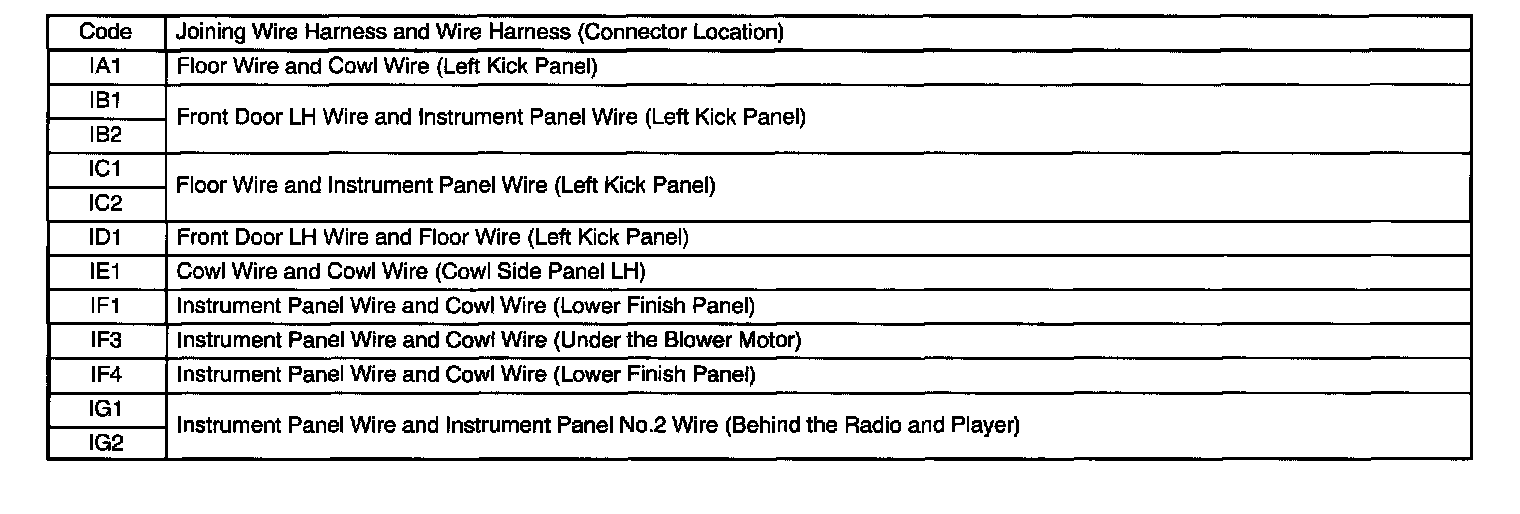

IA1 - IG2:
IH1 - IN1:

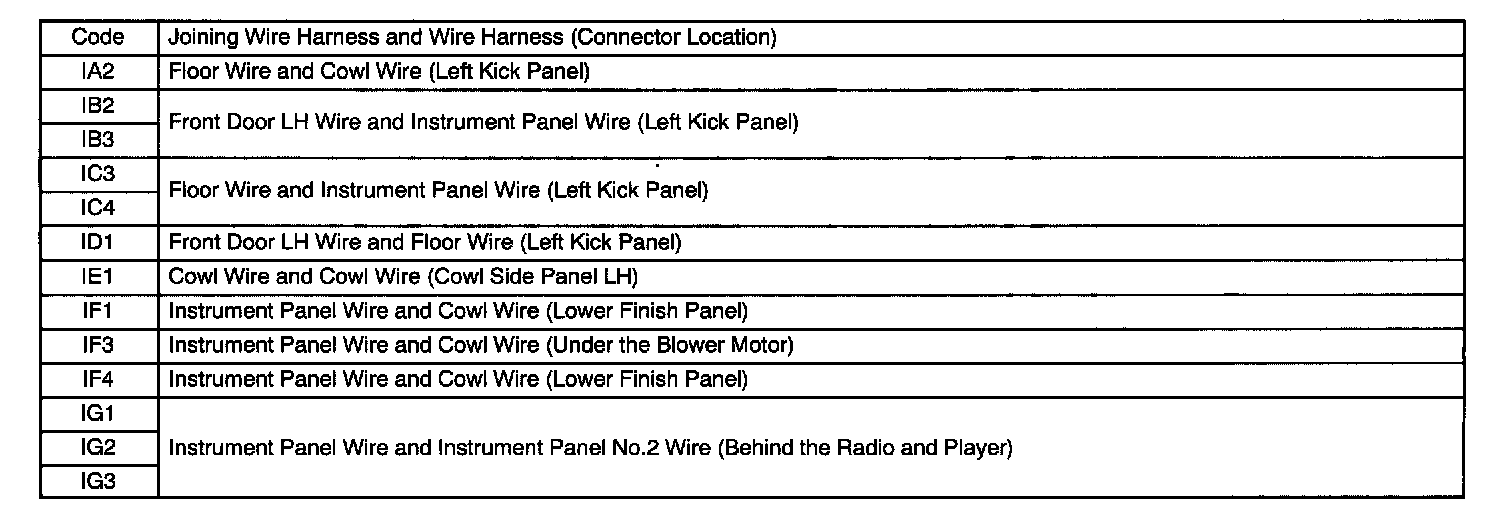

IA2 - IG3:
IH1 - IN1:

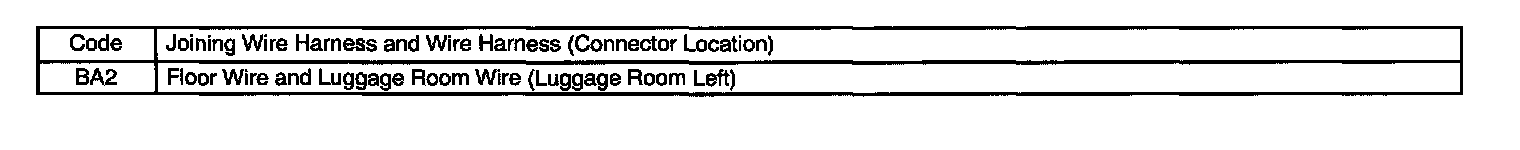

BA2:
BA2 - BC1:

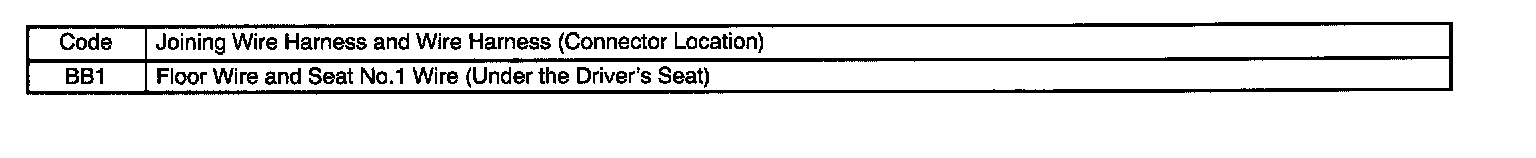

BB1:
