Multiple Junction Connector: Diagrams

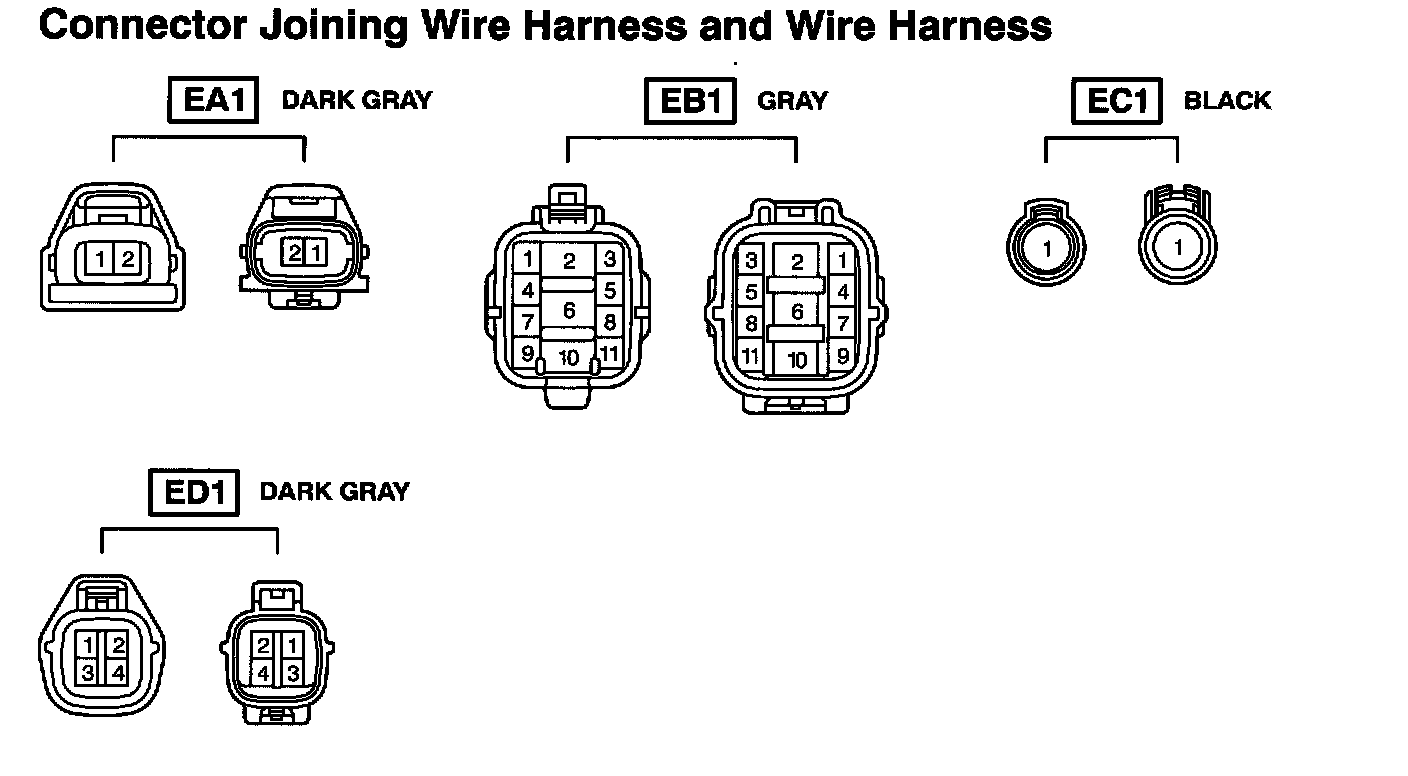

EA1 - ED1:

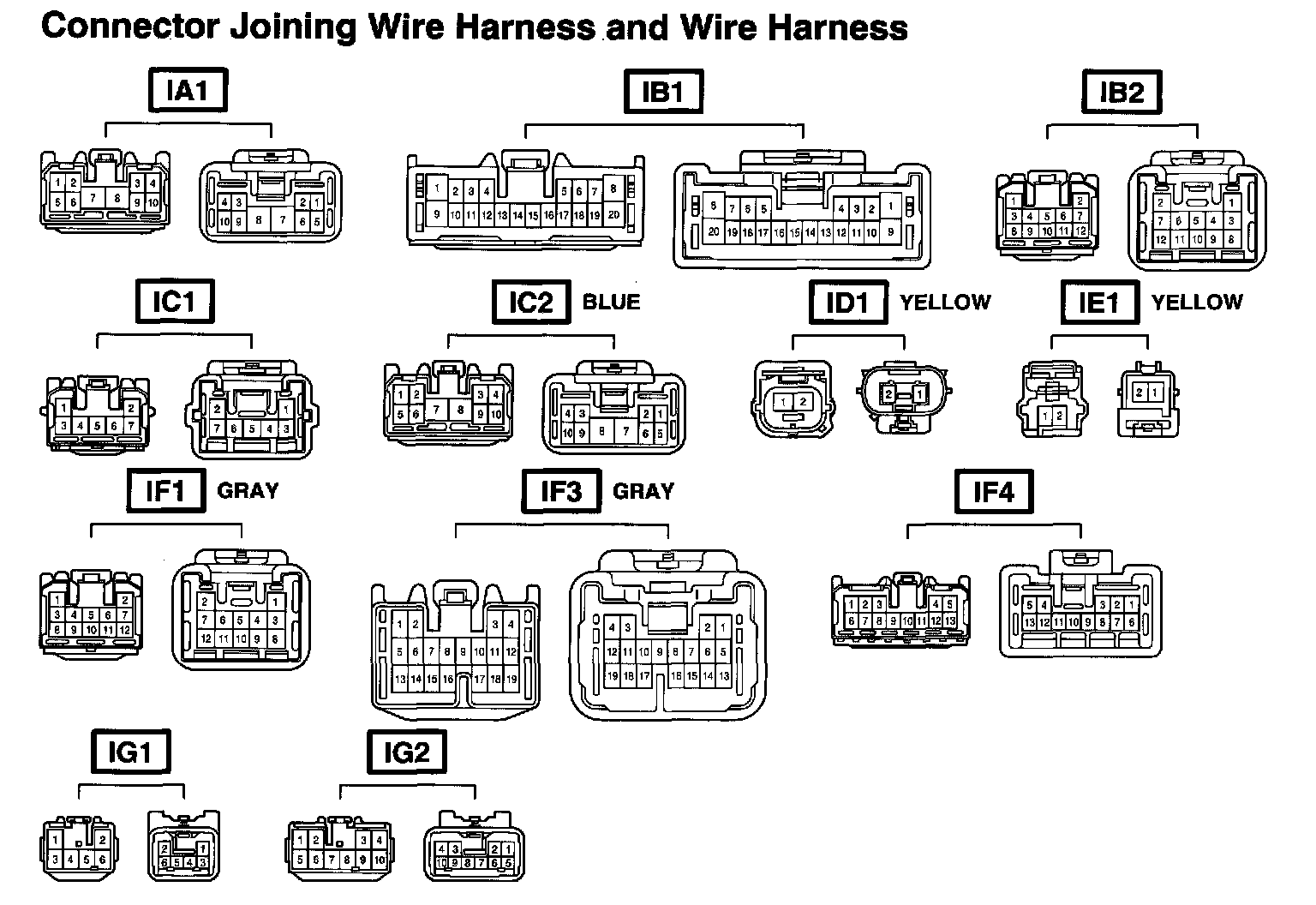

IA1 - IG2:

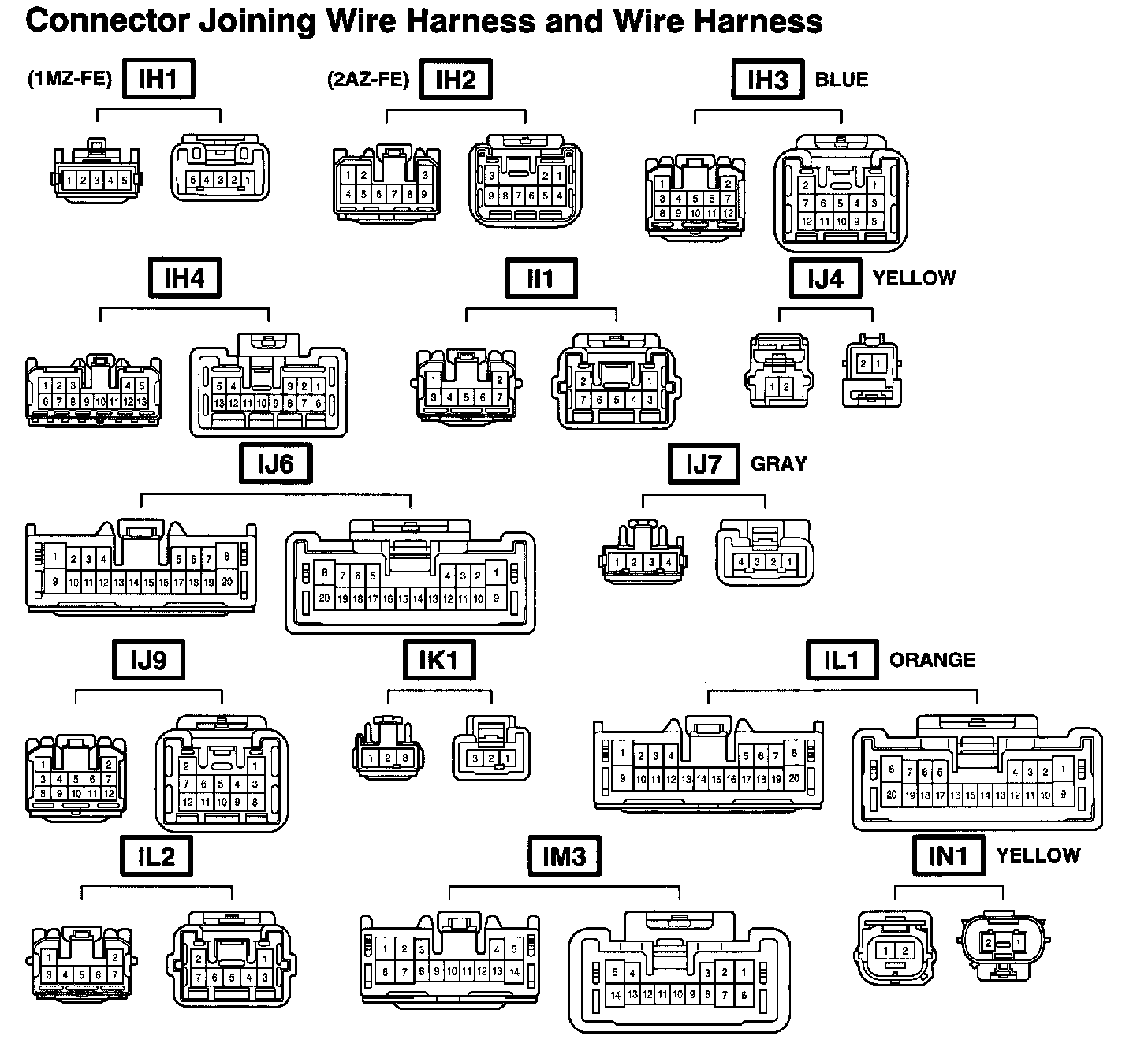

IH1 - IN1:

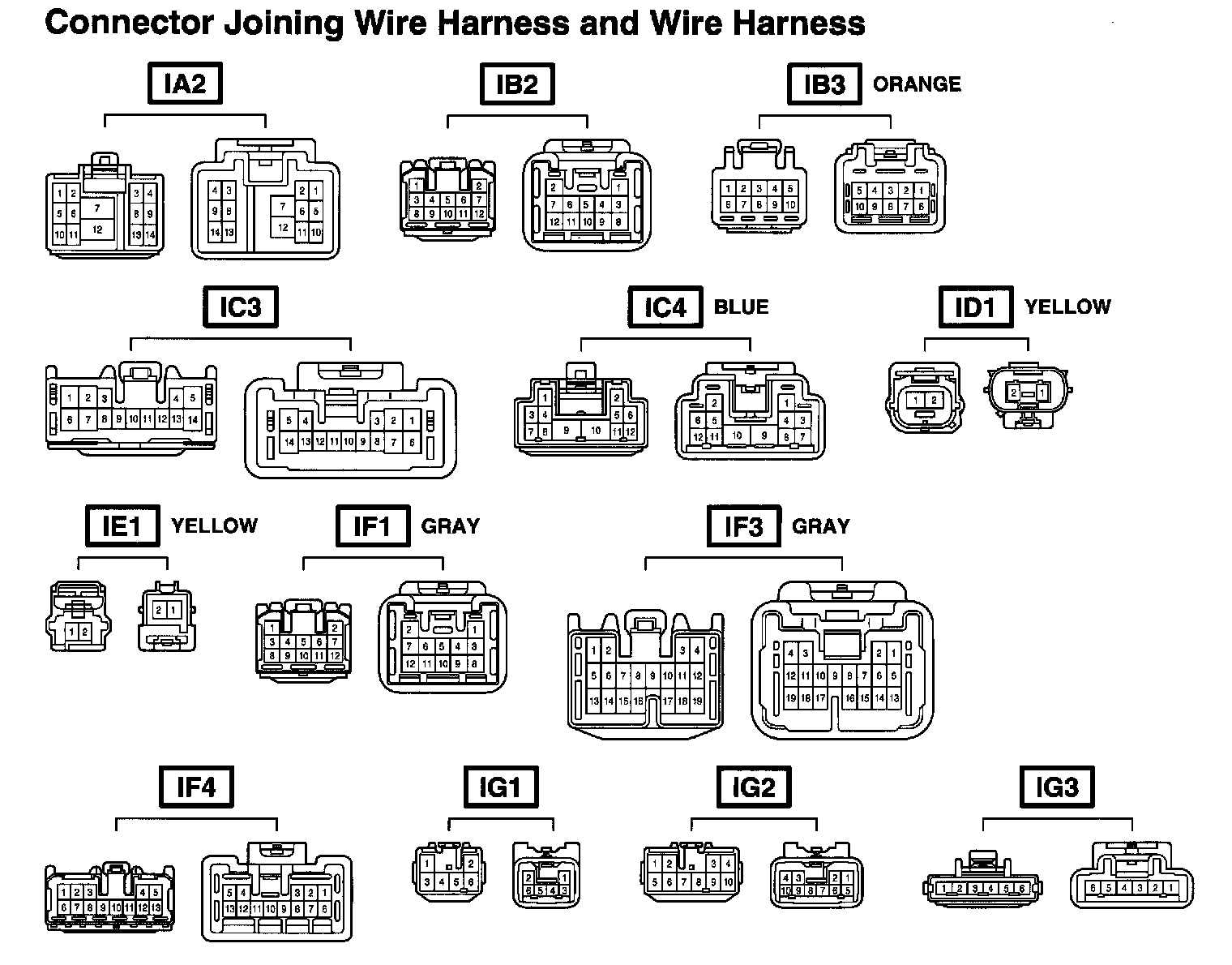

IA2 - IG3:

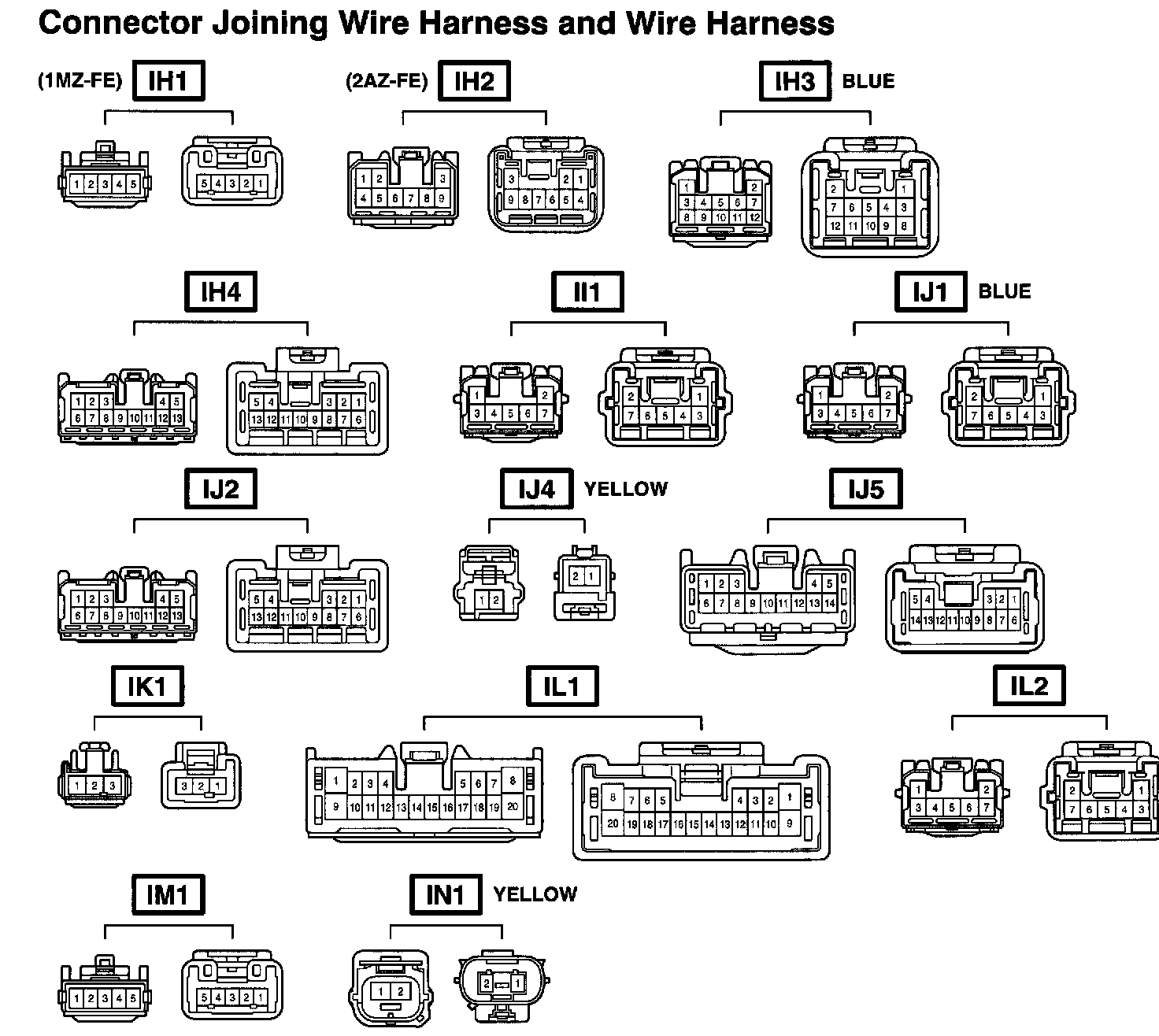

IH1 - IN1:
BA2:
BA2 - BC1:
BB1:
