Canada - Fuel System - MIL ON/Multiple DTC's Set

Bulletin
TSB1205R

Issue Date
2003-12-02

Market
Canada

Title
M.I.L."ON" DTC P2102, P2103, P2111, P2112 OR P2119

Component
Engine Mechanical

Models
'03 Camry

TSB REVISION NOTICE:
January 07, 2005: Intake Manifold Gasket Part Number Added.
December 20, 2004: Part numbers for the Intake Air Surge Tank have been updated.
Previous versions of this TSB should be discarded.

INTRODUCTION:
Under certain driving conditions when the ambient temperature is below 32°F (0°C) some 2003 model year Camry vehicles with the 1MZ-FE engine may exhibit a M.I.L. "ON" condition with DTC P2102, P2103, P2111, P2112 or P2119 stored in the ECM memory. To improve cold weather performance and reduce the possibility for M.I.L. "ON," the Throttle Body Assembly, Throttle Body Gasket and Intake Air Surge Tank have been updated.

APPLICABLE VEHICLES:
- 2003 model year Camry vehicles with 1MZ-FE that exhibits M.I.L. "ON" with DTC P2102, P2103, P2111, P2112 or P2119 in ambient temperatures below 32°F (0°C).

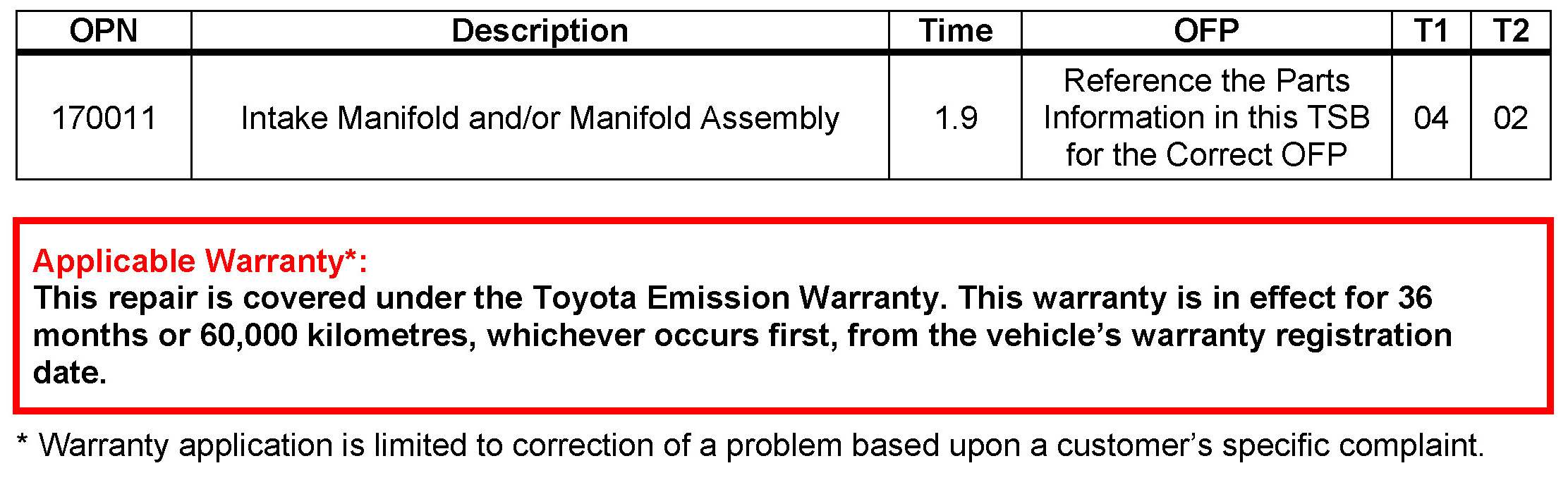

WARRANTY INFORMATION:







PARTS INFORMATION:

REPAIR PROCEDURE:
Refer to ETAS or the appropriate Repair Manual procedure for diagnosis of the specific MIL "ON" DTC present. Confirm that the ambient temperature during the MIL "ON" was below 32°F (0°C). After performing diagnosis for the specific MIL "ON" DTC, if no trouble is found, proceed with replacement of the Throttle Body Assembly, Throttle Body Gasket and Intake Air Surge Tank utilizing the current part numbers provided in the Parts Information table.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
