Canada - Interior - Console Lid Latch Replacement Information

Bulletin
1227

Issue Date
2003-06-05


Reference
BC-03-008

Model
Camry

Year Range
2003, 2002

Market
Canada

Component
BC

Subject:

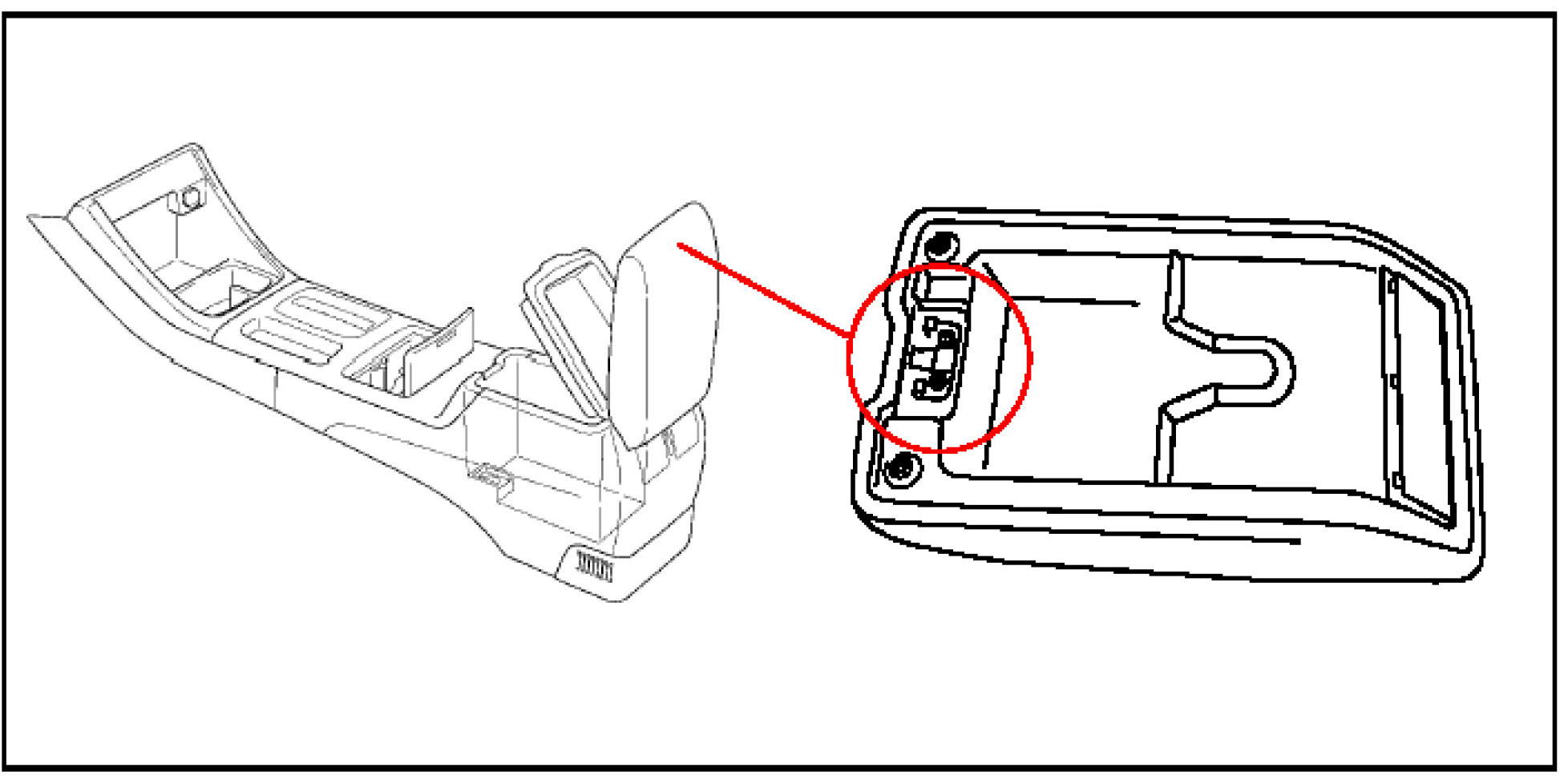

CENTER CONSOLE LID LATCH







In the event the center console latch requires replacement, do not replace the lid assembly. The center console lid latch is now available as a service part.

APPLICABLE VEHICLES: 2002 - 2003 model year Camry vehicles.

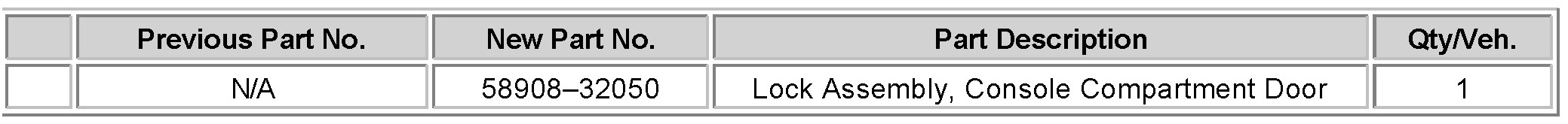

PARTS INFORMATION:

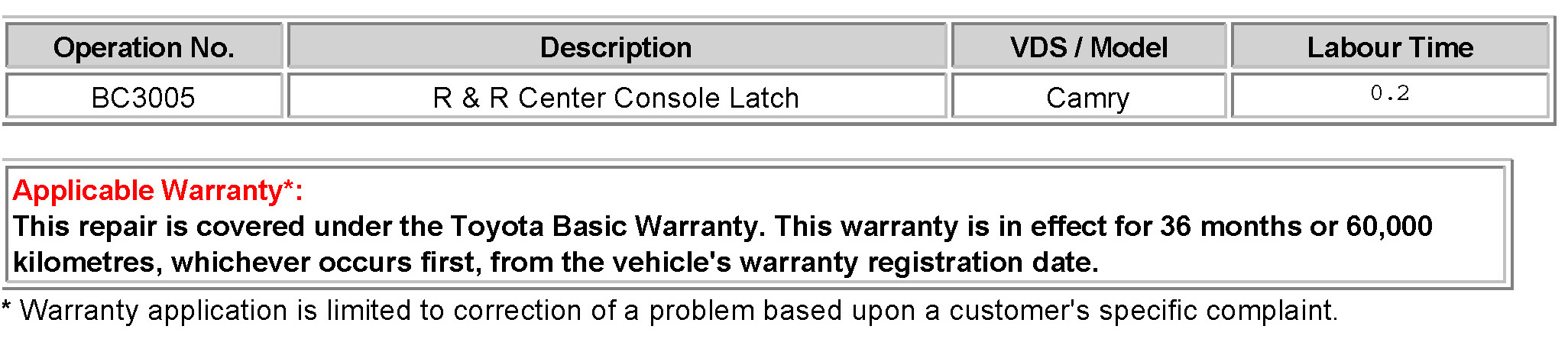

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
