Fuel System - MIL ON/Multiple DTC's Set
ENGINEEG002-03
REVISED
Title:
M.I.L. "ON" DTC P2102, P2103, P2111, P2112 OR P2119
Models:
'03 Camry (1MZ- FE)
February 20, 2003
TSB REVISION NOTICE:
December 20, 2004: Part numbers for the Intake Air Surge Tank have been updated.
The previous TSB should be discarded.
TSB UPDATE NOTICE:
This TSB updates EG009-02 for the 2003 Camry.
Introduction
Under certain driving conditions when the ambient temperature is below 32°F (0°C) some 2003 model year Camry vehicles with the 1MZ-FE engine may exhibit a M.I.L. ON" condition with DTC P2102, P2103, P2111, P2112 or P2119 stored in the ECM memory. To improve cold weather performance and reduce the possibility for M.I.L. "ON," the Throttle Body Assembly, Throttle Body Gasket and Intake Air Surge Tank have been updated.
Applicable Vehicles
^ 2003 model year Camry vehicles with 1MZ-FE engine that exhibit M.I.L. "ON" with DTC P2102, P2103, P2111, P2112 or P2119 in ambient temperatures below 32°F (0°C).
Warranty Information

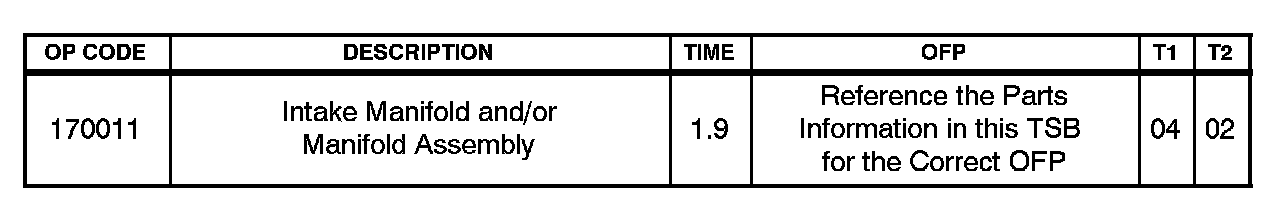

Applicable Warranty*:
This repair is covered under the Toyota Federal Emissions Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
For California specification vehicles registered and operated in California, Massachusetts or Vermont, this repair is covered under the California Emissions Warranty, which is 84 months or 70,000 miles, whichever comes first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

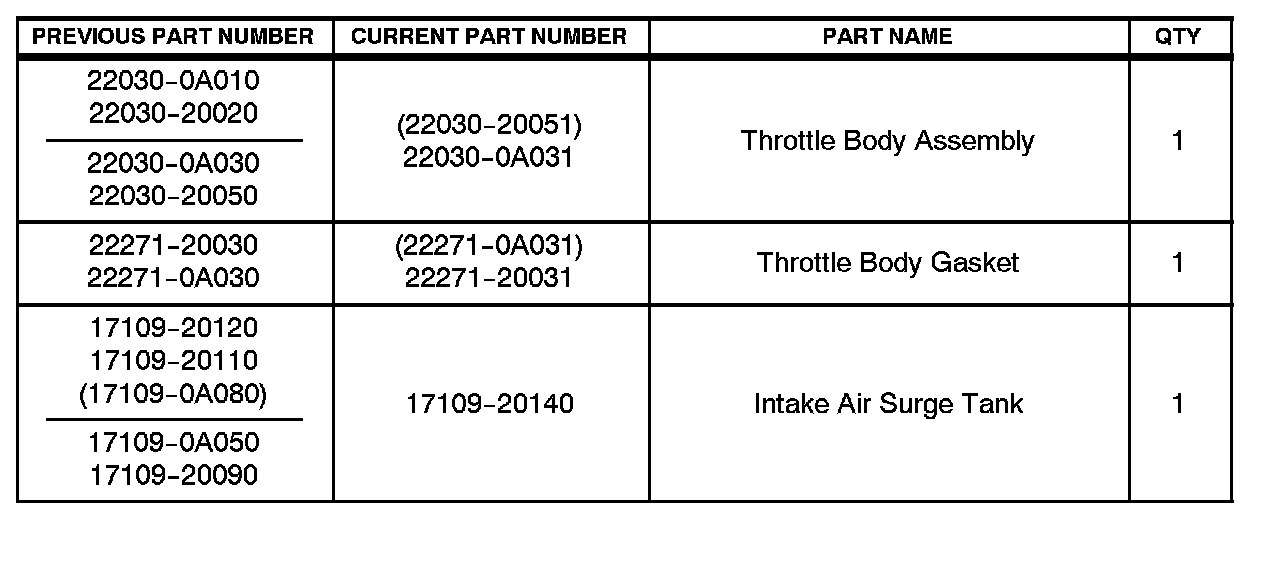

Parts Information
Repair Procedure
Refer to the Technical Information System (TIS) or the appropriate Repair Manual procedure for diagnosis of the specific M.I.L. ON" DTC present. Confirm that the ambient temperature during the M.l.L. "ON" was below 32°F (0°C). After performing diagnosis for the specific M.I.L. "ON" DTC, if no trouble is found, proceed with replacement of the Throttle Body Assembly, Throttle Body Gasket and Intake Air Surge Tank utilizing the current part numbers provided in the Parts Information table.
