Steering - Steering Column Noise When Turning

STEERING
ST002-03

June 13, 2003

Title:
STEERING COLUMN NOISE

Models:
'02 - '03 Camry

Introduction

Some 2002 - 2003 model year Camry (NAP) vehicles may exhibit a low frequency noise when the steering wheel is turned at low speeds due to friction between the intermediate shaft and grommet. Grease application has been improved.

Applicable Vehicles
^ 2002 - 2003 model year Camry (NAP) vehicles produced BEFORE the Production Change Effective VINs shown below.





Production Change Information

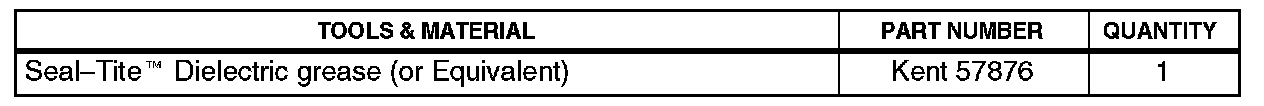

Required Tools & Material

NOTE:
Seal-Tite(TM) may be ordered by calling Kent Industries at 1-800-654-6333.





Warranty Information

Applicable warranty*

This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure





Using the applicator tip, apply grease between the intermediate shaft and grommet.
