B1142

DTC B1142 Door Side Airbag Sensor RH Malfunction

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The door side airbag sensor RH circuit consists of the airbag sensor assembly and door side airbag sensor RH.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1142/B1143/34 is recorded when a malfunction is detected in the door side airbag sensor RH circuit.

Wiring Diagram:

Step 1 - 3:

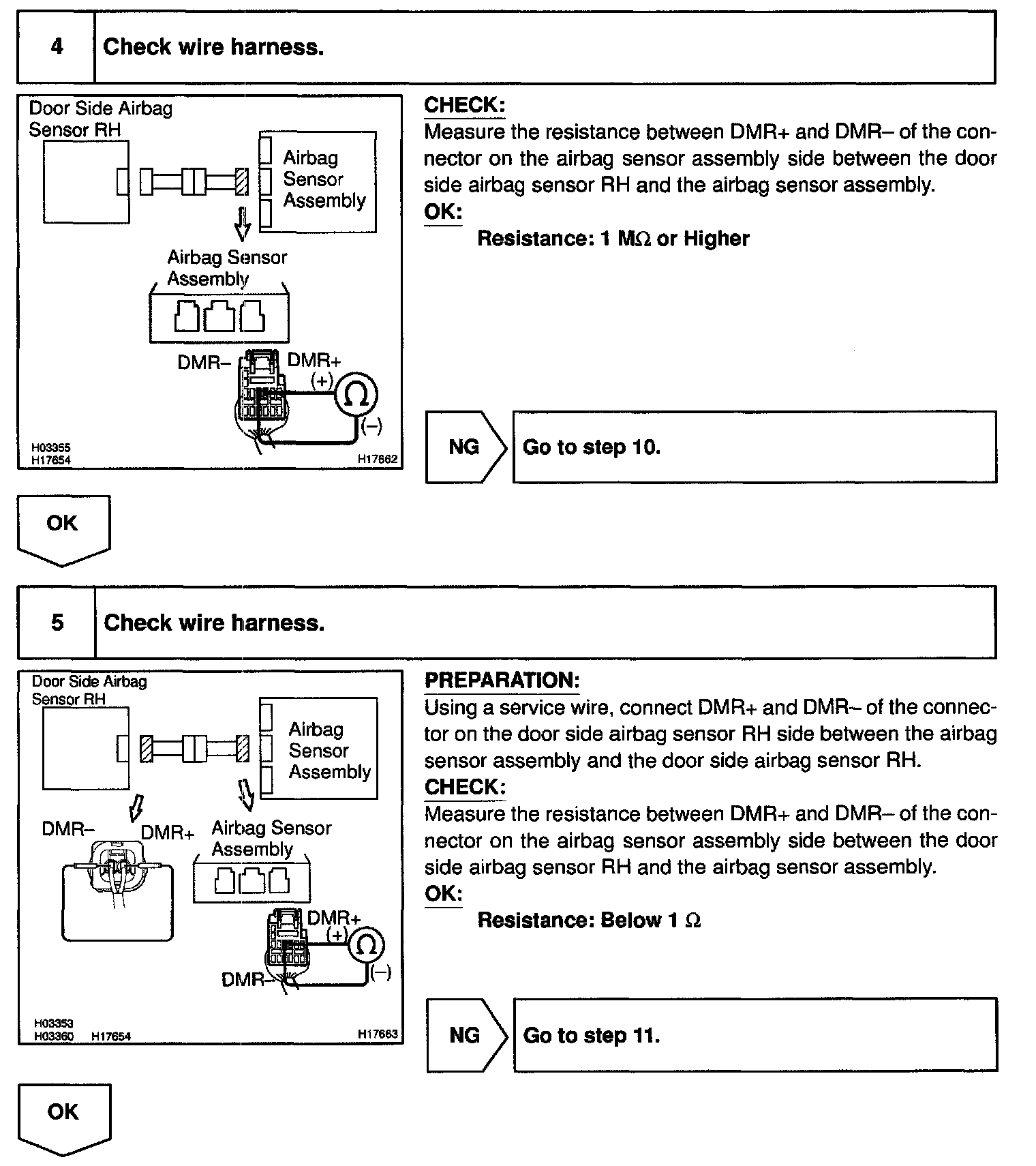

Step 4 - 5:

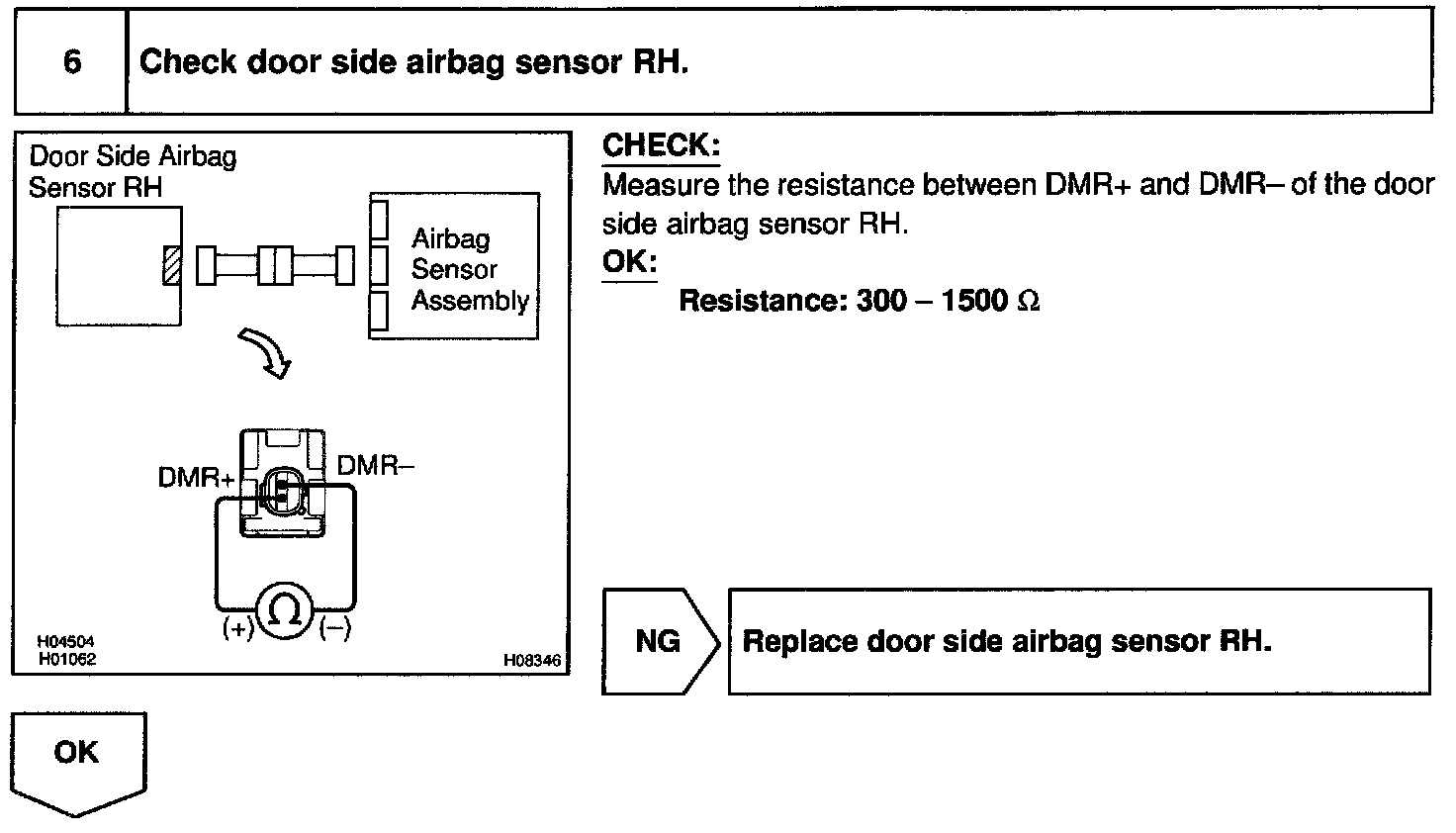

Step 6:

Step 7:

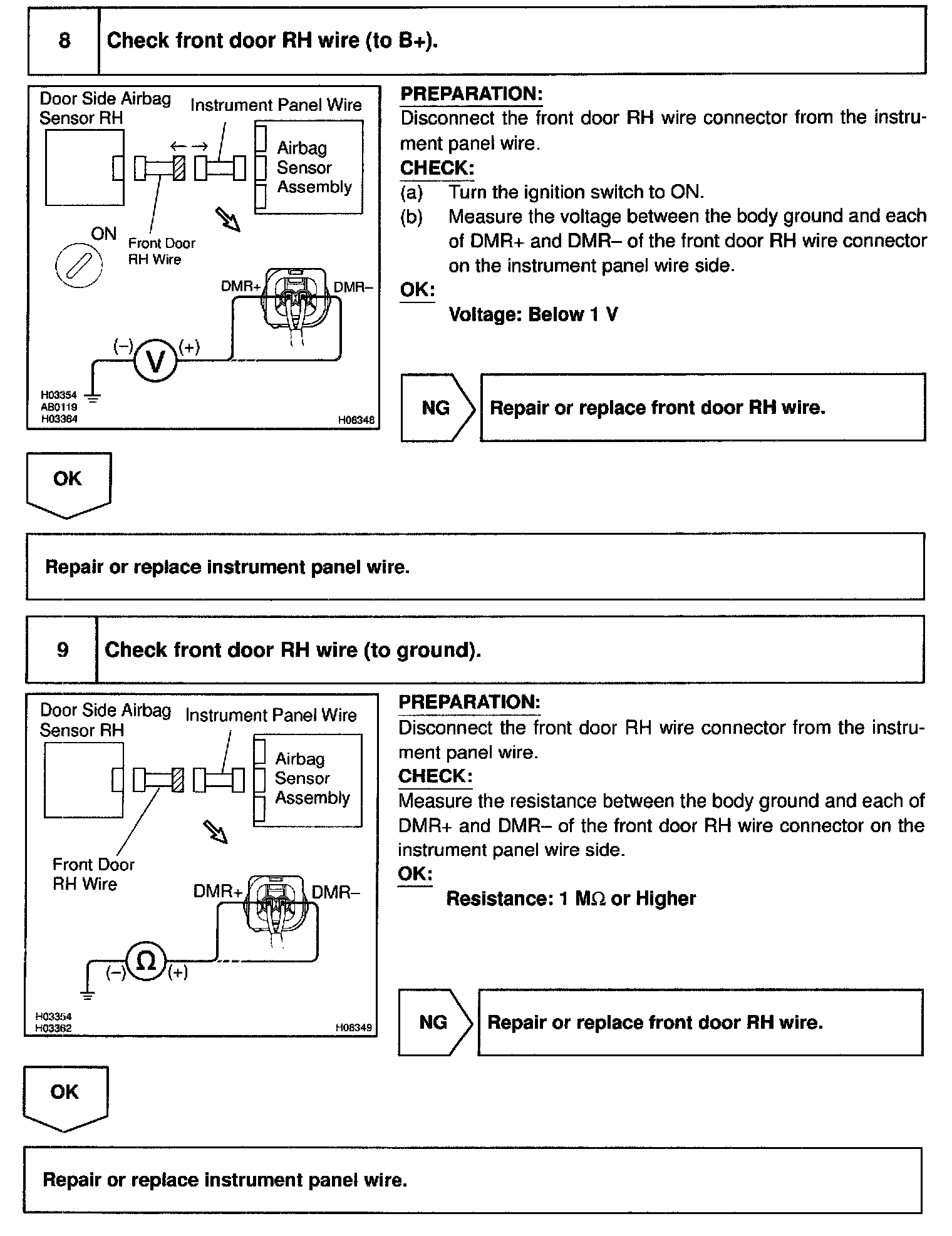

Step 8 - 9:

Step 10:

Step 11:

INSPECTION PROCEDURE
