C0246

DTC C0246 Right Rear Solenoid Valve Faulty

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

HINT:
- DTC No. C0226/21 is for the right front solenoid valve.
- DTC No. C0236/22 is for the left front solenoid valve.
- DTC No. C0246/23 is for the right rear solenoid valve.
- DTC No. C0256/24 is for the left rear solenoid valve.

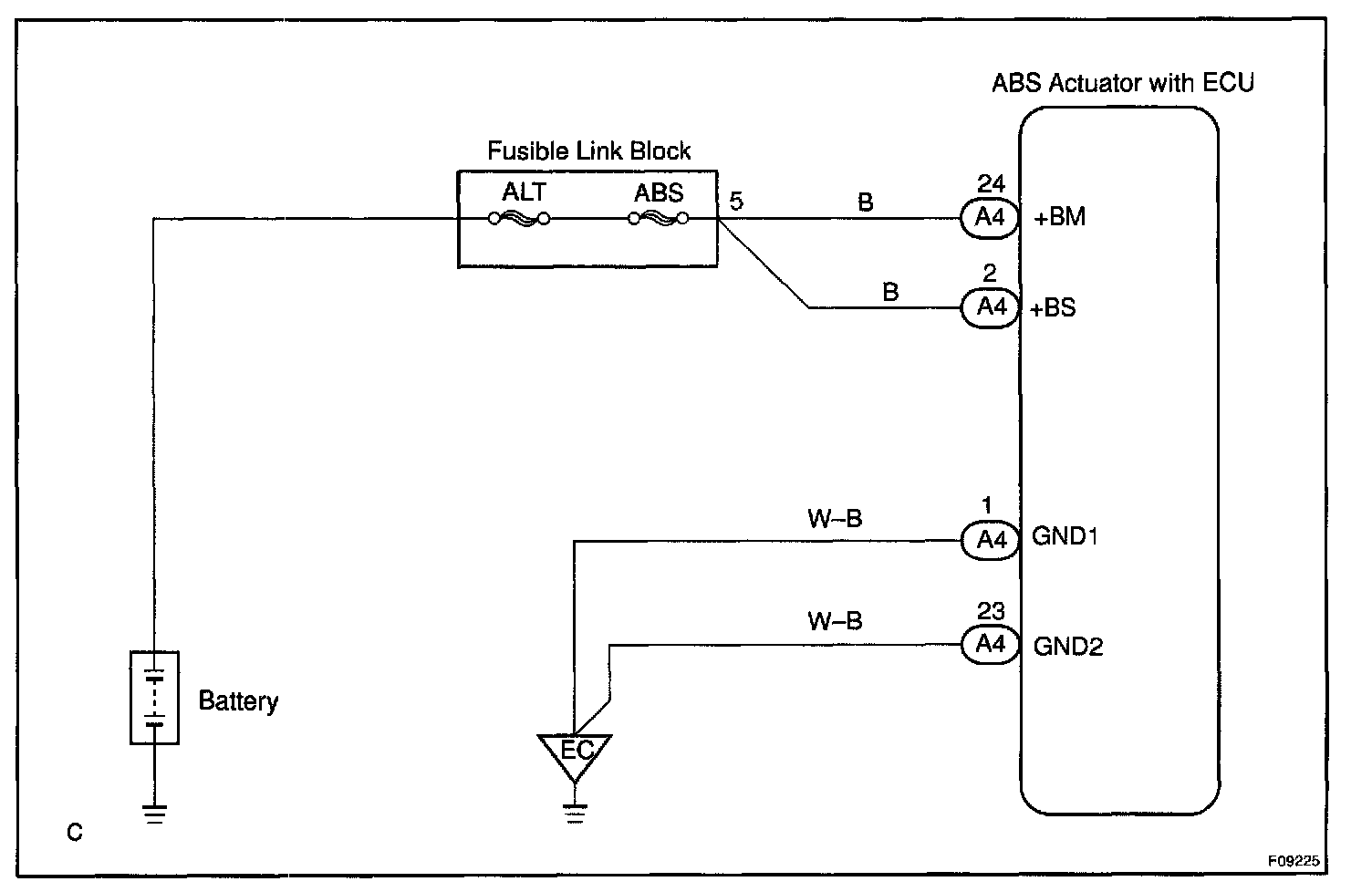

Wiring Diagram:

Step 1:

INSPECTION PROCEDURE
