ABS (Antilock Brake System)

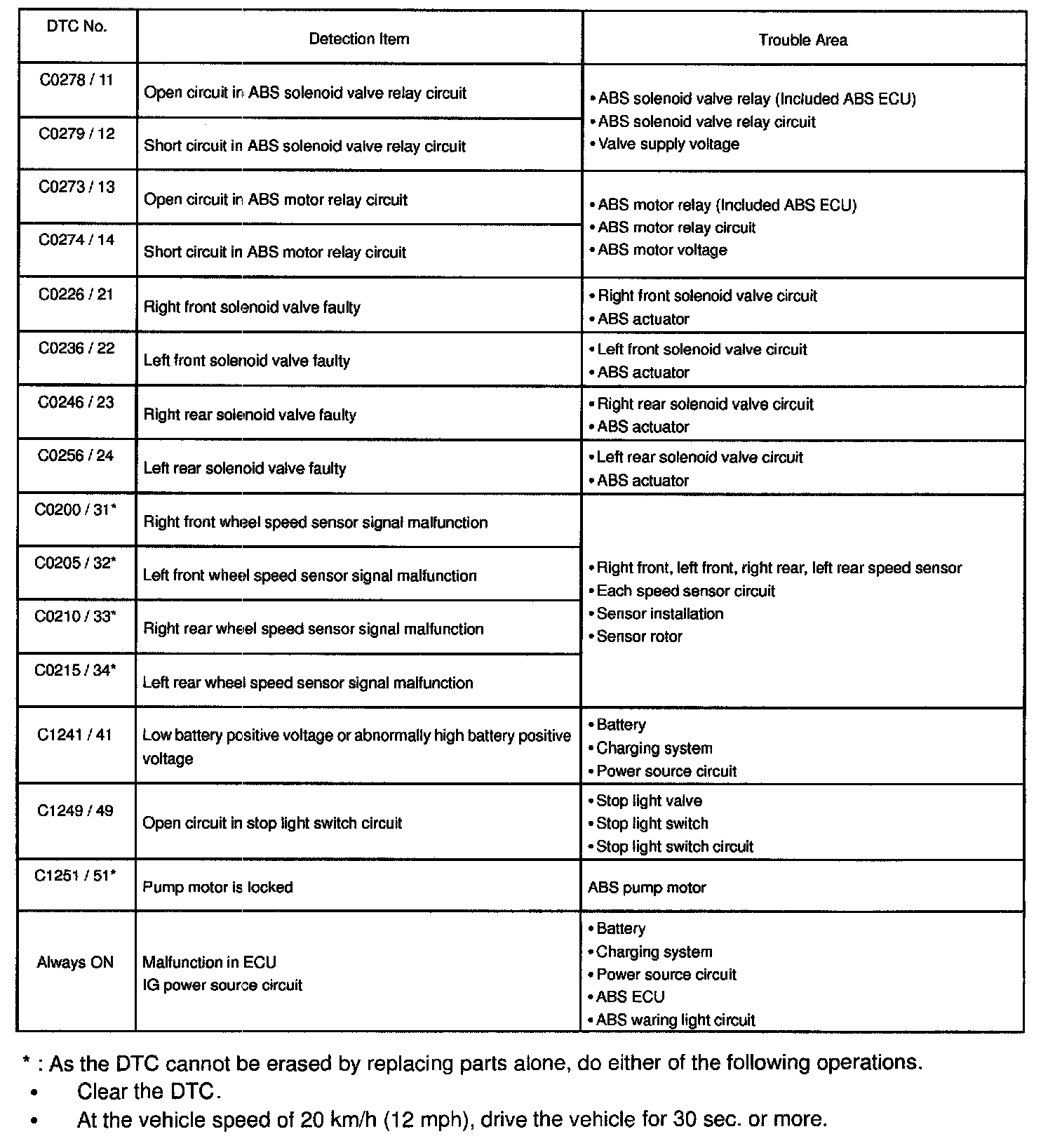

DIAGNOSTIC TROUBLE CODE CHART

C0278/11 - Always ON:

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is not found when inspecting each inspection part, inspect ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the
respective "DTC No." under "Trouble Code Diagnostic Charts".




DTC of speed sensor check function
