Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

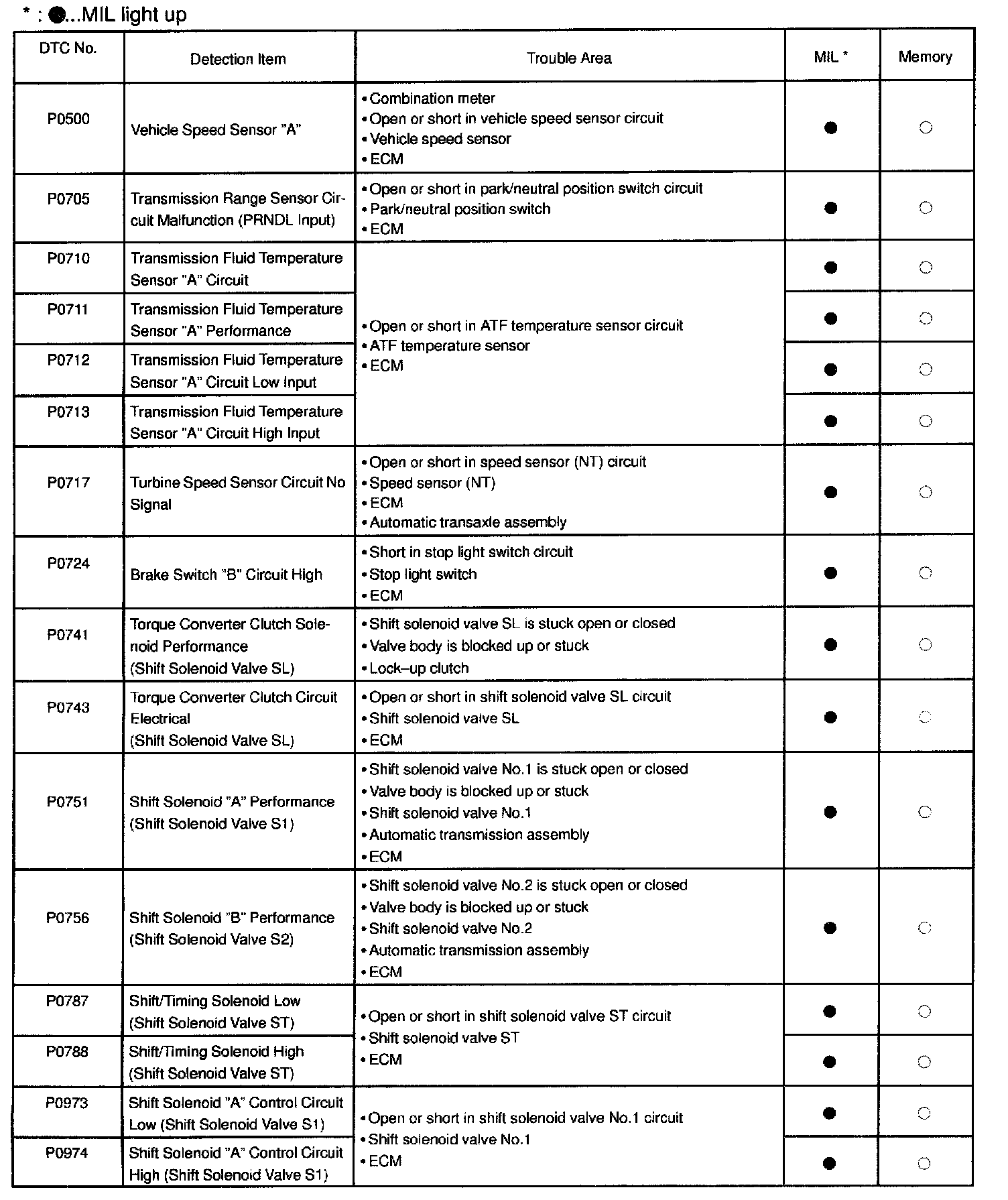

P0500 - P0974:

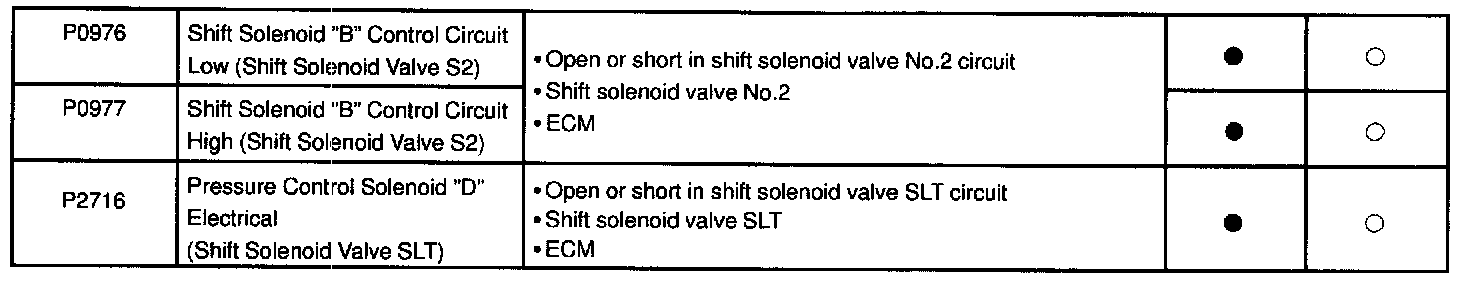

P0976 - P2716:

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table and proceed to the corresponding troubleshooting.
