Radio, Stereo, and Compact Disc

AUDIO SYSTEM

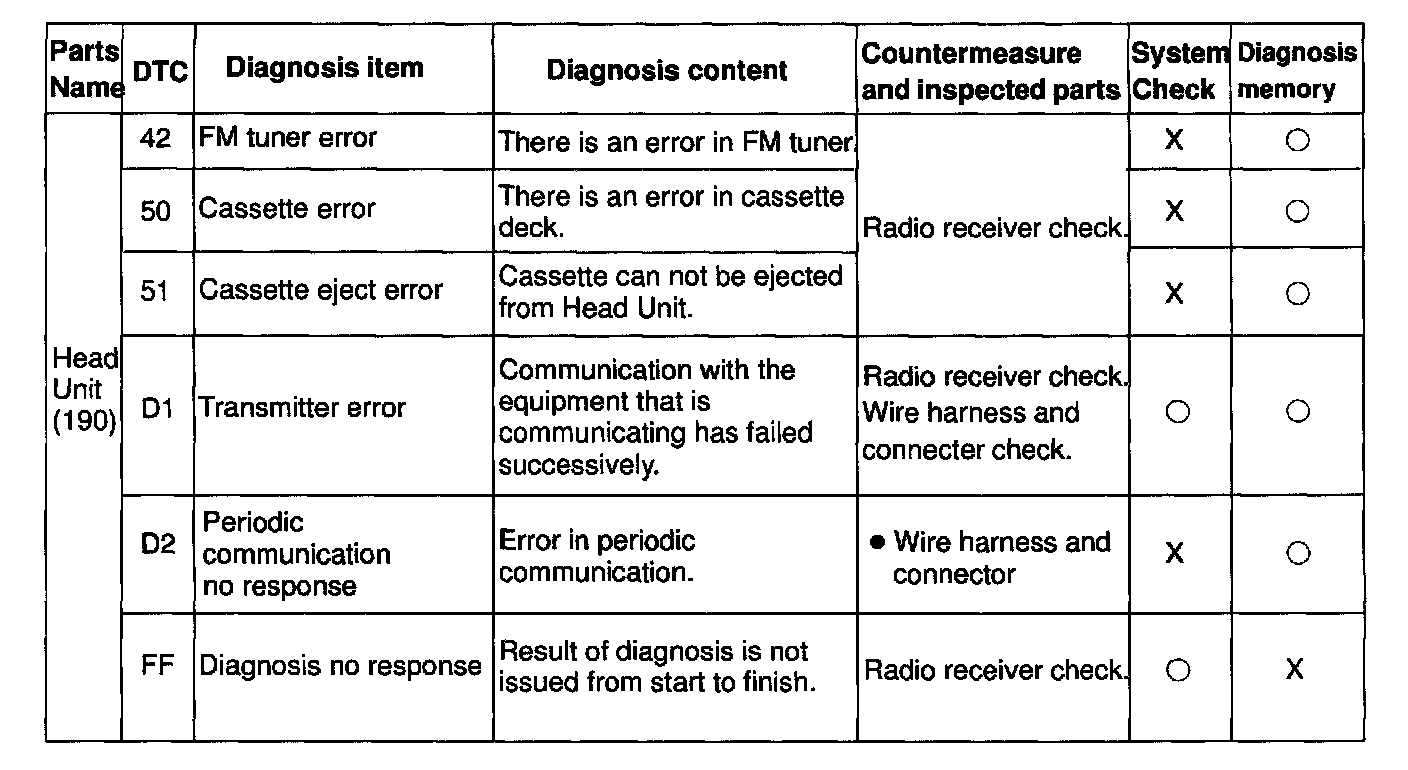

DIAGNOSIS CODE LIST
- If there is "O" in the column of system check, an error can be detected when the mode is switched to the system check mode.
- If there is "O" in the column of diagnosis mode, each unit is monitoring whether or not it has failure.

In case of detecting failure, it memorizes DTC.
