Suspension Spring ( Coil / Leaf )
Suspension Spring ( Coil / Leaf )

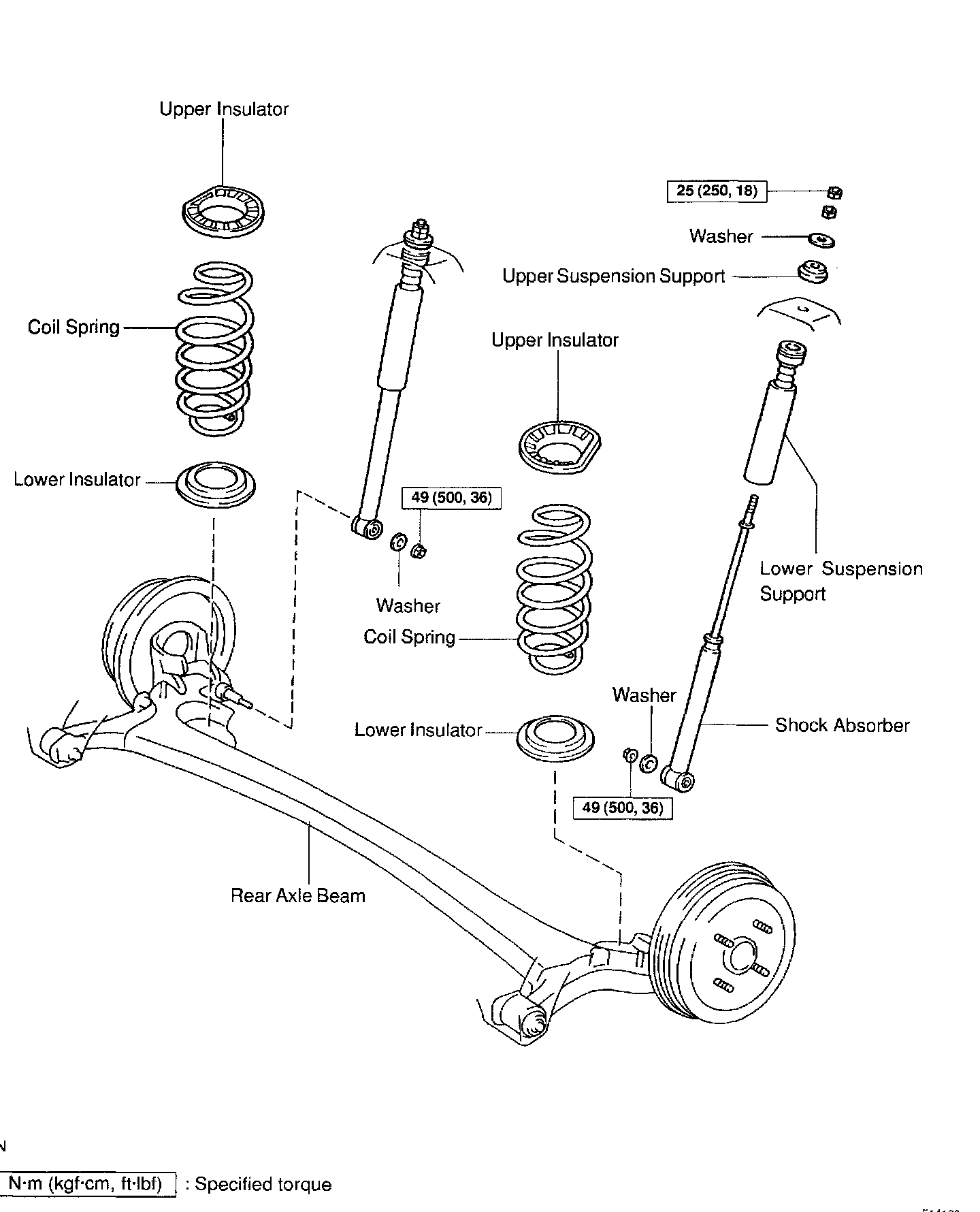

Part 1 Of 2:
Part 2 Of 2:
COIL SPRING AND REAR SHOCK ABSORBER REPLACEMENT W/ RELATED COMPONENTS
