Control Module HVAC: Testing and Inspection

AIR CONDITIONING AMPLIFIER

ON-VEHICLE INSPECTION

1. REMOVE GLOVE COMPARTMENT DOOR
2. INSPECT A/C AMPLIFIER (Engine (and ECT) ECU) CIRCUIT

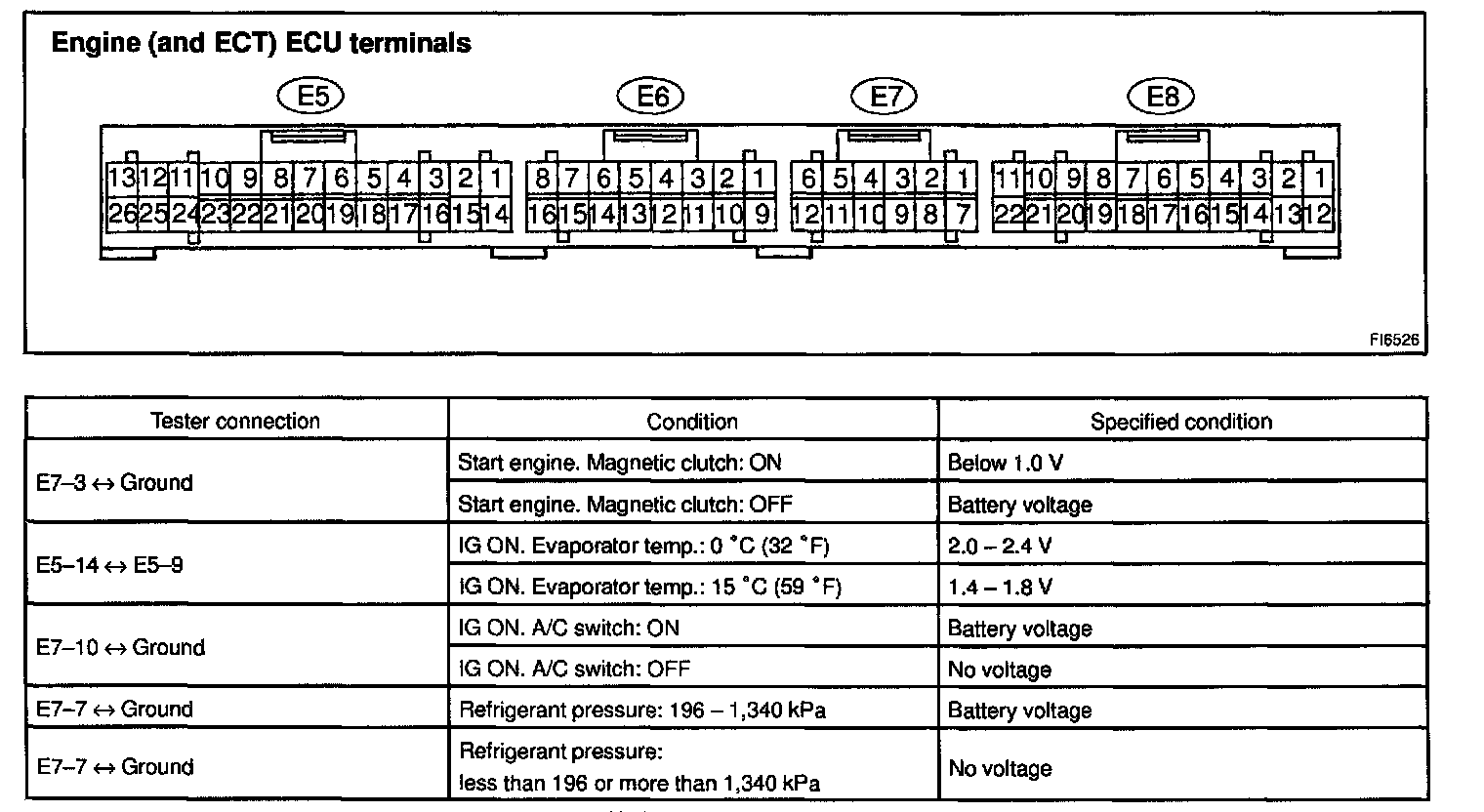

Inspect the wire harness side connector of engine (and ECT) ECU from the back side, as shown in the chart.




If the circuit is not as specified, inspect the circuits connected to other parts.
