Home >> Toyota >> 2003 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Specifications

Heating and Air Conditioning: Specifications

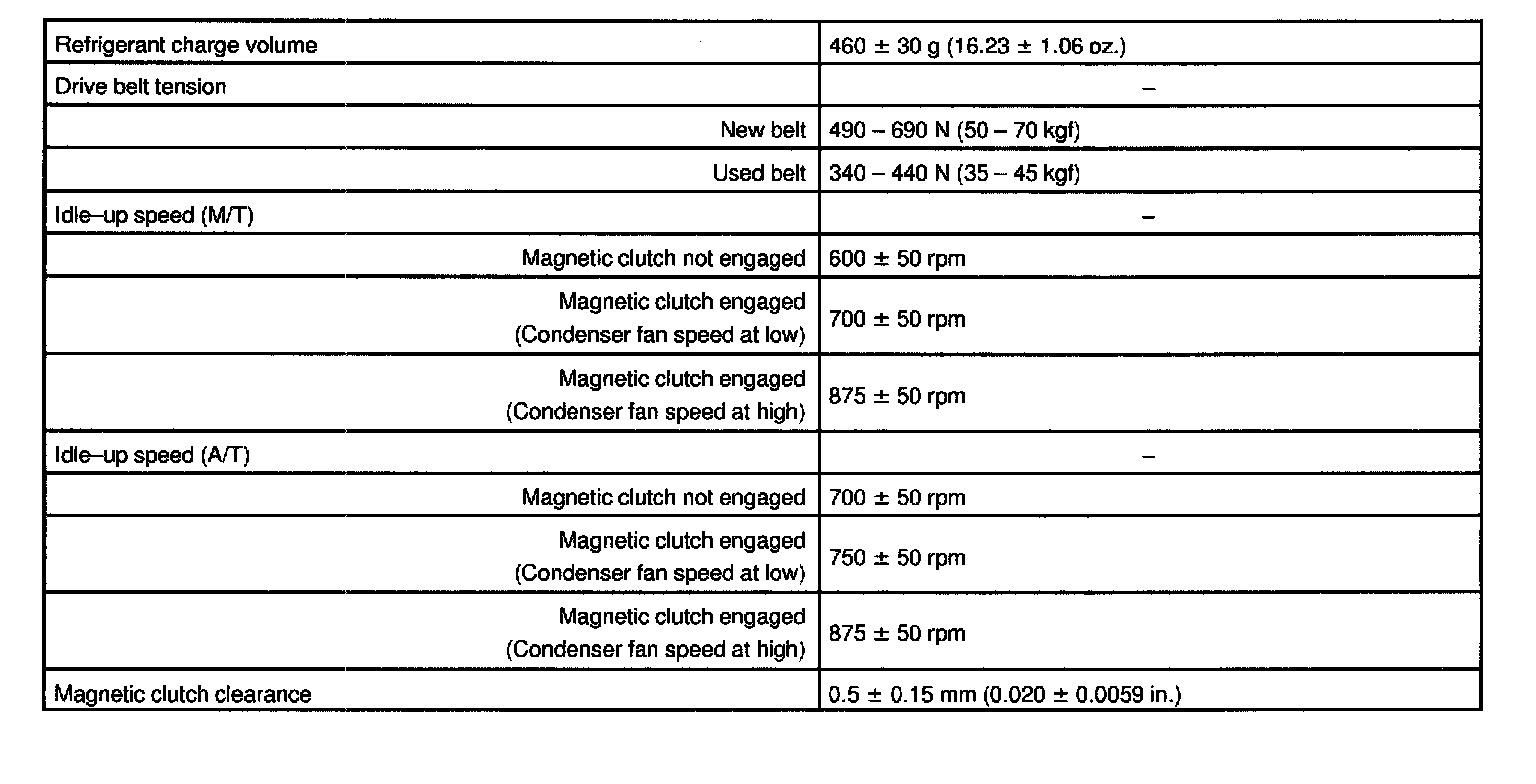

Airconditioning - Service Data:

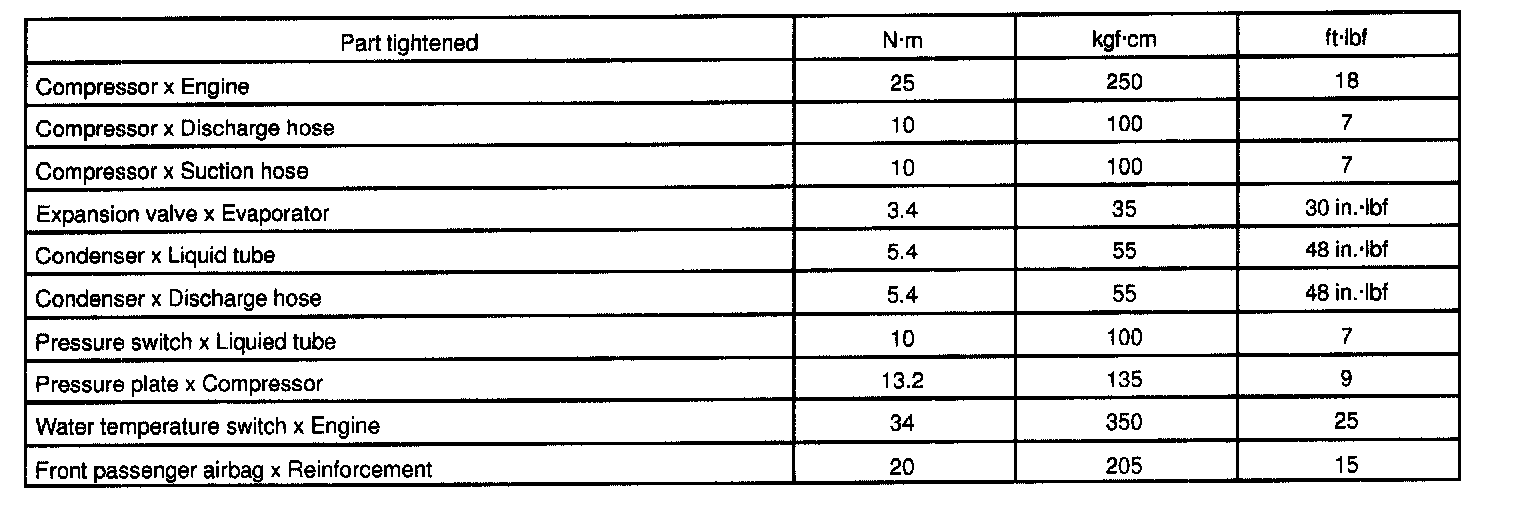

Air Conditioning Torque Specification:
