Headlamp: Testing and Inspection

INSPECTION

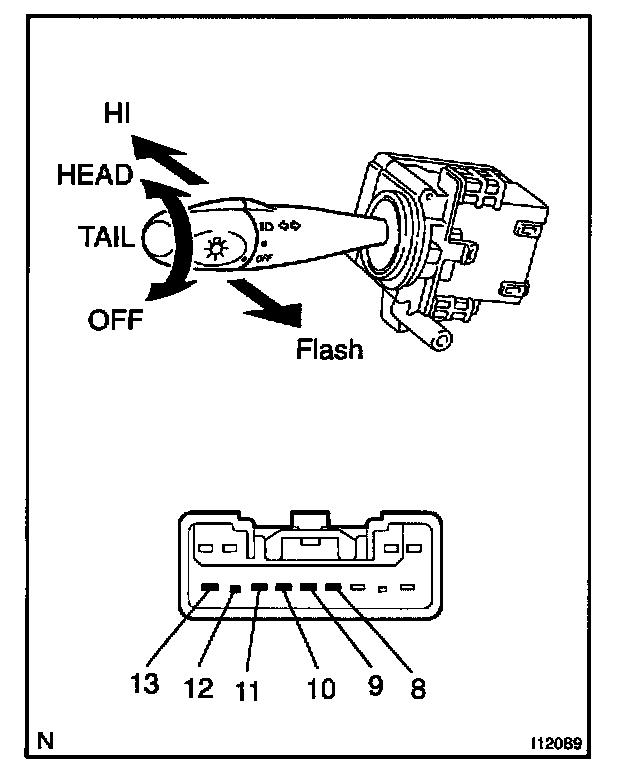

1. INSPECT LIGHT CONTROL SWITCH CONTINUITY

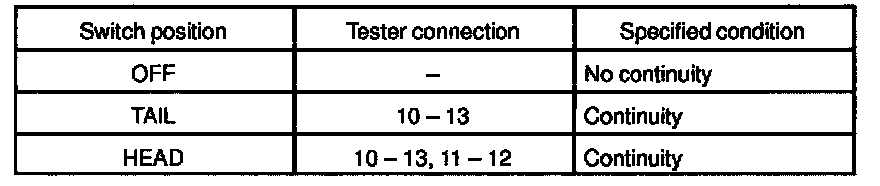

If continuity is not as specified, replace the switch.







2. INSPECT HEADLIGHT DIMMER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







3. Puerto Rico models:
W/ Wireless door lock control system:
INSPECT HEADLIGHT CONTROL RELAY CONTINUITY
If continuity is not as specified, replace the relay.







4. Puerto Rico models:
W/ Wireless door lock control system:
INSPECT TAILLIGHT CONTROL RELAY CONTINUITY
If continuity is not as specified, replace the relay.







5. W/ Daytime running light system:
INSPECT DAYTIME RUNNING LIGHT MAIN RELAY CIRCUIT
Disconnect the connector from the relay and inspect the connector on the wire harness side.
If circuit is specified, try replacing the relay with a new one.
If circuit is not as specified, inspect the circuits connected to other parts.







6. W/ Daytime running light system:
INSPECT DAYTIME RUNNING LIGHT NO.5 RELAY CONTINUITY
If continuity is not as specified, replace the relay.




7. INSPECT LIGHT AUTO TURN OFF BUZZER
Check that the buzzer sound when driver's door is opened and turn light control switch position TAIL.
If operation is not as specified, replace the combination meter.
