Multiple Junction Connector: Locations
EA - EC, EA1 - EB1:

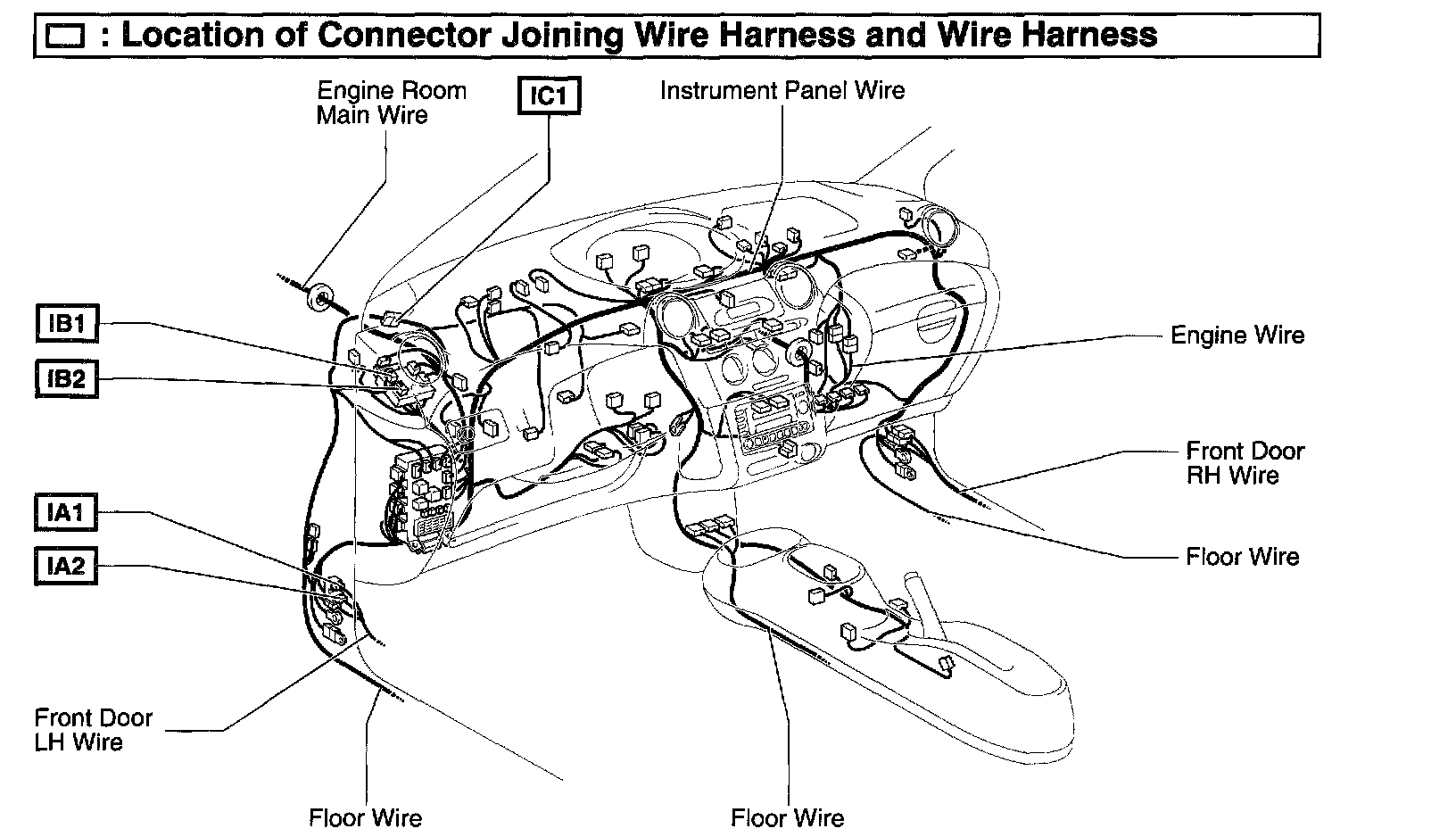

IA1 - IC1:
ID1 - IH1:
BA1 - BD1, BG - BI:

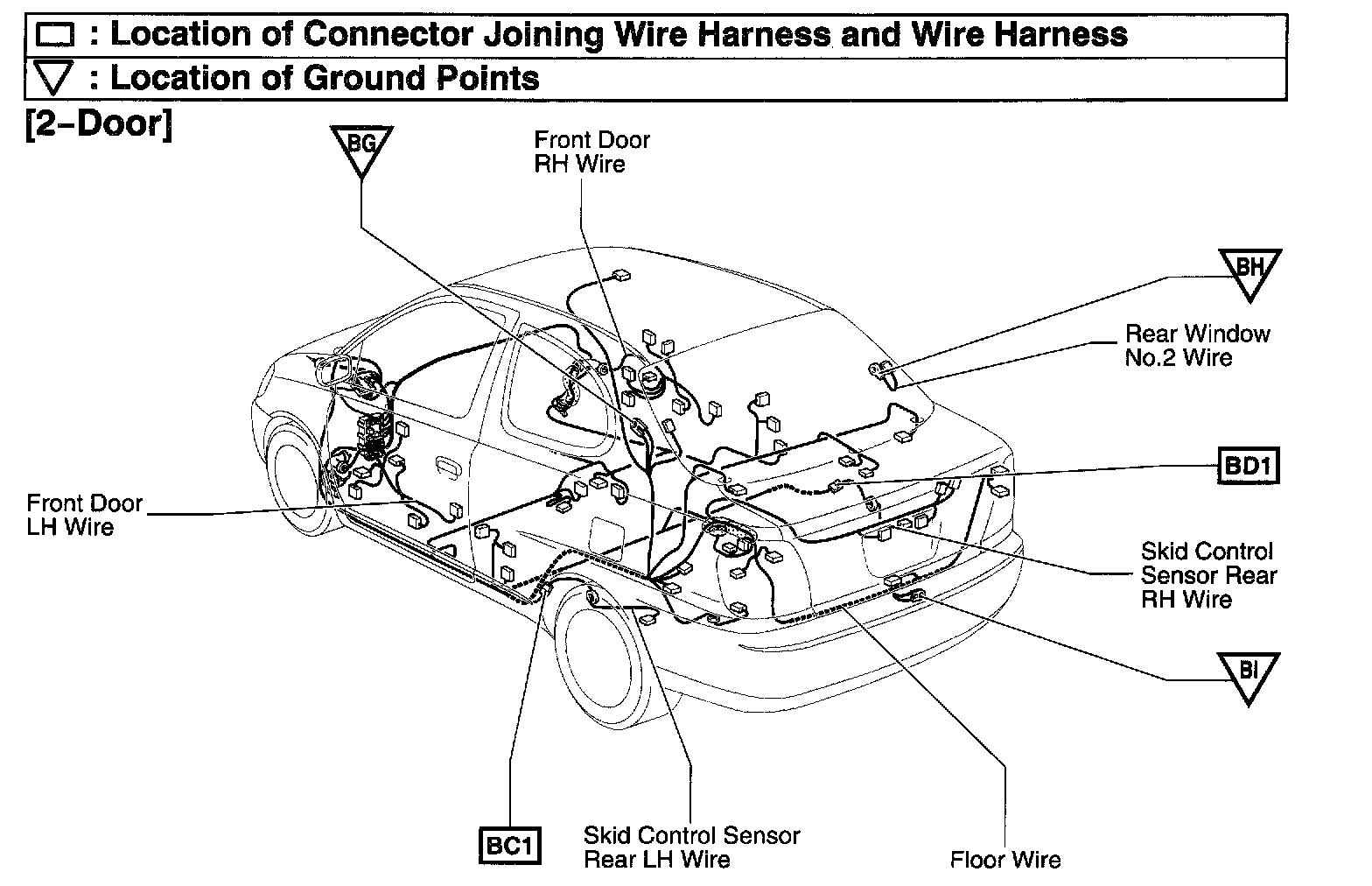

BC1 - BD1, BG - BI:
