Specifications
>>
Electrical Specifications
>>
Charging System
Charging System

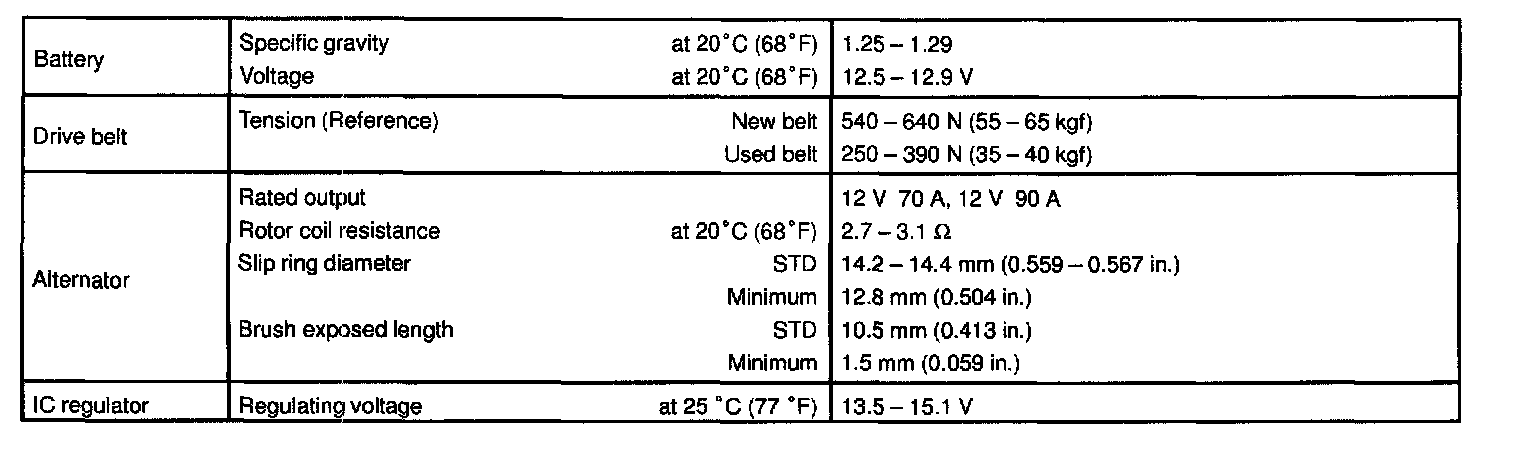

Charging - Service Data:

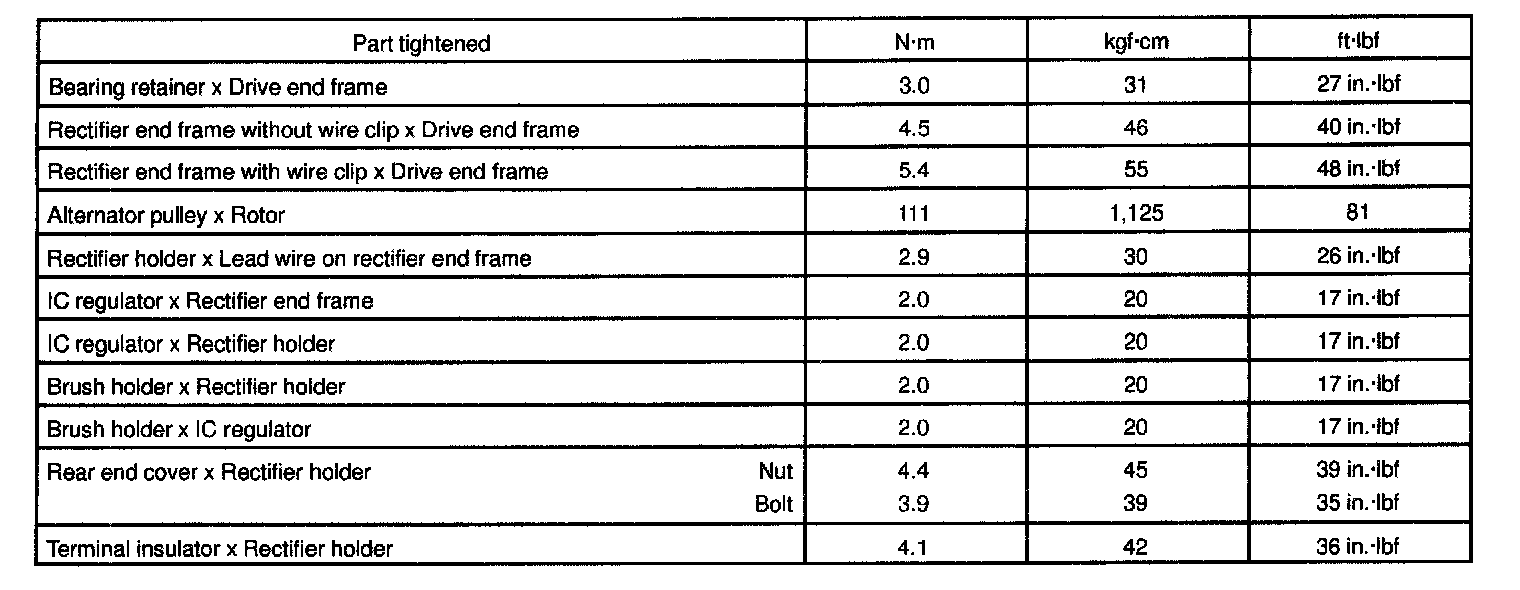

Charging - Torque Specification:
