B1186

DTC B1186 OPEN IN P SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assy center and instrument panel passenger airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1186/58 is recorded when an open is detected in the P squib (2nd step) circuit.

Wiring Diagram:

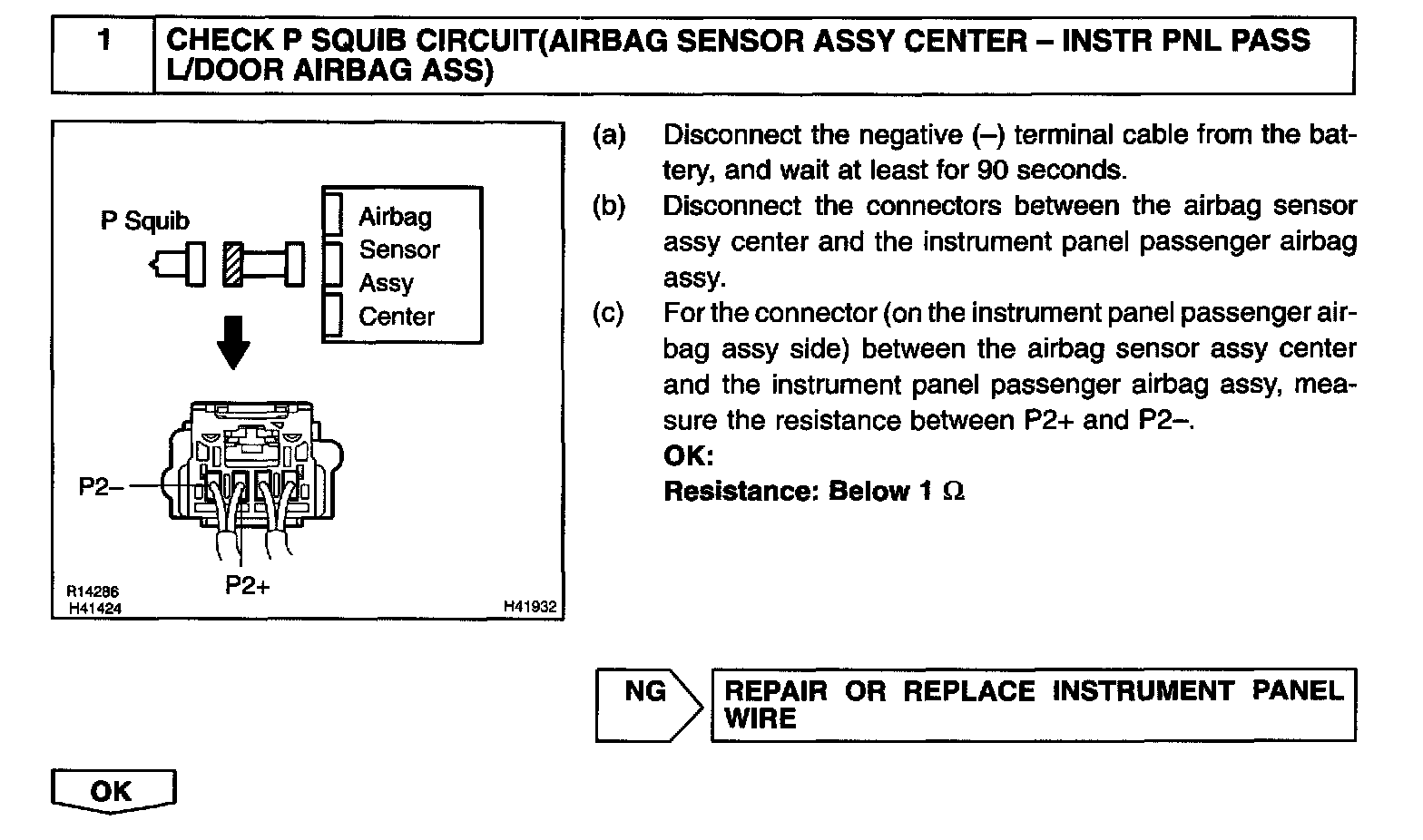

Step 1:

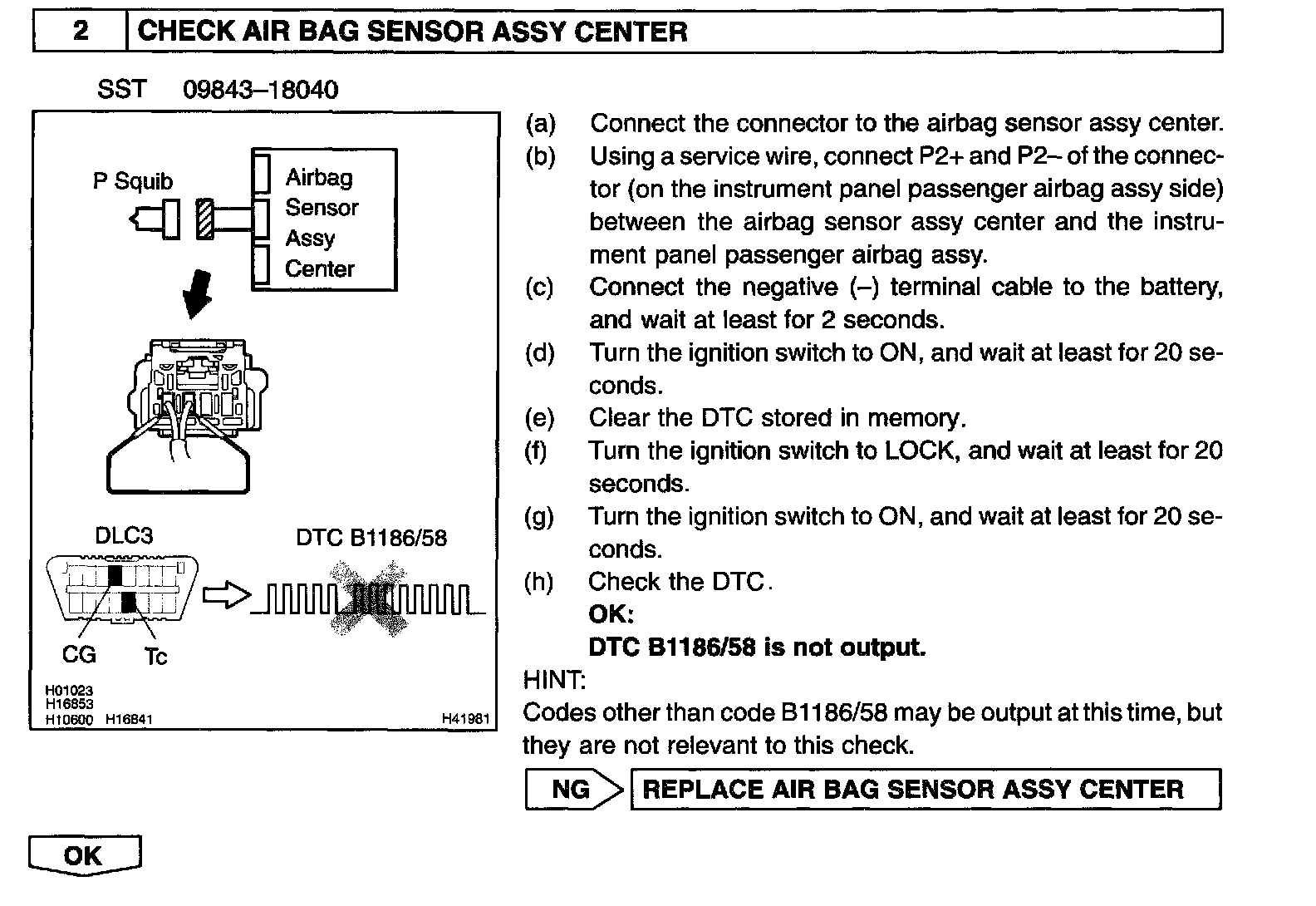

Step 2:

Step 3:

INSPECTION PROCEDURE
