ABS w/ EBD System

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch to OFF.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, turn to the page referred to under the respective "DTC No." in the DTC chart.

C0200 - C1251:

C1235 - C1239, Always ON:

DTC chart of ABS system

1. Clear DTC.
2. At a vehicle speed of 20 km/h (12 mph), drive the vehicle for 30 sec. or more.

C1271 - C1279:

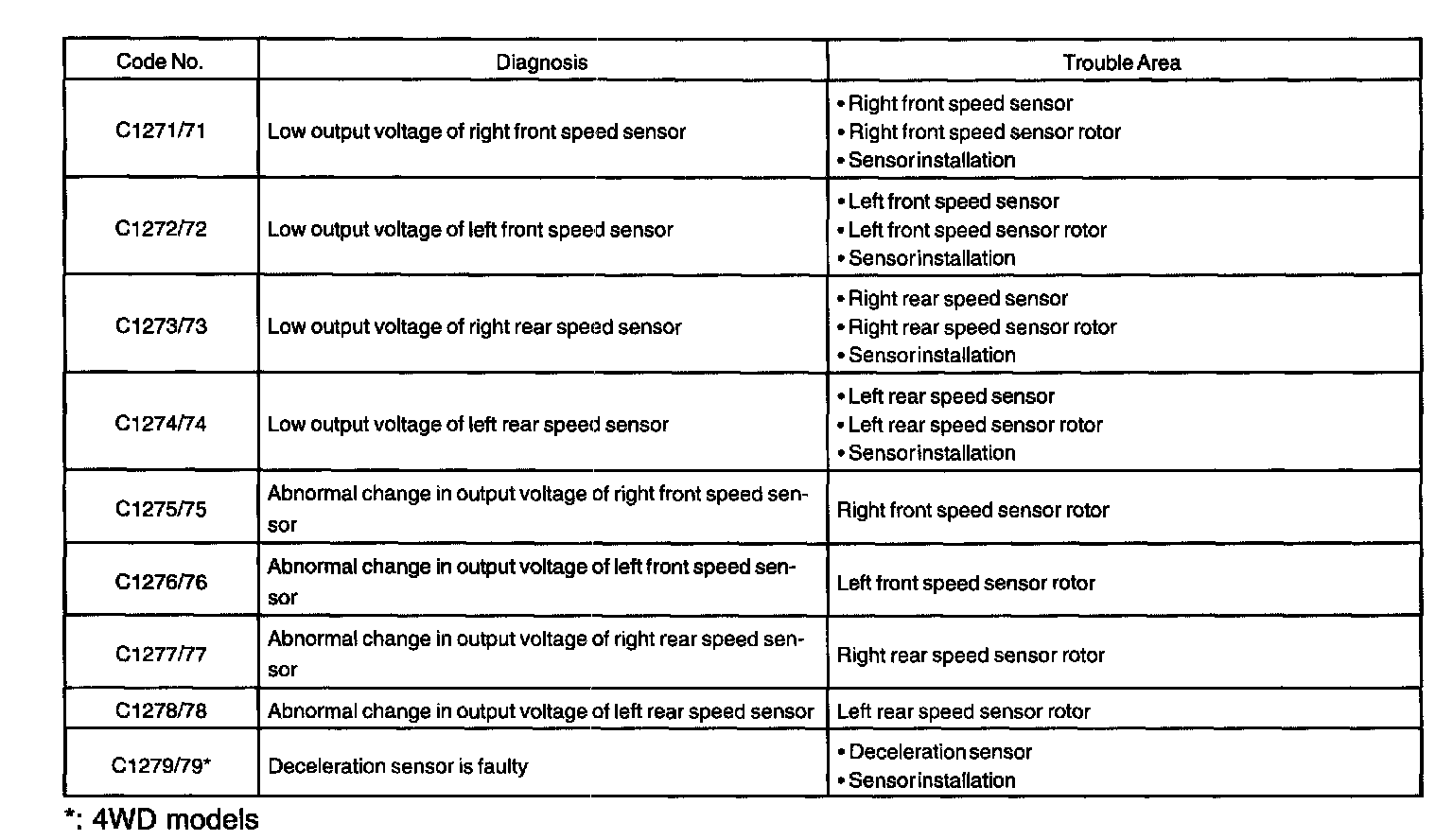

DTC of sensor check function
