Canada - Electrical - DRL Relay Damage From Low Battery

Bulletin
1159

Issue Date
2002-12-10

Reference
BE-02-007

Model
Corolla, Matrix

Year Range
2003

Market
Canada

Component
BE

Subject:
DRL RELAY CHECK AFTER LOW/DEAD BATTERY

If the battery in 2003 model year Corolla and Matrix vehicles is allowed to discharge to a point where the vehicle will no longer start, a check of headlight switch operation should be performed. In some cases, a depleted battery may result in damage to the DRL Relay. An updated Daytime Running Light Relay has been created to address this situation.

APPLICABLE VEHICLES: 2003 model year Corolla and Matrix vehicles produced before the VINs shown below.

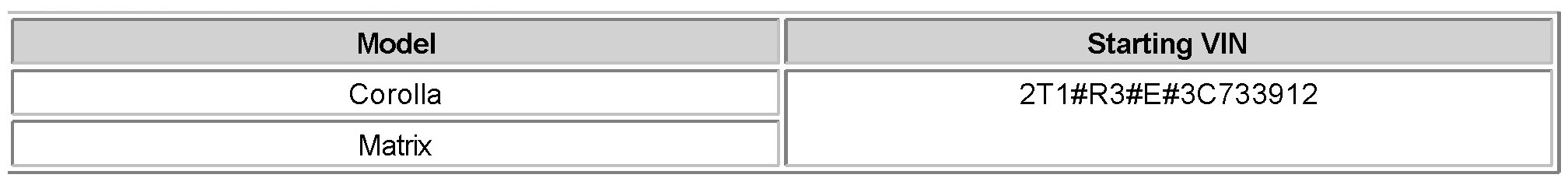

PRODUCTION CHANGE INFORMATION:

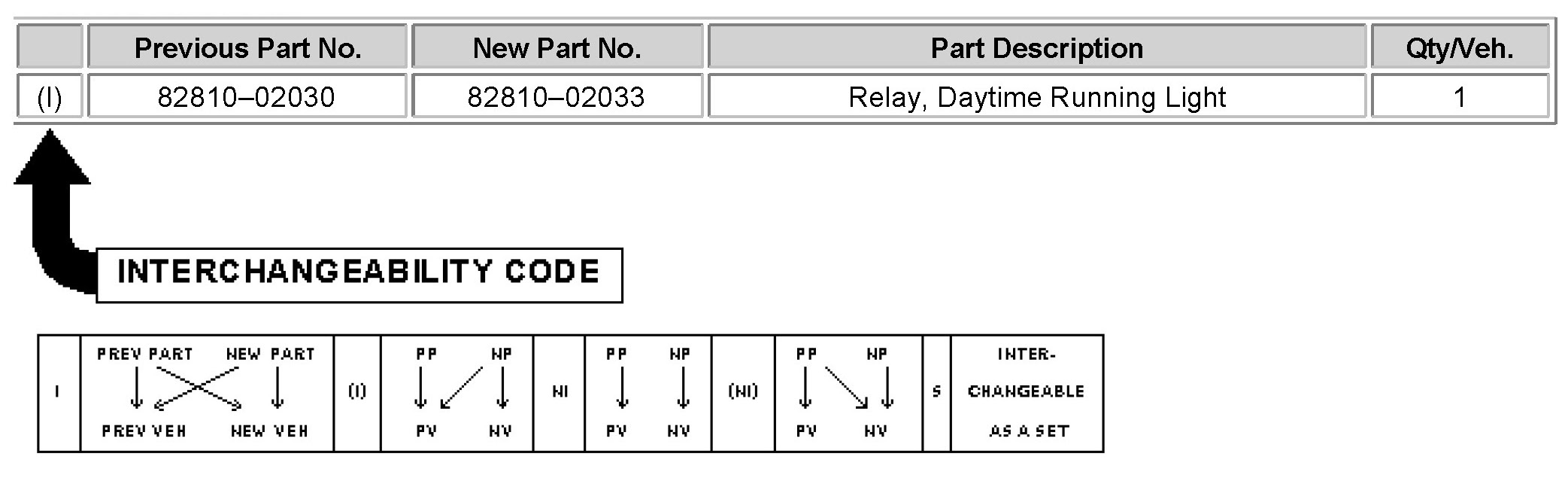

PARTS INFORMATION:

REPAIR PROCEDURE:
1. Identify the cause of the depleted battery condition, and if necessary, make related repairs.
2. Remove and replace the Daytime Running Light Relay.
3. Confirm proper headlight operation.

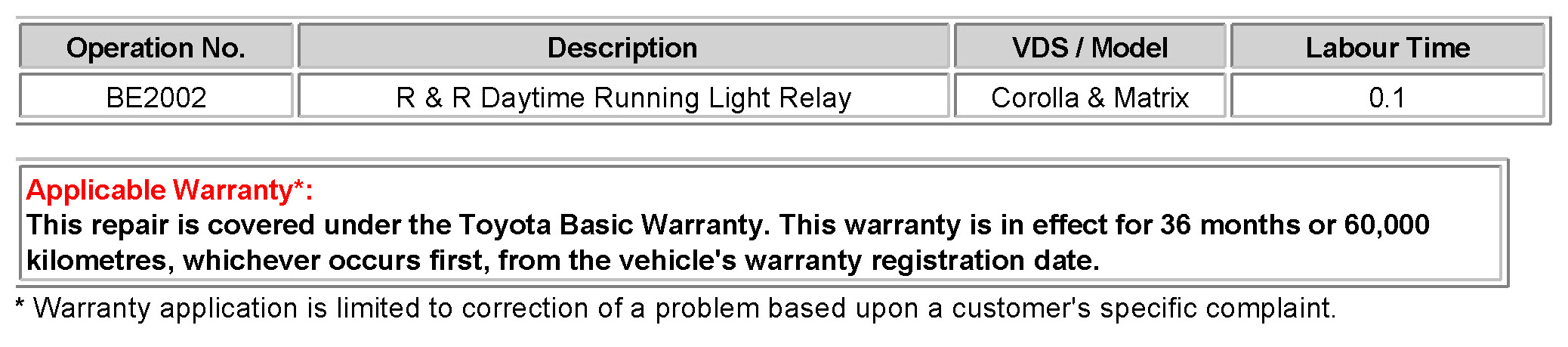

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
