B1159

DTC B1159 AIRBAG SENSOR FRONT LH MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The airbag sensor front LH circuit consists of the airbag sensor assy center and airbag sensor front LH.

DTC B1158/B1159/16 is recorded when malfunction is detected in the airbag sensor front LH circuit.

Wiring Diagram:

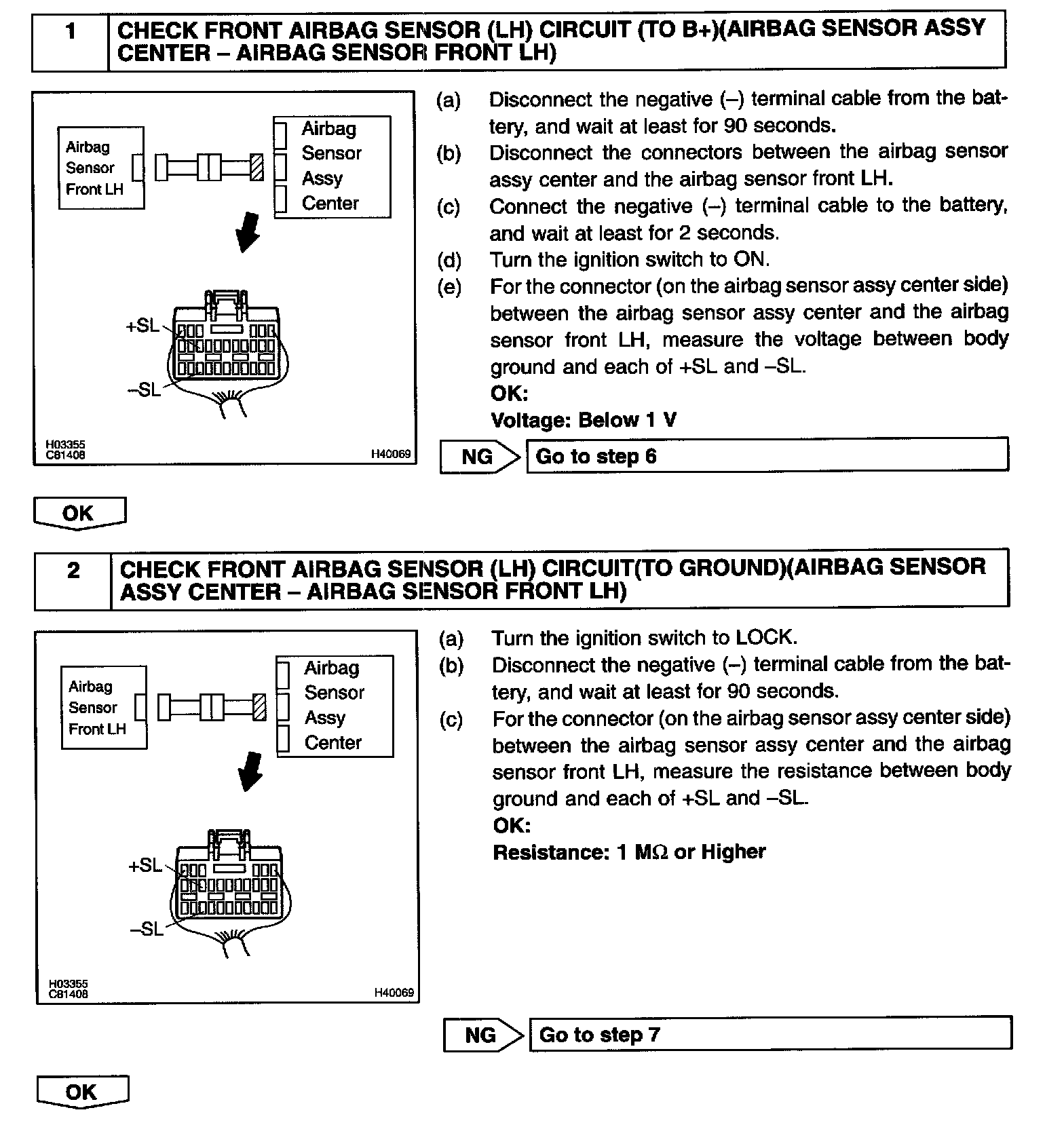

Step 1 - 2:

Step 3 - 4:

Step 5:

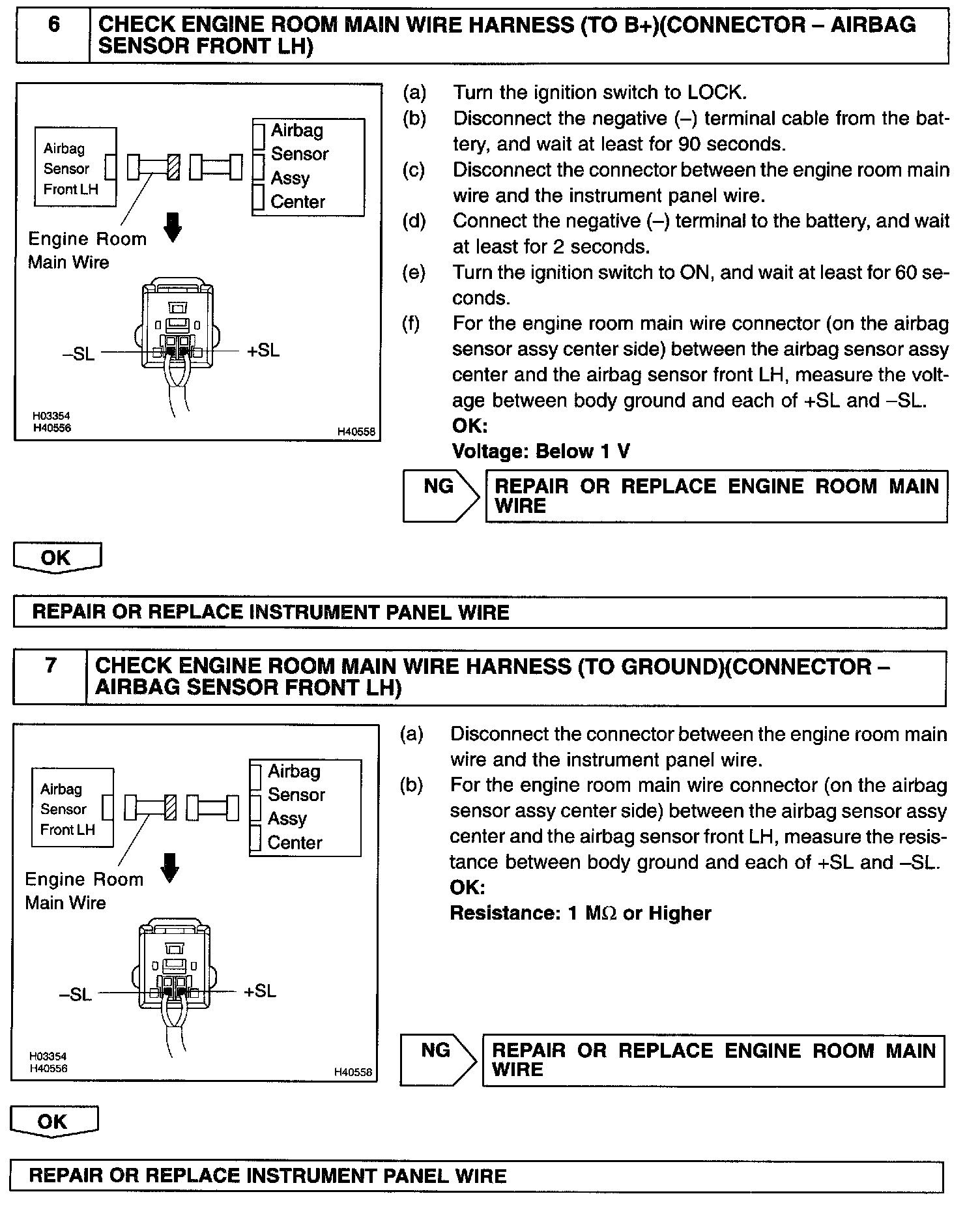

Step 6 - 7:

Step 8:

INSPECTION PROCEDURE
