Standard Bolt and Nut Identification

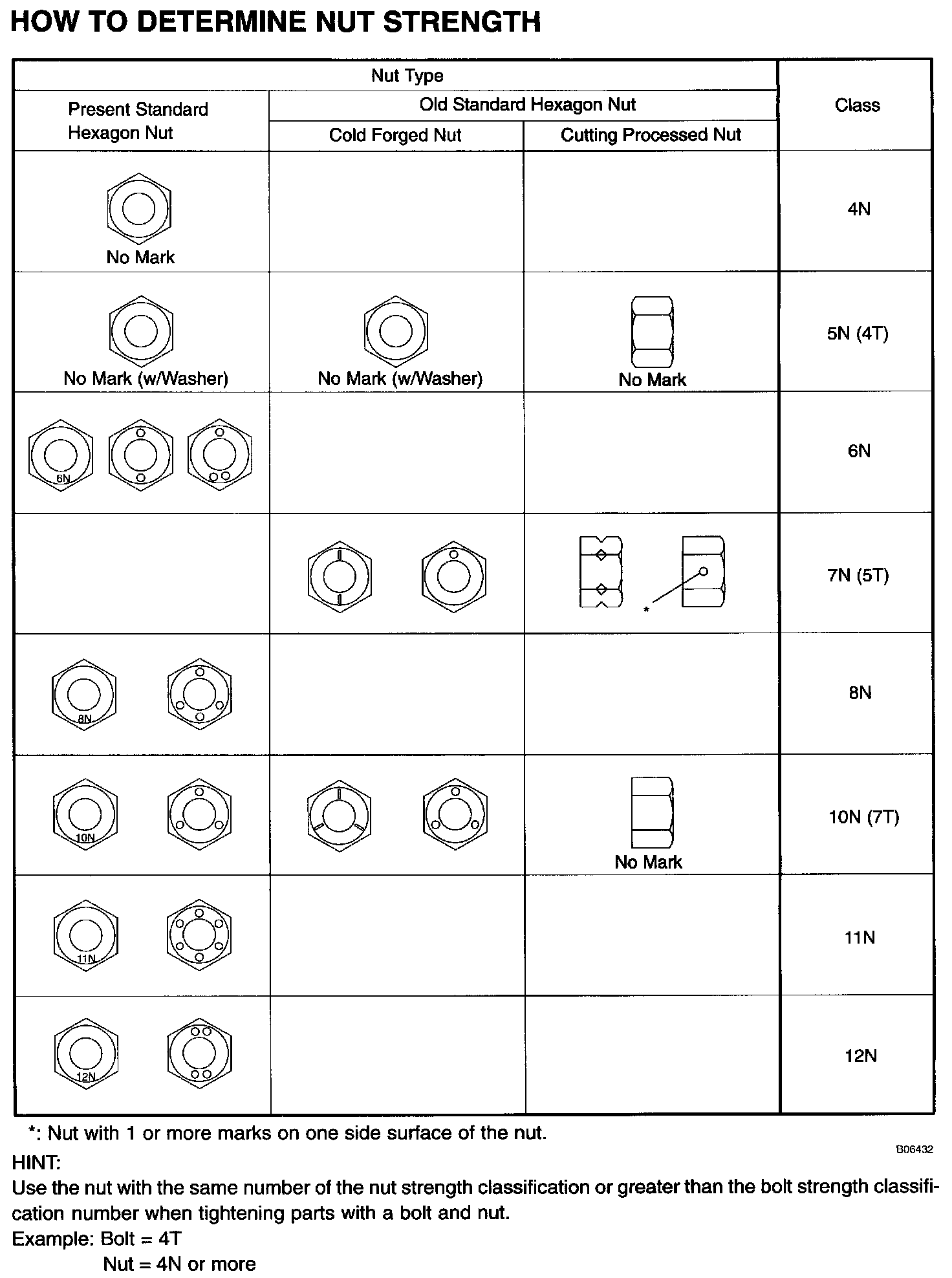

Standard Bolt Part 1:

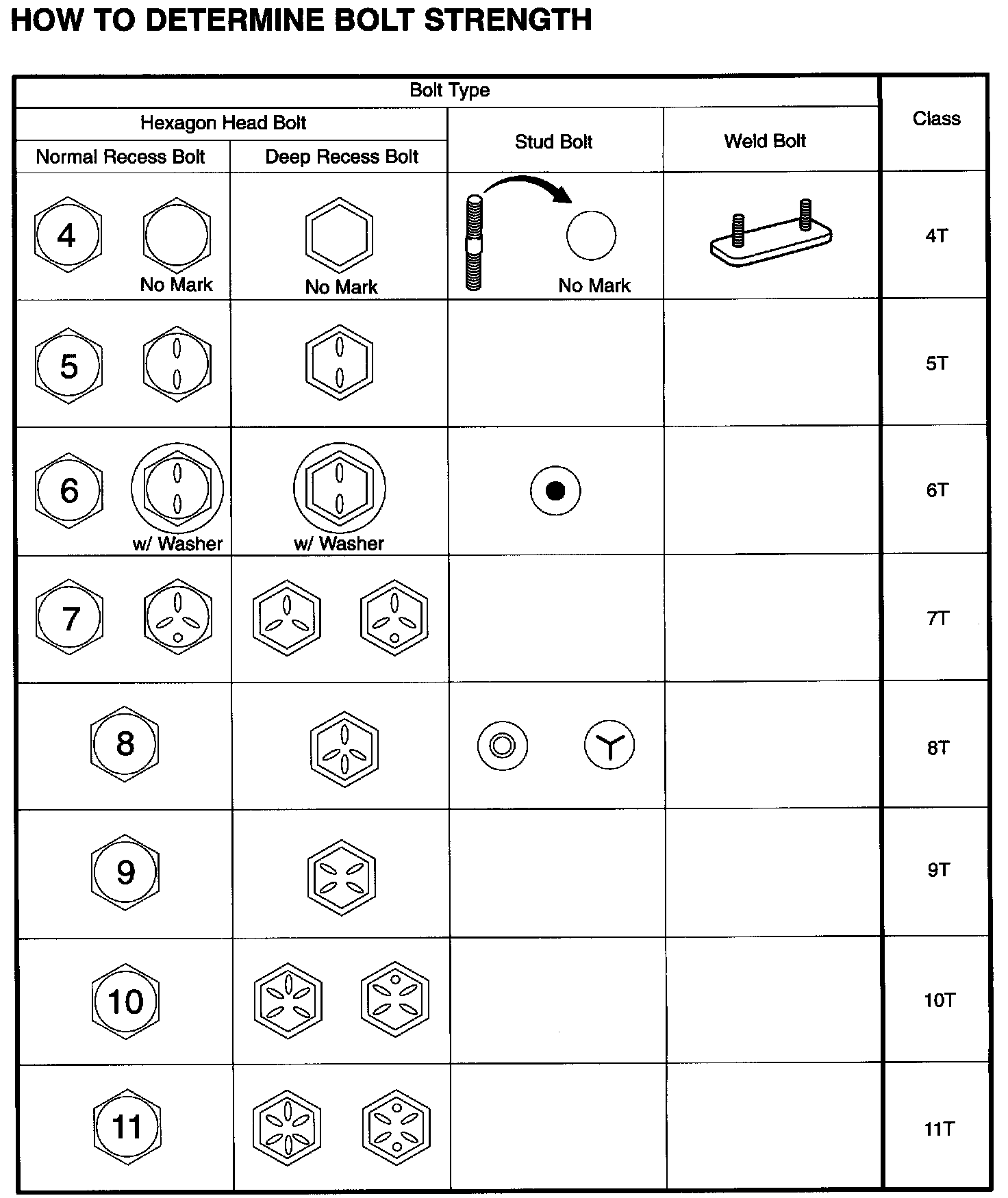

Standard Bolt Part 2:

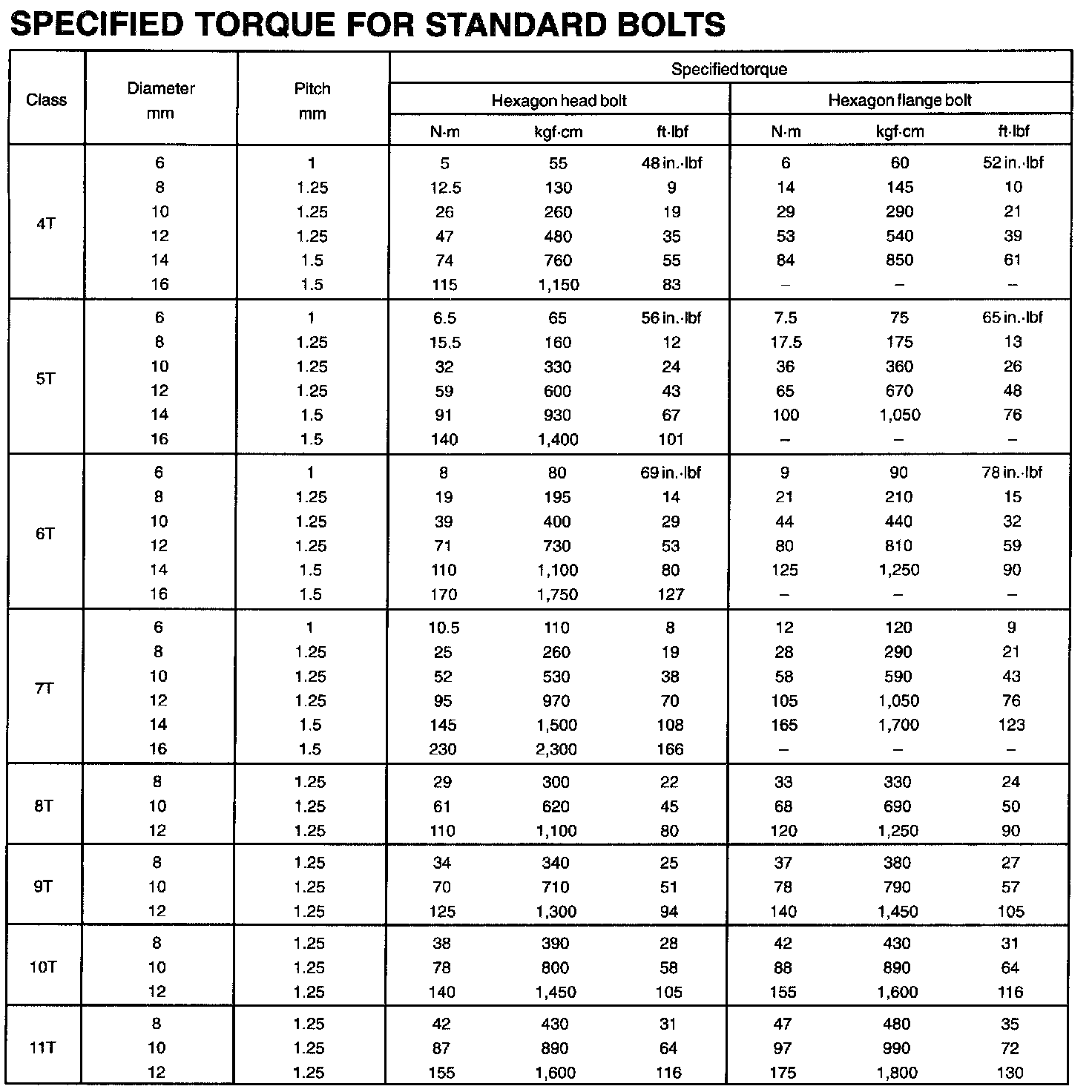

Standard Bolt Part 3:
