Front Bumper: Service and Repair
REPLACEMENTHINT: Installation is in the reverse order of the removal. But the installation is indicated only when it has a point.
1. REMOVE FRONT BUMPER COVER
a. Remove the 6 screws, 2 bolts and clip.
b. Disengage the hook and remove the front bumper cover.
c. w/ Fog light:
Disconnect the fog light connectors.
d. Remove the front bumper hole cover LH and RH.
2. REMOVE FRONT BUMPER ENERGY ABSORBER

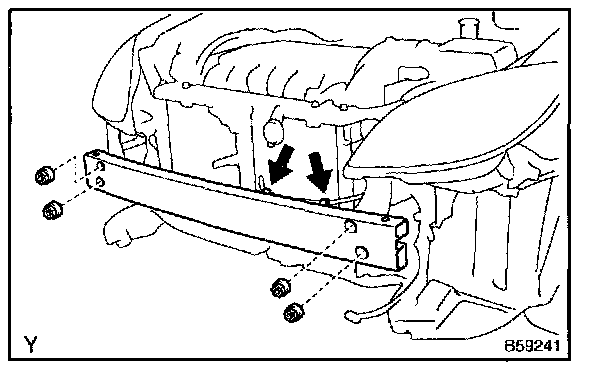

3. REMOVE FRONT BUMPER REINFORCEMENT
a. Disconnect the 2 connector clamps.
b. Remove the 4 nuts and front bumper reinforcement.
4. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET LH
5. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET RH

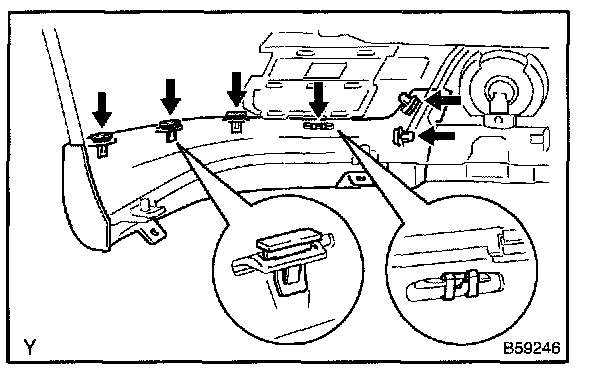

6. REMOVE FRONT SPOILER COVER LH (W/ FRONT SPOILER)
a. Remove the 5 retainers.
b. Disengage the clip and remove the front spoiler cover LH.
c. Employ the same manner described above to the other side.
7. REMOVE FRONT SPOILER COVER RH (W/ FRONT SPOILER)

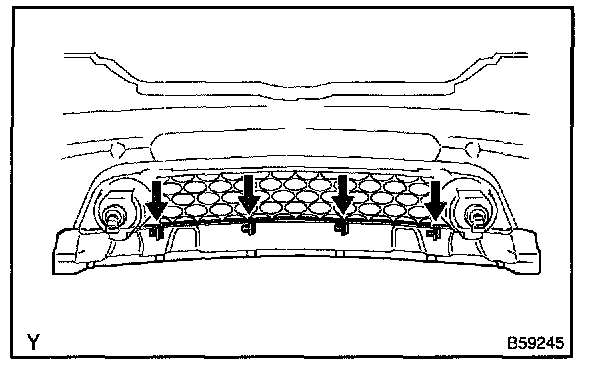

8. REMOVE FRONT CENTER SPOILER SUB-ASSEMBLY (W/ FRONT SPOILER)
a. Remove the 4 retainers and front center spoiler.
9. REMOVE FOG LIGHT UNIT LH (W/ FOG LIGHT)
10. REMOVE FOG LIGHT UNIT RH (W/ FOG LIGHT)
11. REMOVE FRONT BUMPER HOLE COVER LH (W/0 FOG LIGHT)
12. REMOVE FRONT BUMPER HOLE COVER RH (W/0 FOG LIGHT)

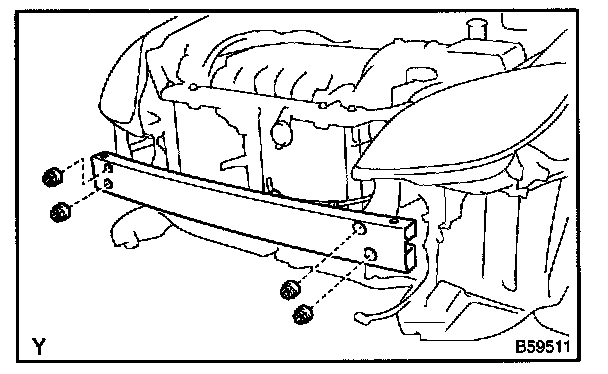

13. INSTALL FRONT BUMPER REINFORCEMENT
a. Install the front bumper reinforcement with the 4 nuts.
Torque: 36 N.m (367 kgf.cm, 27 ft.lbf) for nuts
14. INSTALL FRONT BUMPER COVER
a. Install the front bumper cover with the 6 screws, clip and 2 bolts.
Torque: 5.0 N.m (51 kgf.cm, 44 in. lbf) for bolts
