Rear Door: Adjustments
ADJUSTMENTHINT:
- Before adjusting the door position for vehicles equipped with side airbags and curtain shield airbags, be sure to disconnect the negative (-) terminal cable from the battery. After adjustment, inspect the SRS warning lamp, the side airbag system and the curtain shield airbag system for normal operation.
- Use the same procedure for the RH side and LH side.
- The procedures listed below are for the LH side.

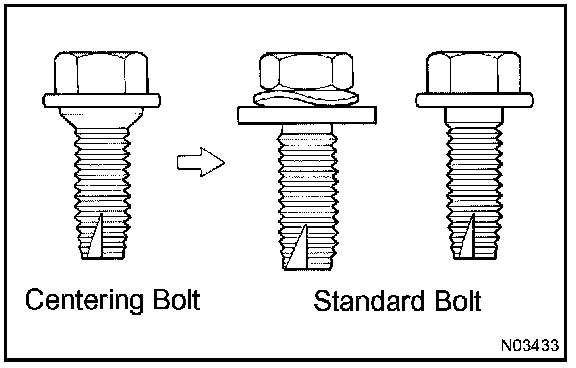

- Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/ washers) when making adjustments.
- A bolt without a torque specification is shown in the standard bolt chart.
1. INSPECT REAR DOOR PANEL SUB-ASSEMBLY LH
a. Check that the clearance measurements of areas A to E are within the standard range.
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE REAR DOOR SCUFF PLATE LH
4. REMOVE FRONT DOOR WEATHERSTRIP LH
5. REMOVE REAR DOOR WEATHERSTRIP LH
6. REMOVE CENTER PILLAR GARNISH LOWER LH
7. ADJUST REAR DOOR PANEL SUB-ASSEMBLY LH
a. Turn the ignition switch OFF.
b. Disconnect the negative (-) terminal cable from the battery.
CAUTION: Work must be started at least 90 seconds after the ignition switch is turned OFF and the negative (-) terminal cable is disconnected from the battery. (The SRS is equipped with a back-up power source. If work is started within 90 seconds of disconnecting the negative (-) terminal battery and the ignition switch is turned OFF, the SRS may deploy.)

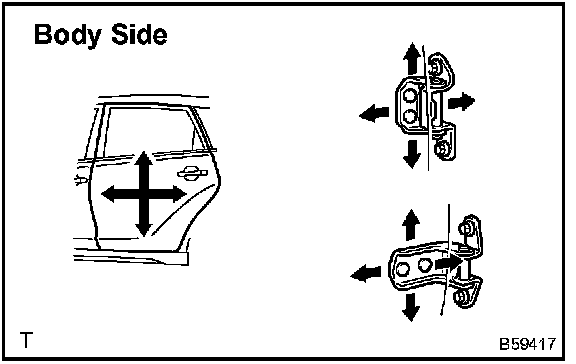

c. Loosen the body side's hinge nuts and adjust the door's position
d. Tighten the body side's hinge nuts after the adjustment.
Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)
e. Loosen the door side's hinge bolts and adjust the door's position
f. Tighten the door side's hinge bolts after the adjustment.
Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

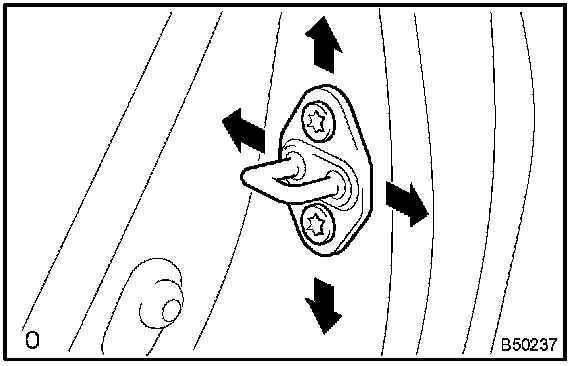

g. Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a plastic-faced hammer.
h. Tighten the striker mounting screws again.
Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
i. Connect the battery negative (-) cable.
j. Inspect the SRS warning lamp
