Relay Box

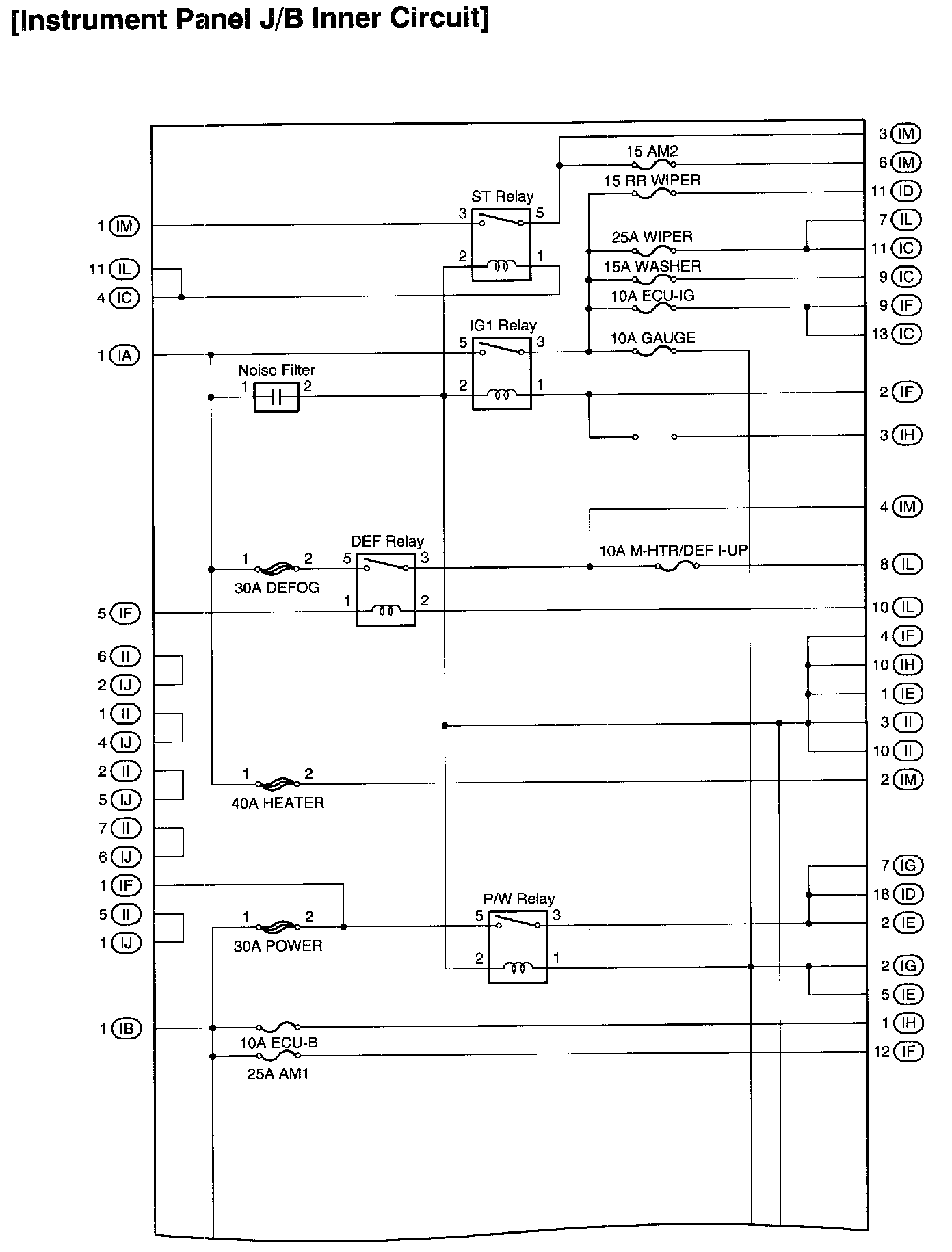

Instrument Panel J/B Inner Circuit:



Instrument Panel J/B Inner Circuit:

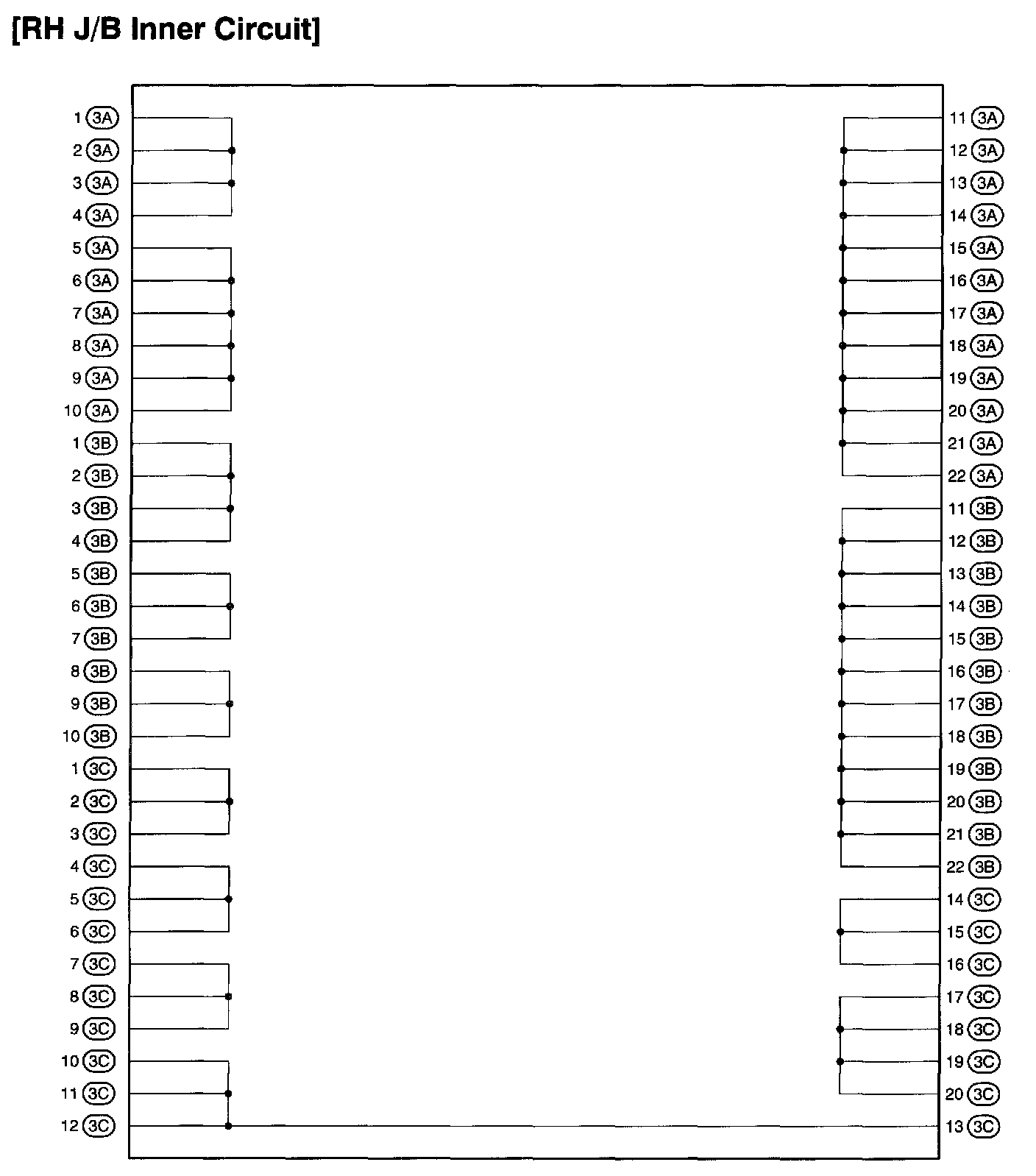

RH J/B Inner Circuit:



Center J/B Inner Circuit:
