Brake Master Cylinder
Brake Master Cylinder

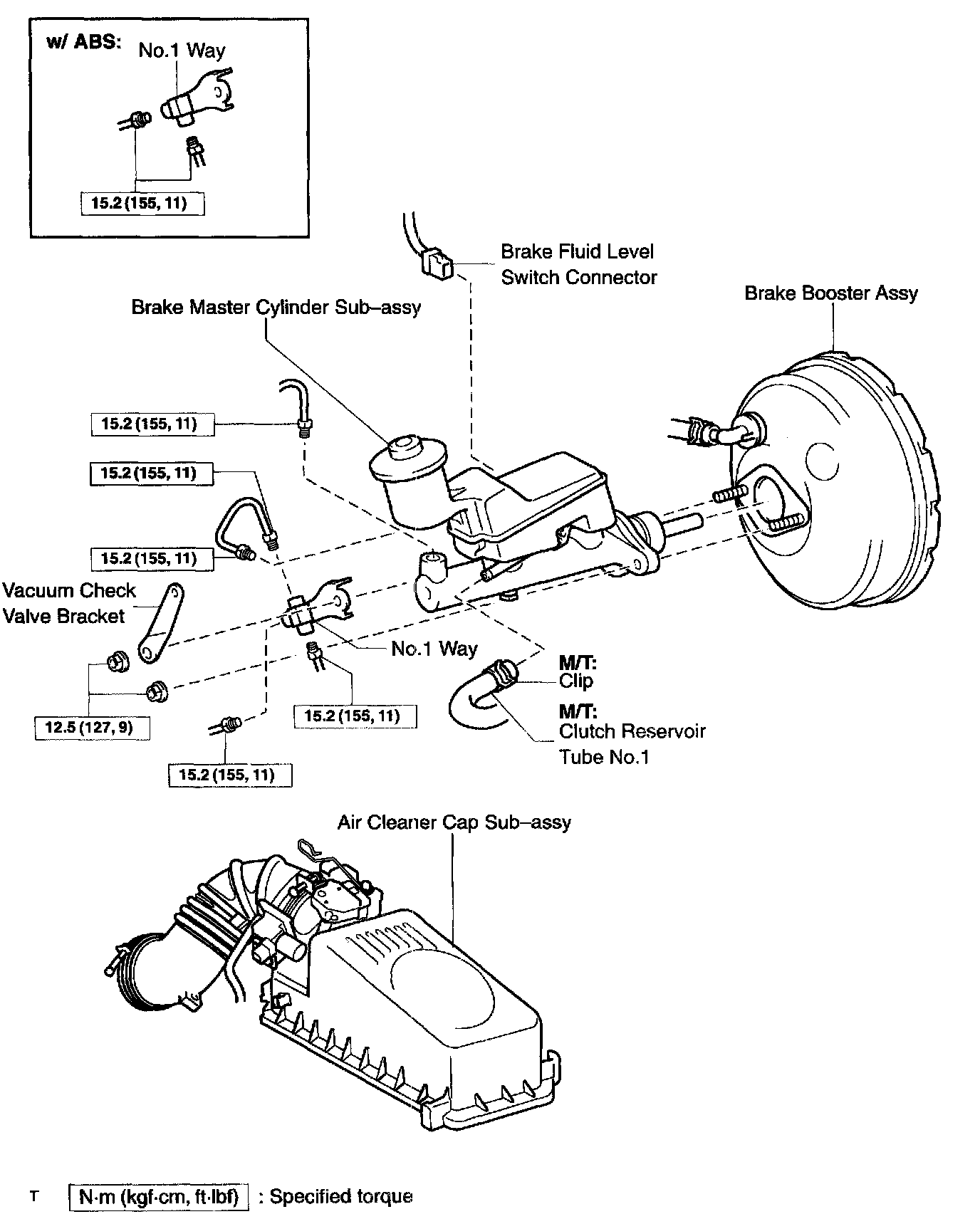

BRAKE MASTER CYLINDER
SUB-ASSY OVERHAUL COMPONENTS W/ RELATED COMPONENTS
Part 1 of 2
Part 2 of 2
