Steering Column
Steering Column

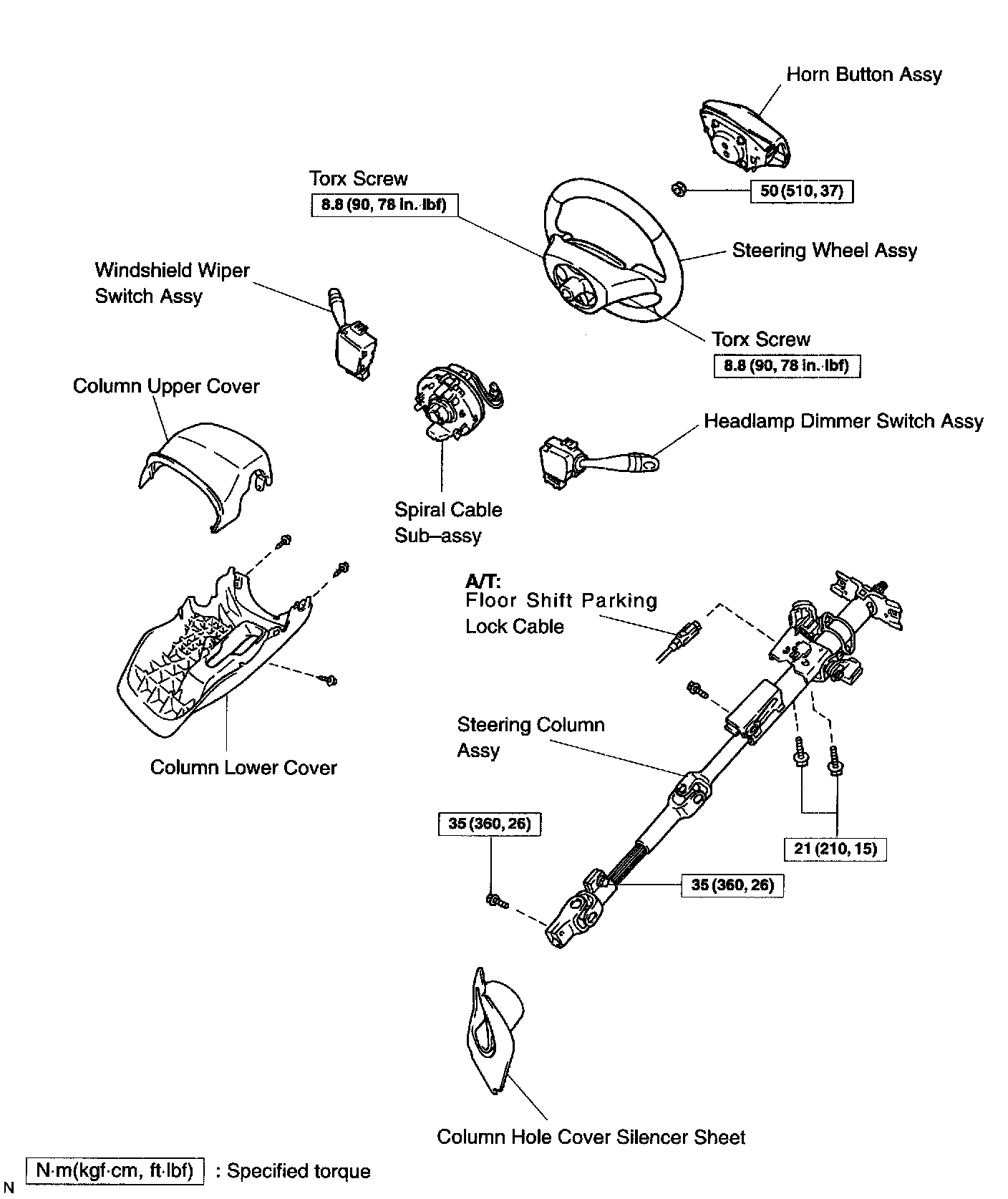

STEERING COLUMN
ASSY OVERHAUL W/ RELATED COMPONENTS
Part 1 of 2
Part 2 of 2
