Evaporator Case: Locations

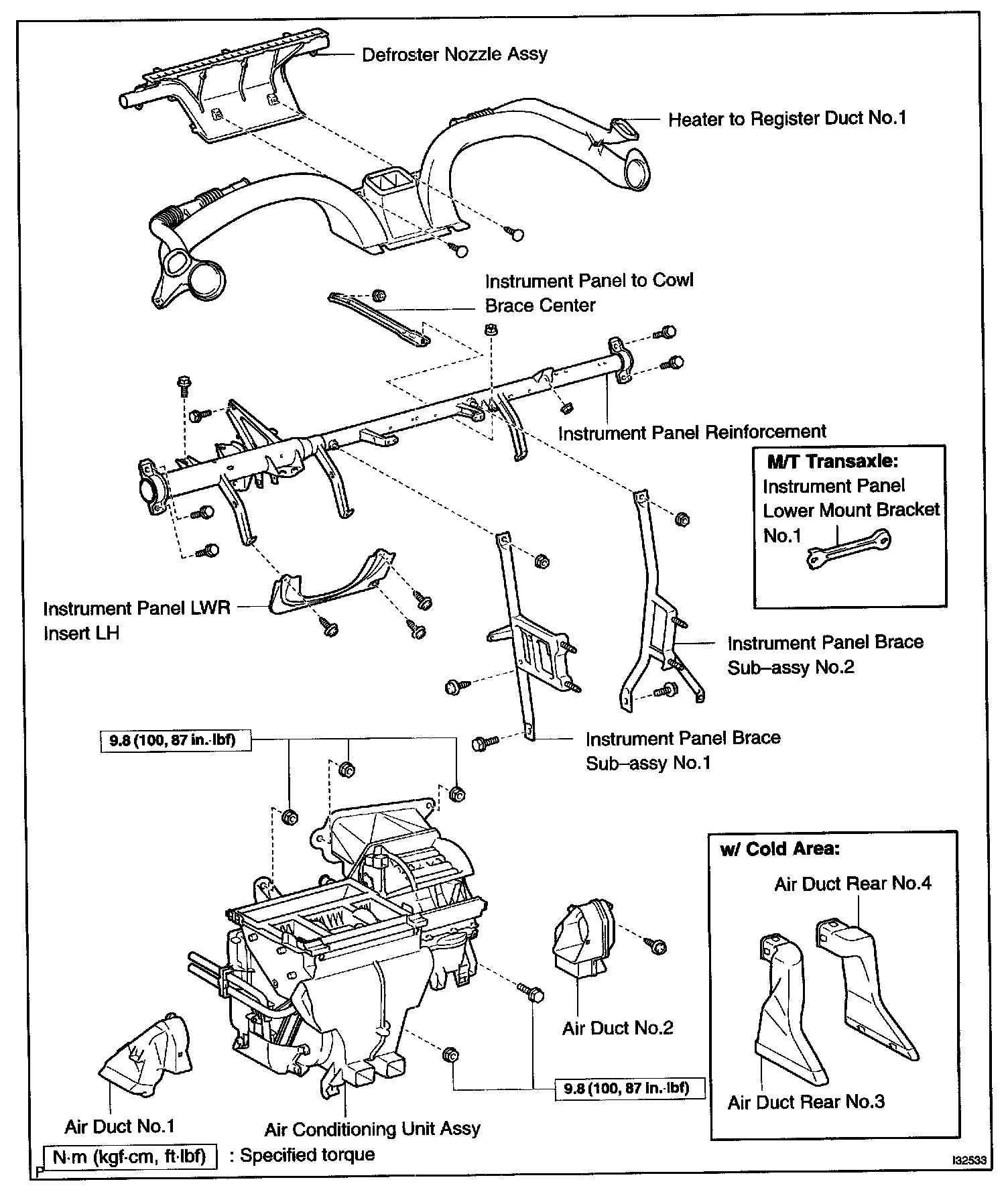

Air Conditioning Unit Components Part 1:

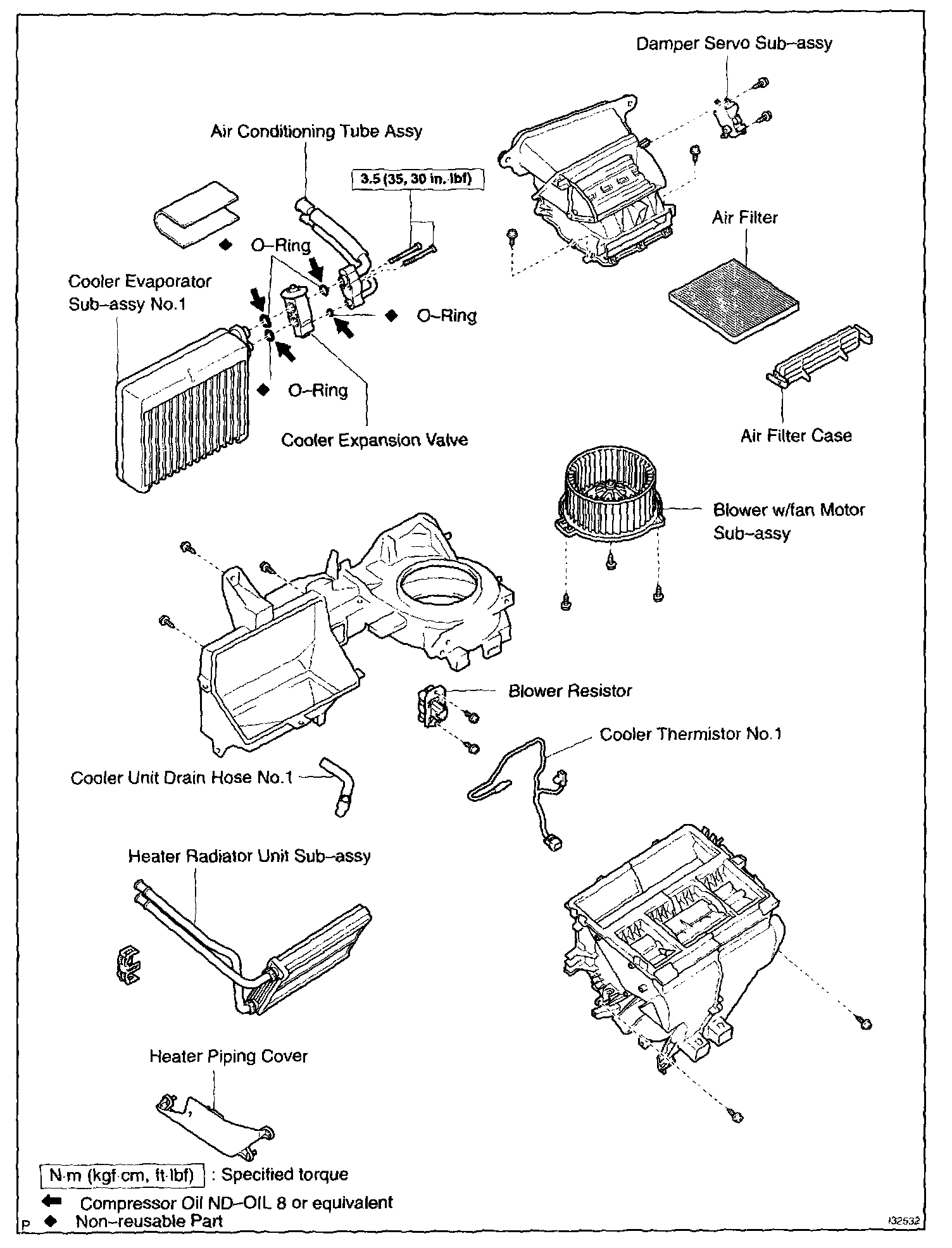

Air Conditioning Unit Components Part 2:
