Cruise Control Indicator Lamp: Testing and Inspection

CIRCUIT DESCRIPTION

When the cruise control main switch assy button is turned to ON, CRUISE main indicator light comes on.

Wiring Diagram:

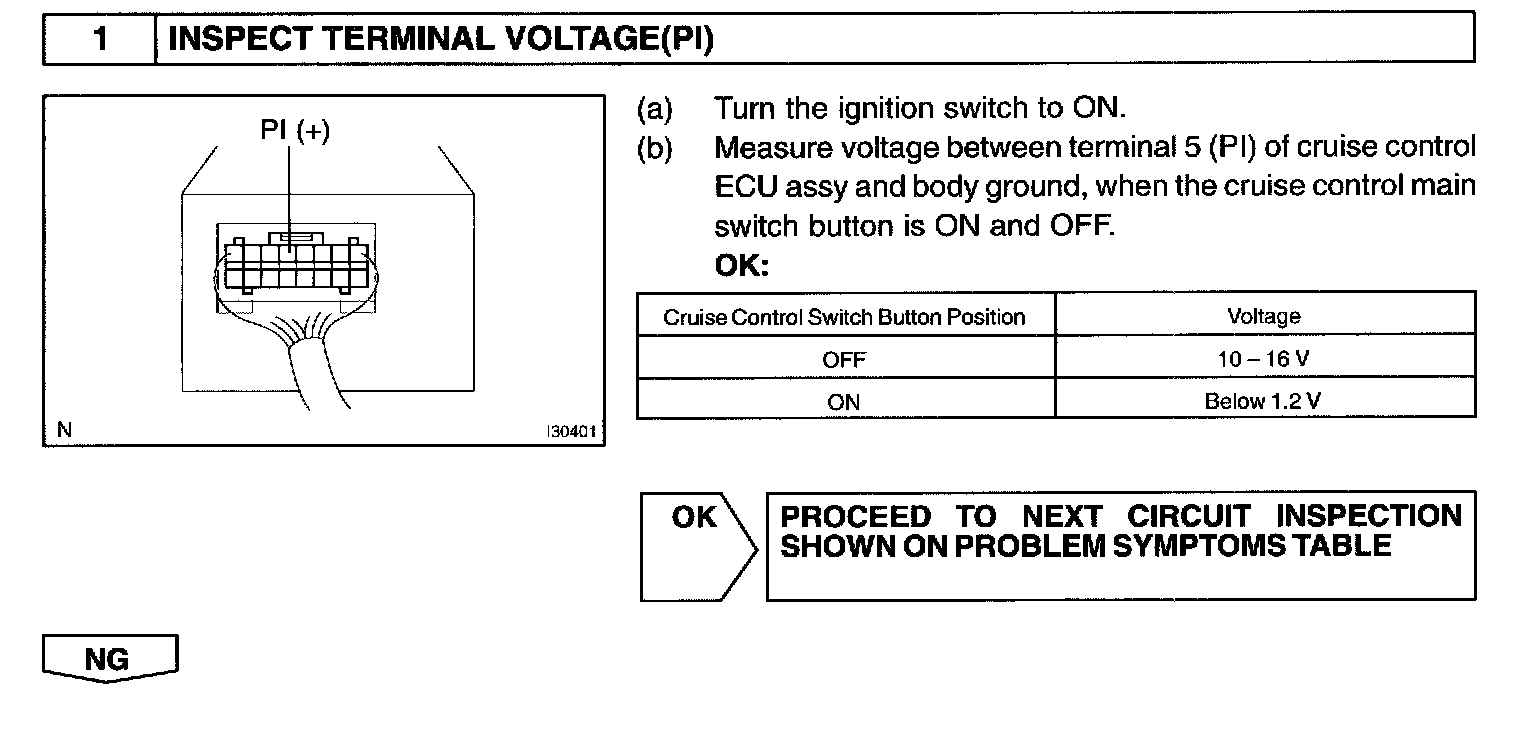

Step 1:

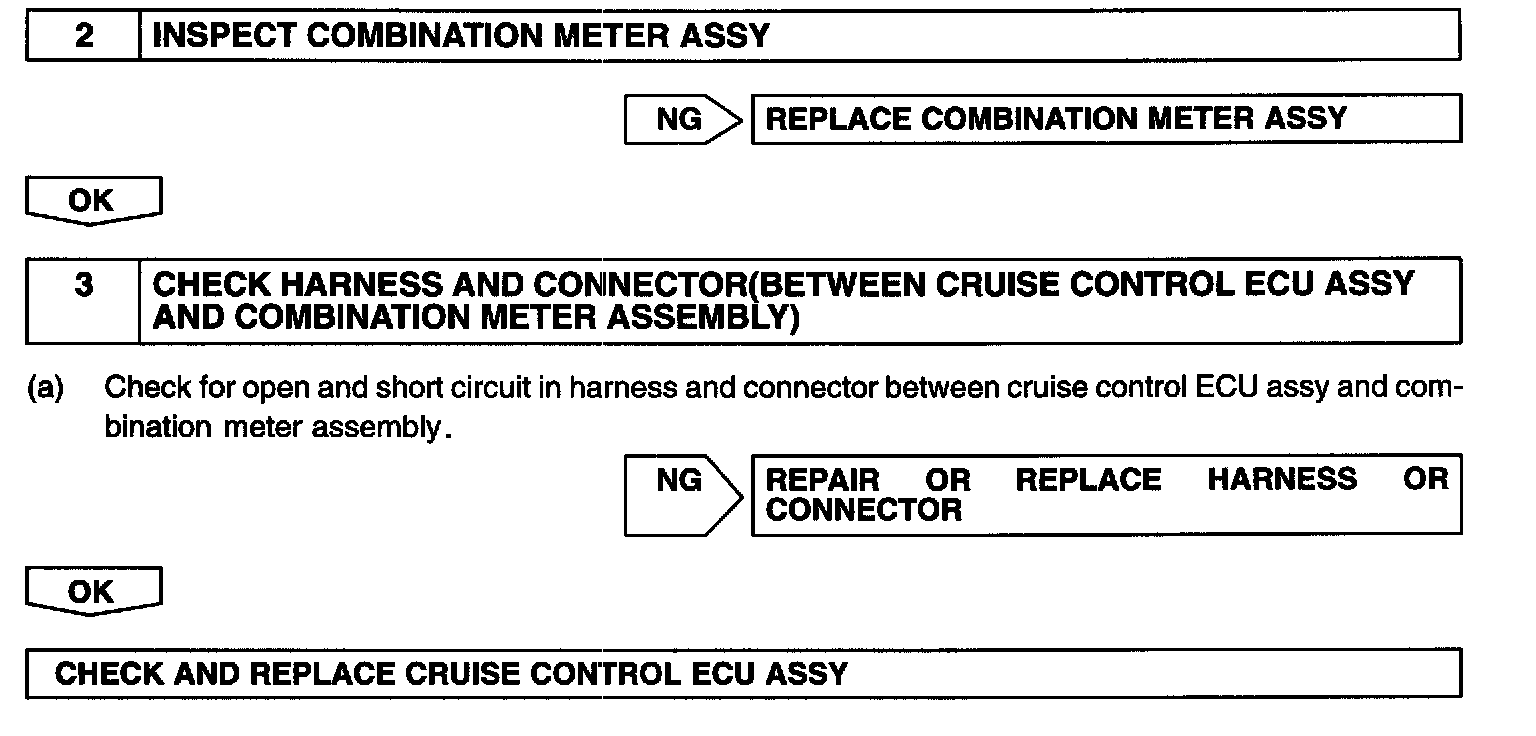

Step 2 - 3:

INSPECTION PROCEDURE
