Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Matrix XR 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Locations
>>

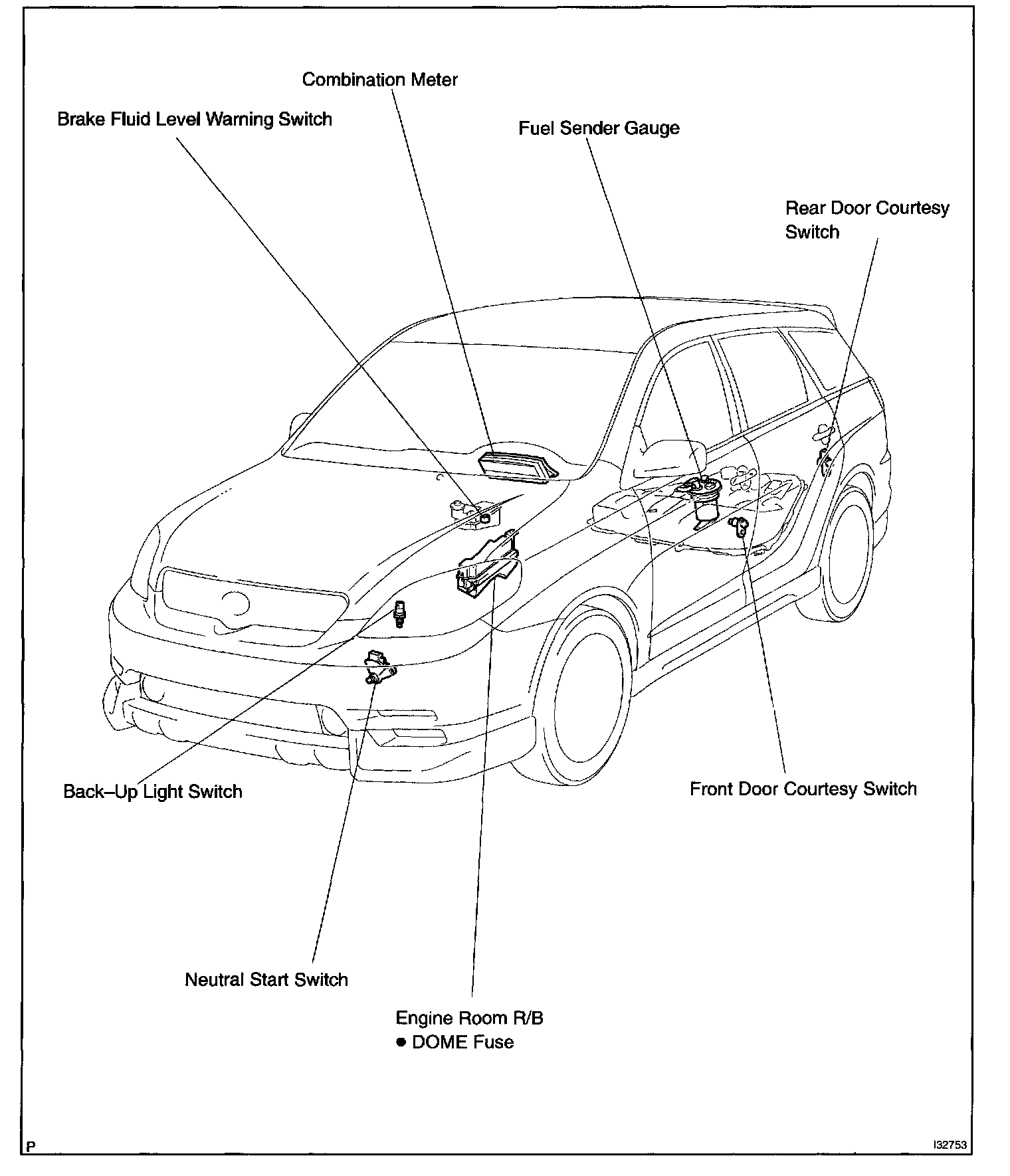

Component Locations
Component Locations
Combination Meter Part 1:
Combination Meter Part 2:
