Combination Meter Disassembly and Assembly
COMBINATION METER ASSYOVERHAUL
1. REMOVE METER HOOD SUB-ASSY
2. REMOVE COMBINATION METER ASSY
a. Remove the screw.

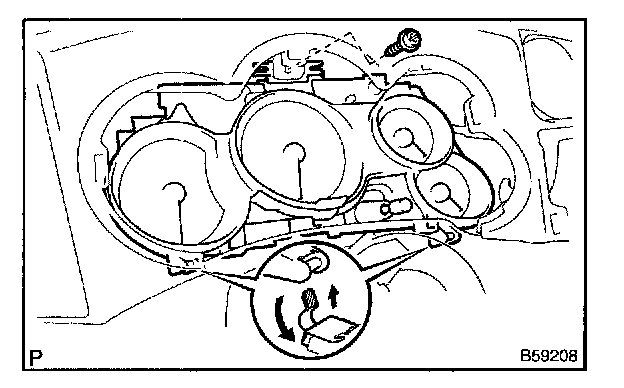

b. Disengage the 2 claws as shown in the illustration.
c. Disconnect connector, then remove the combination meter assy, as shown in the illustration.
3. REMOVE COMBINATION METER GLASS
a. Remove the trip knob.
b. Disengage the 10 claws and remove the window plate.
c. Disengage the 8 claws and remove the combination meter glass.
