Drive Belt: Service and Repair

REPLACEMENT
1. REMOVE ENGINE UNDER COVER RH





2. REMOVE FAN AND GENERATOR V-BELT

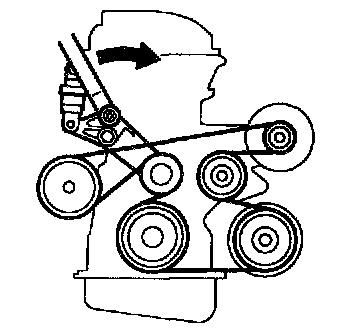

a. Turn the drive belt tensioner clockwise to relieve tension on the belt, and then remove the belt.
b. Carefully return the tensioner to the unloaded position.
