Front Suspension
Front Suspension
Front Suspension - Service Data:

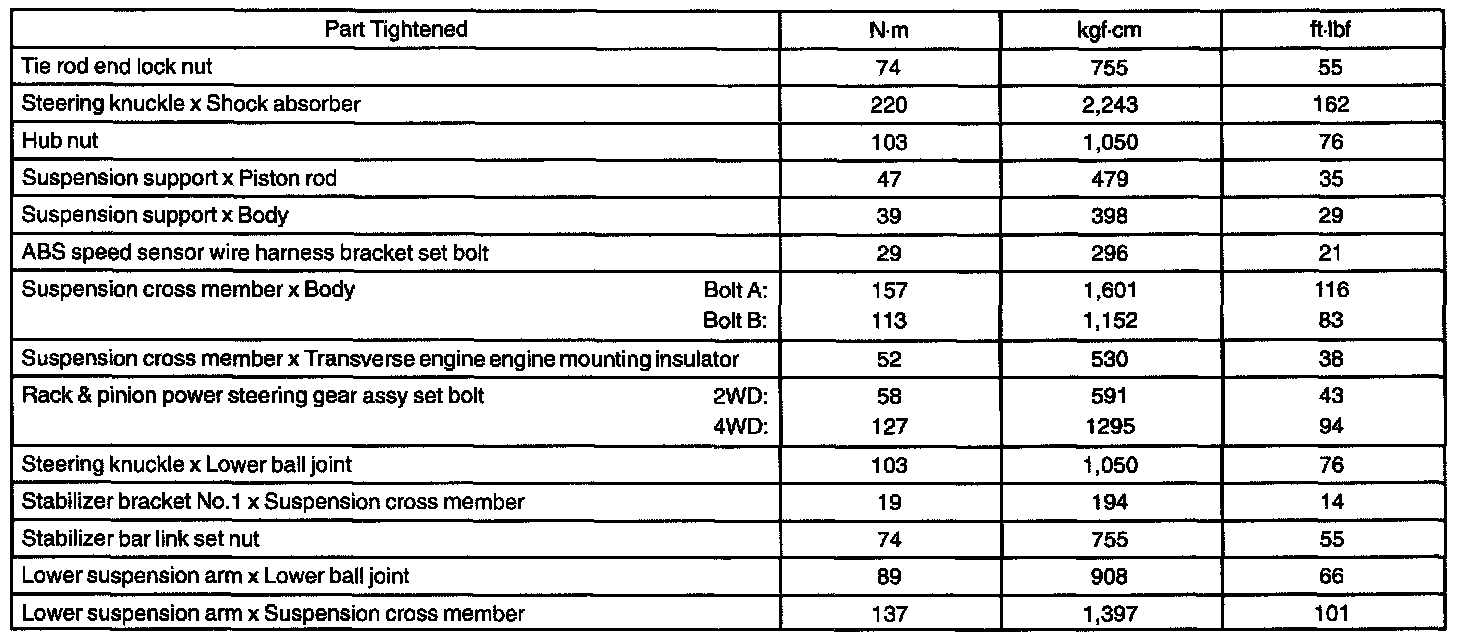

Front Suspension - Torque Specification:
