Canada - Interior - CenterConsole Lid Won't Stay Closed

Bulletin
1316

Issue Date
2003-12-08

Reference
BC-03-028

Model
Matrix

Year Range
2003, 2004

Market
Canada

Component
Component BC

Subject:
CENTER CONSOLE BOX WILL NOT STAY CLOSED

This bulletin provides the recommended repair procedure when the center console door on the 2003 and 2004 model year Matrix will not stay closed.

APPLICABLE VEHICLES:
- 2003 - 2004 model year Matrix vehicles produced BEFORE the Production Change Effective VINs shown below.







PRODUCTION CHANGE INFORMATION:







PARTS INFORMATION:







WARRANTY INFORMATION:







REPAIR PROCEDURE:

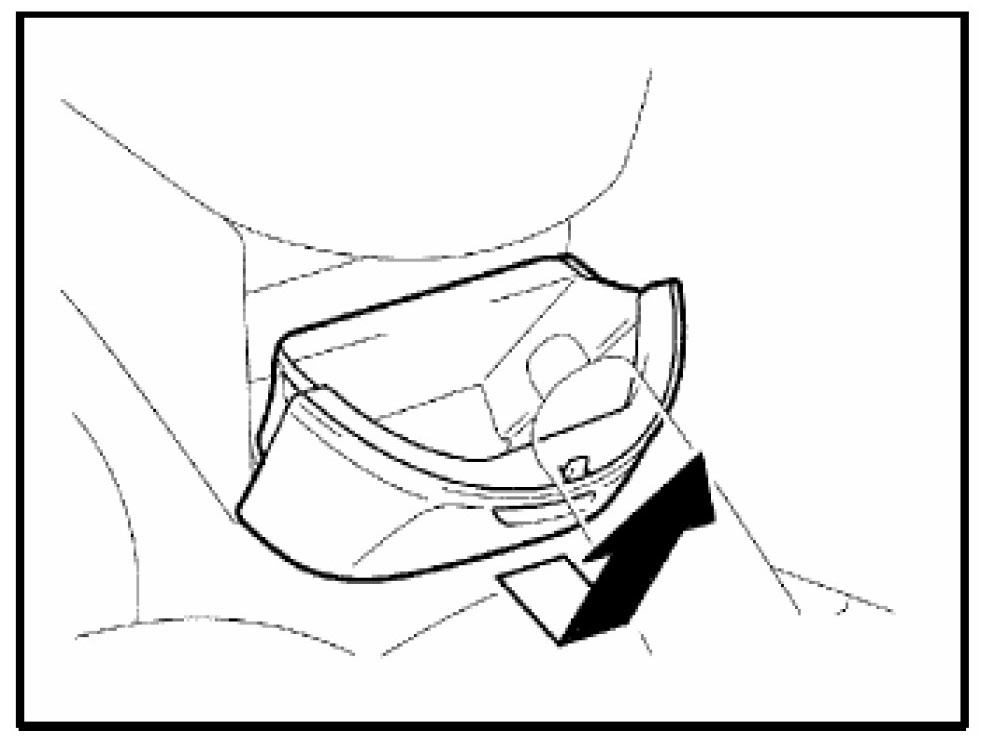

1. Remove Center Console Box from vehicle. Refer to the ETAS 2004 Model Year Matrix Repair Manual:
Section: Instrument Panel/Meter, Instrument
Subsection: Panel Sub-assembly Lower.







2. Cut a piece of the 3 mm thick felt to the following dimensions:
Felt Size:
Length: 10 mm
Width: 15 mm
Thickness: 3 mm

3. Add the strip of felt to the bottom of each hinge. See illustration for location.
4. Reinstall Center Console Box and confirm proper operation.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
