Axle Shaft Assembly: Tools and Equipment

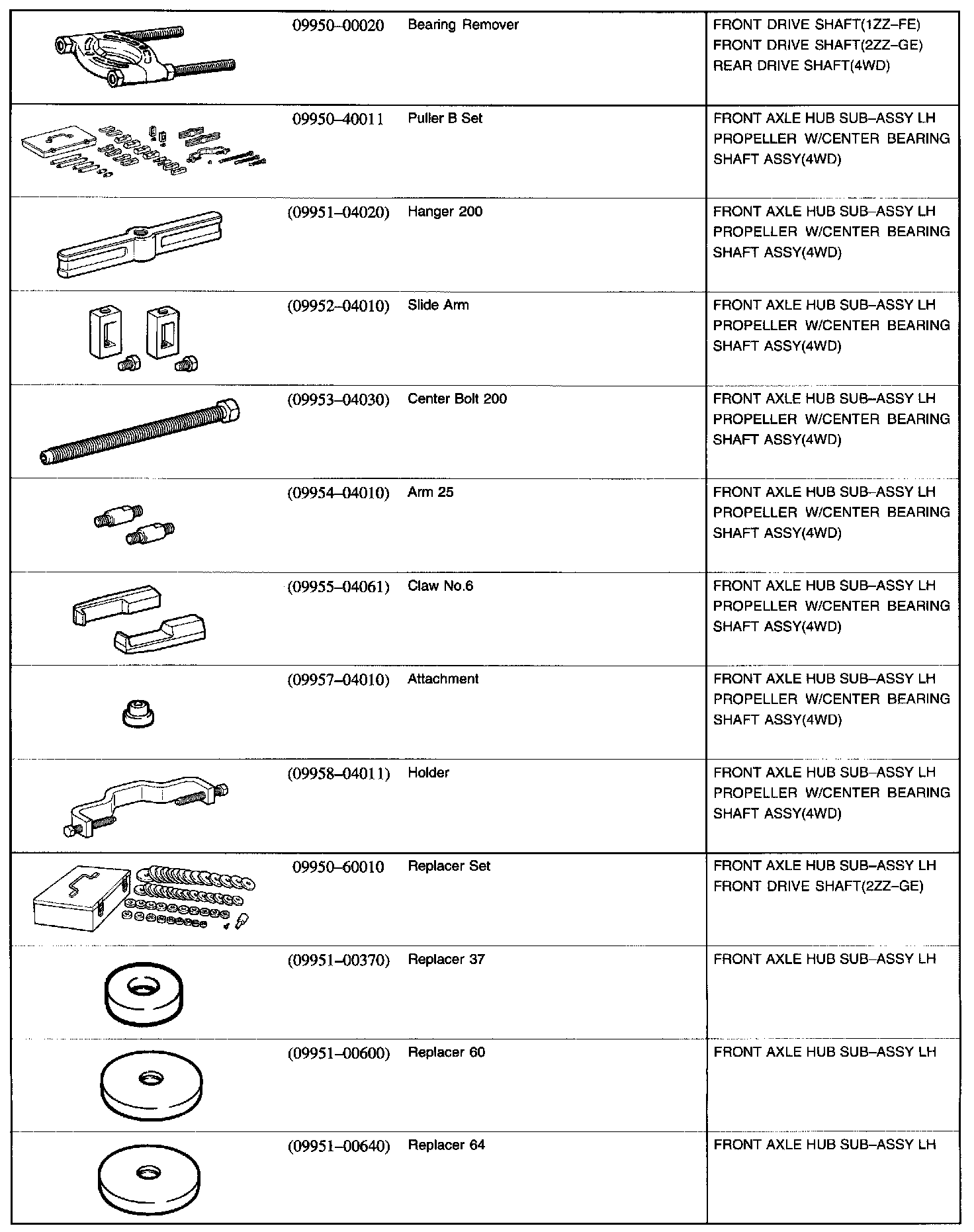

Drive Shaft/ Propeller Shaft - SST Part 1:

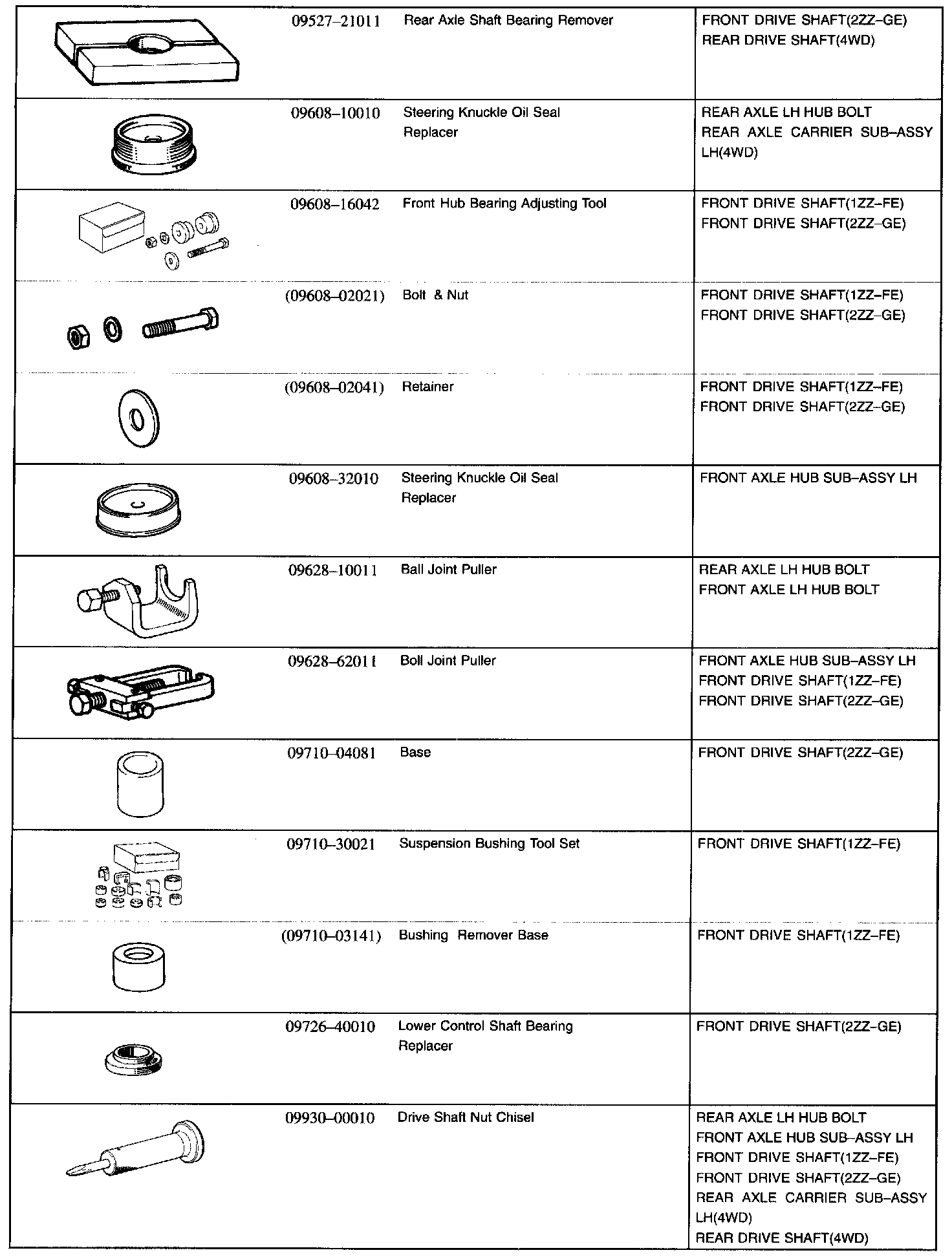

Drive Shaft/ Propeller Shaft - SST Part 2:

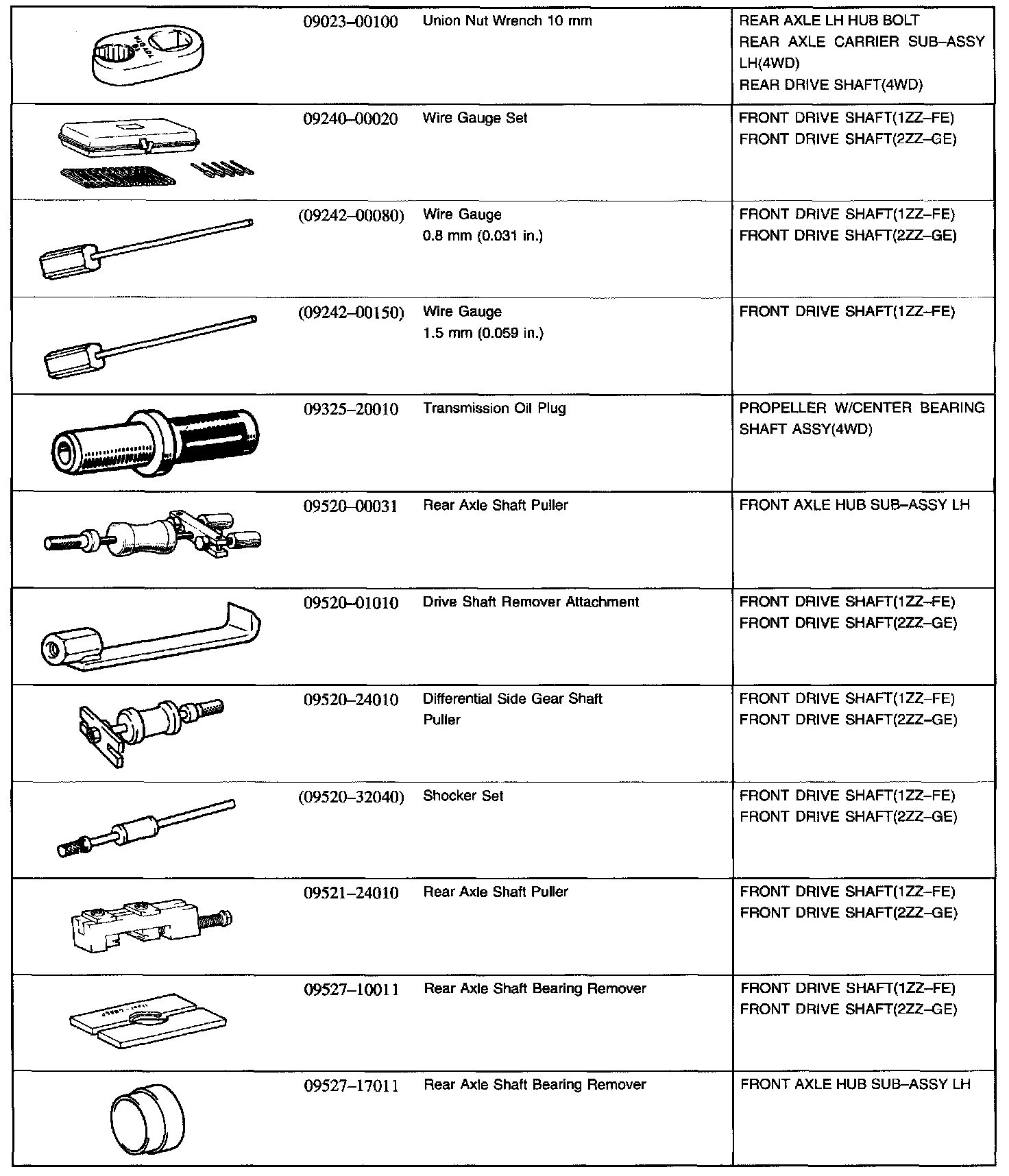

Drive Shaft/ Propeller Shaft - SST Part 3:

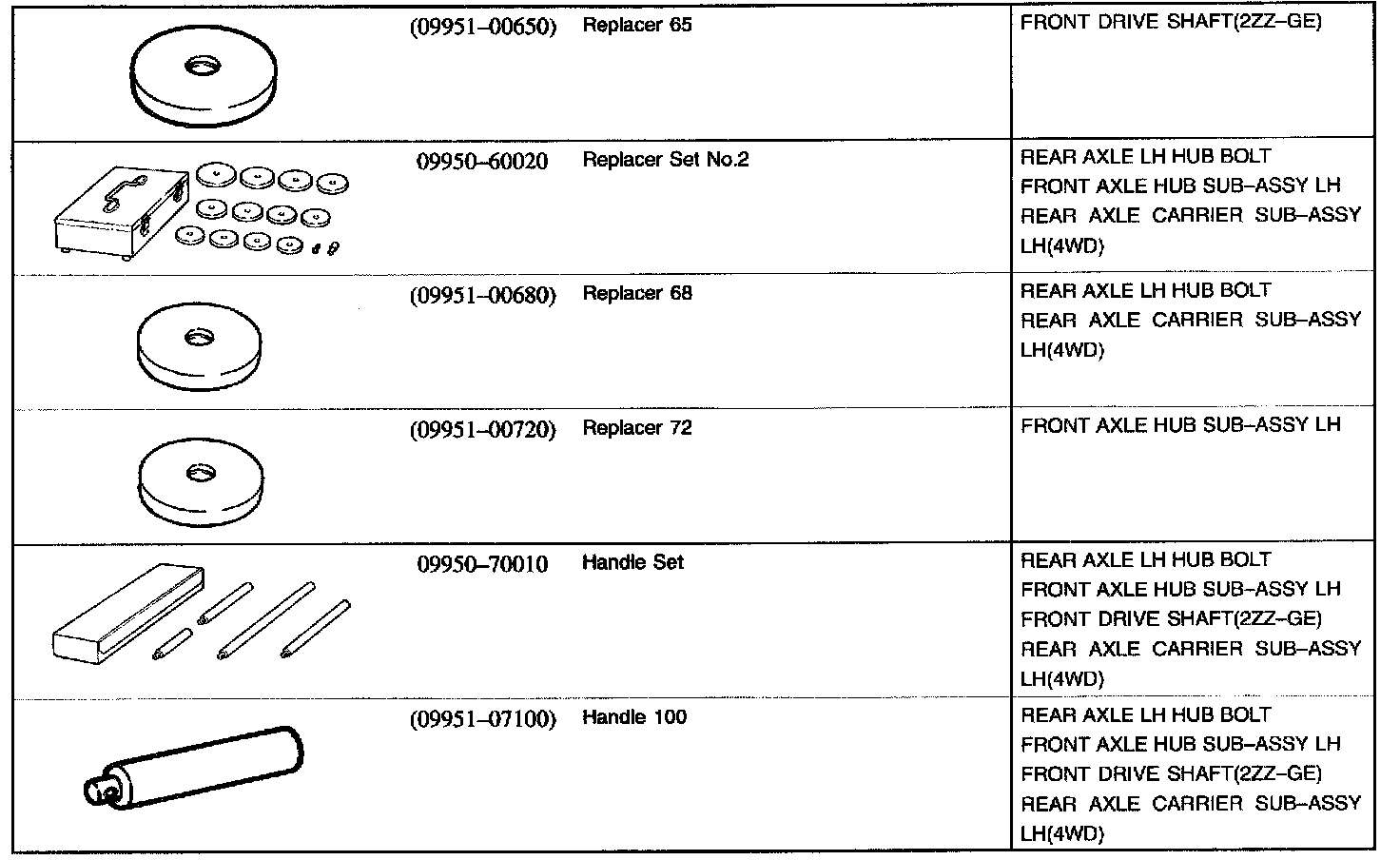

Drive Shaft/ Propeller Shaft - SST Part 4:

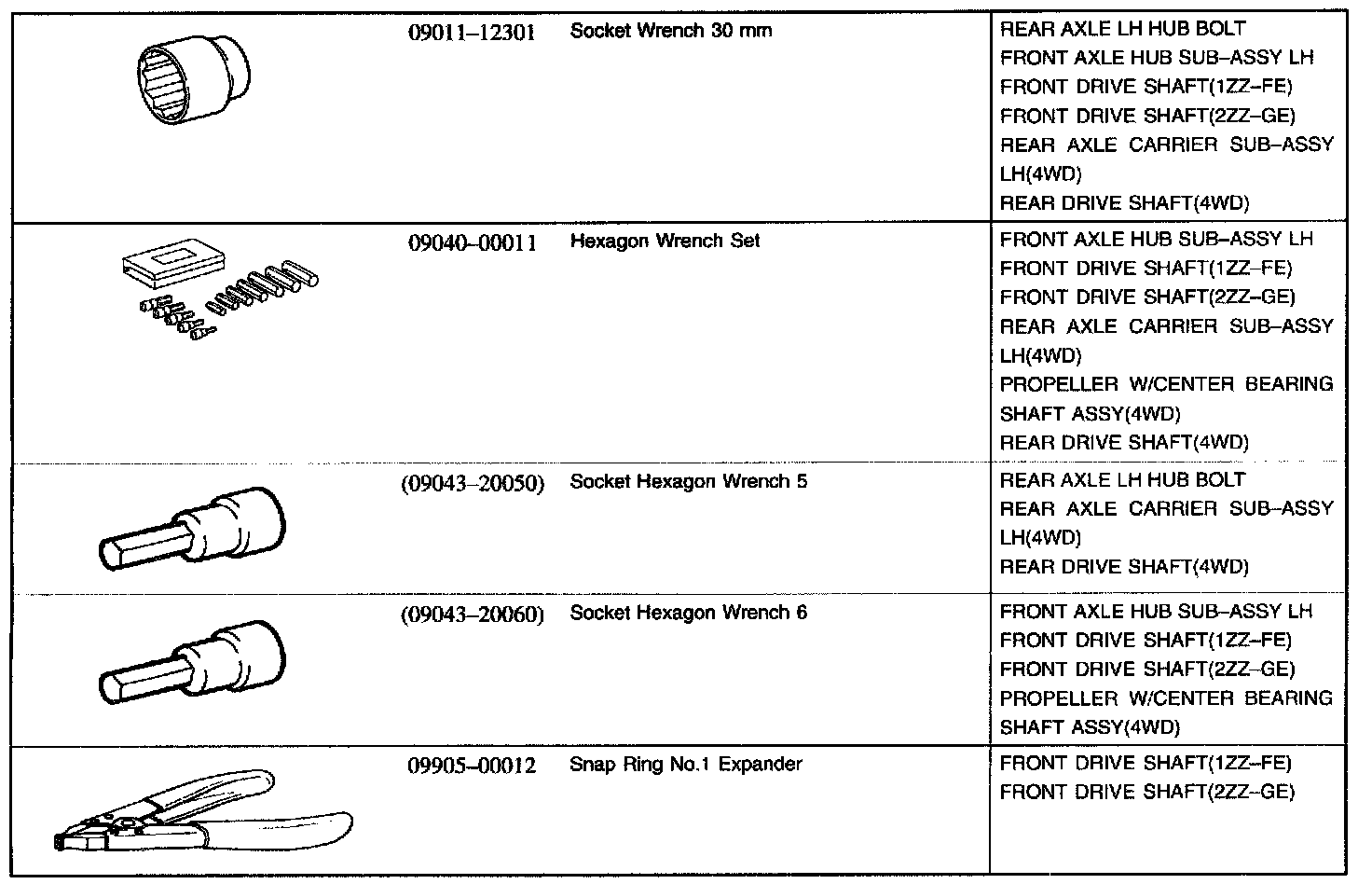

Drive Shaft/ Propeller Shaft - Recommended Tools Part 1:

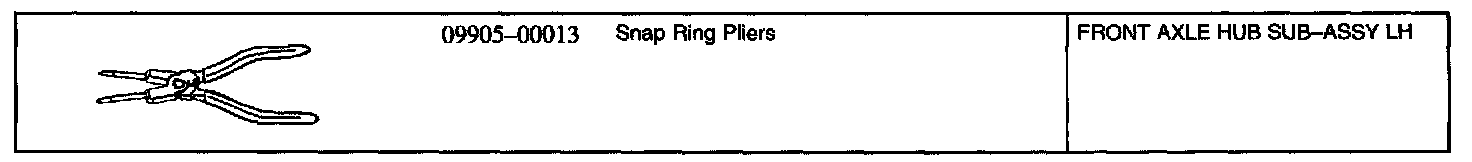

Drive Shaft/ Propeller Shaft - Recommended Tools Part 2:




Drive Shaft/ Propeller Shaft - Equipment:

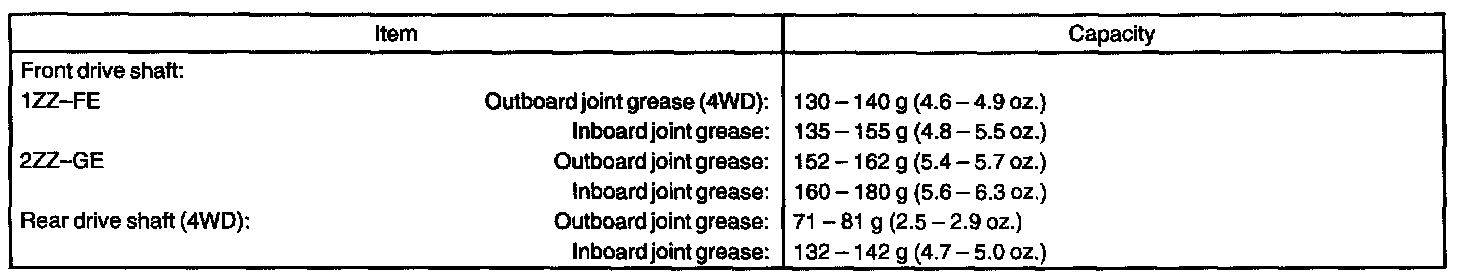

Drive Shaft/ Propeller Shaft - Lubricant:
