System Specifications

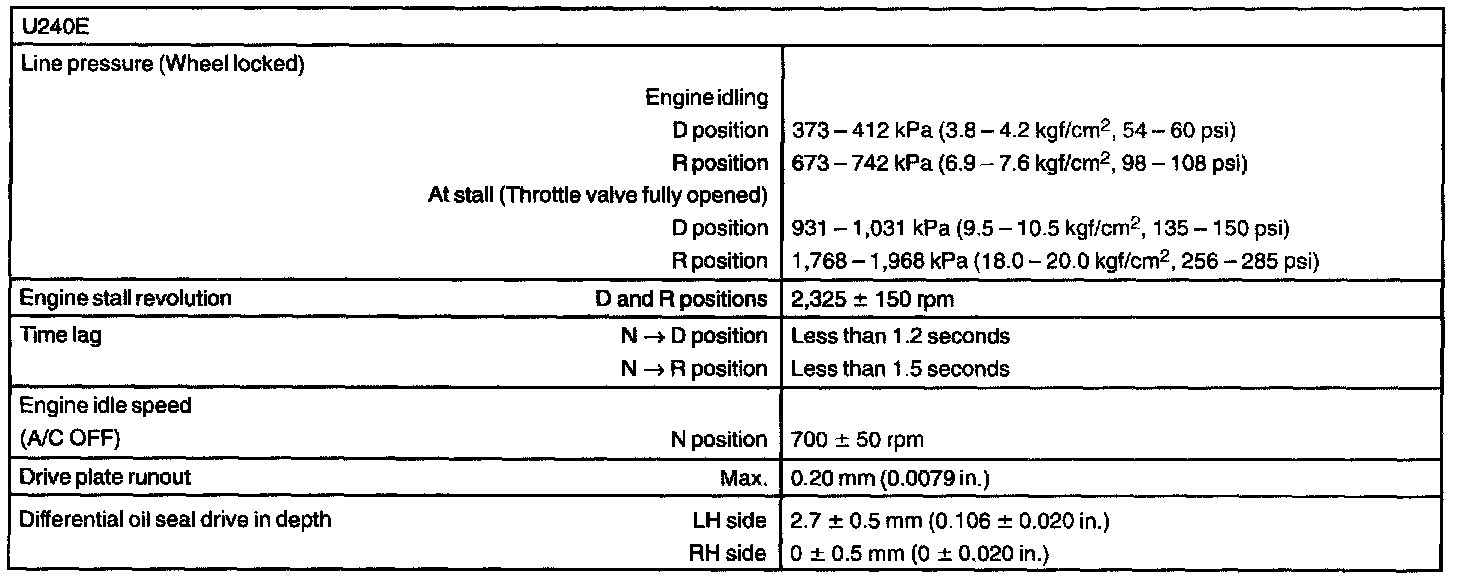

U240E Automatic Transmission/Transaxle - Service Data Part 1:



U240E Automatic Transmission/Transaxle - Service Data Part 2:

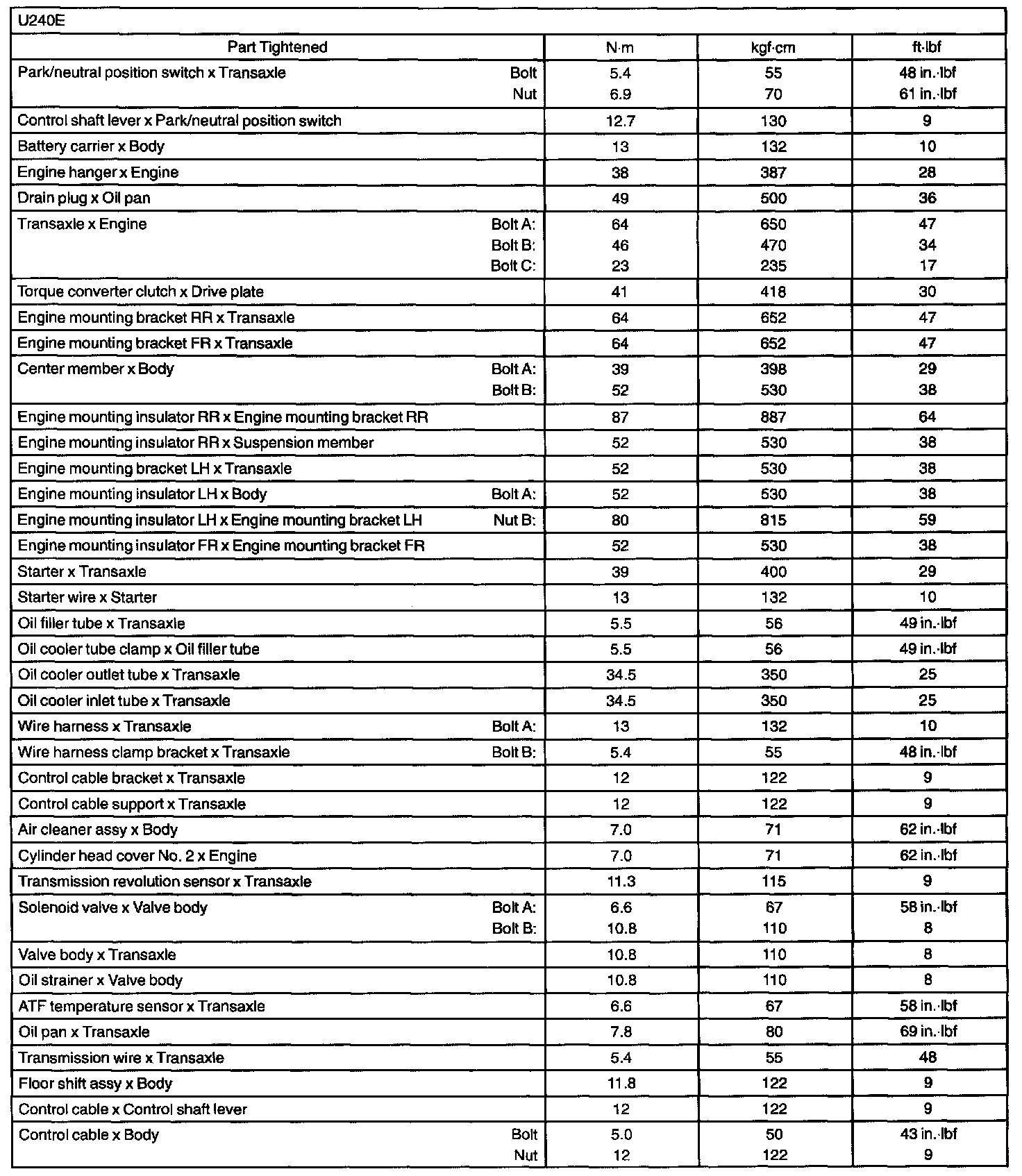

U240E Automatic Transmission/Transaxle - Torque Specification:
