Mechanical Specifications

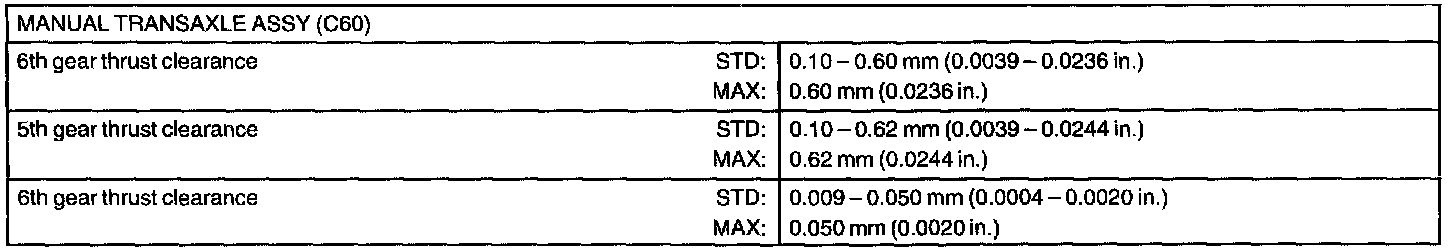

Manual Transaxle Assy - Service Data Part 1:

Manual Transaxle Assy - Service Data Part 2:

Manual Transaxle Assy - Service Data Part 3:

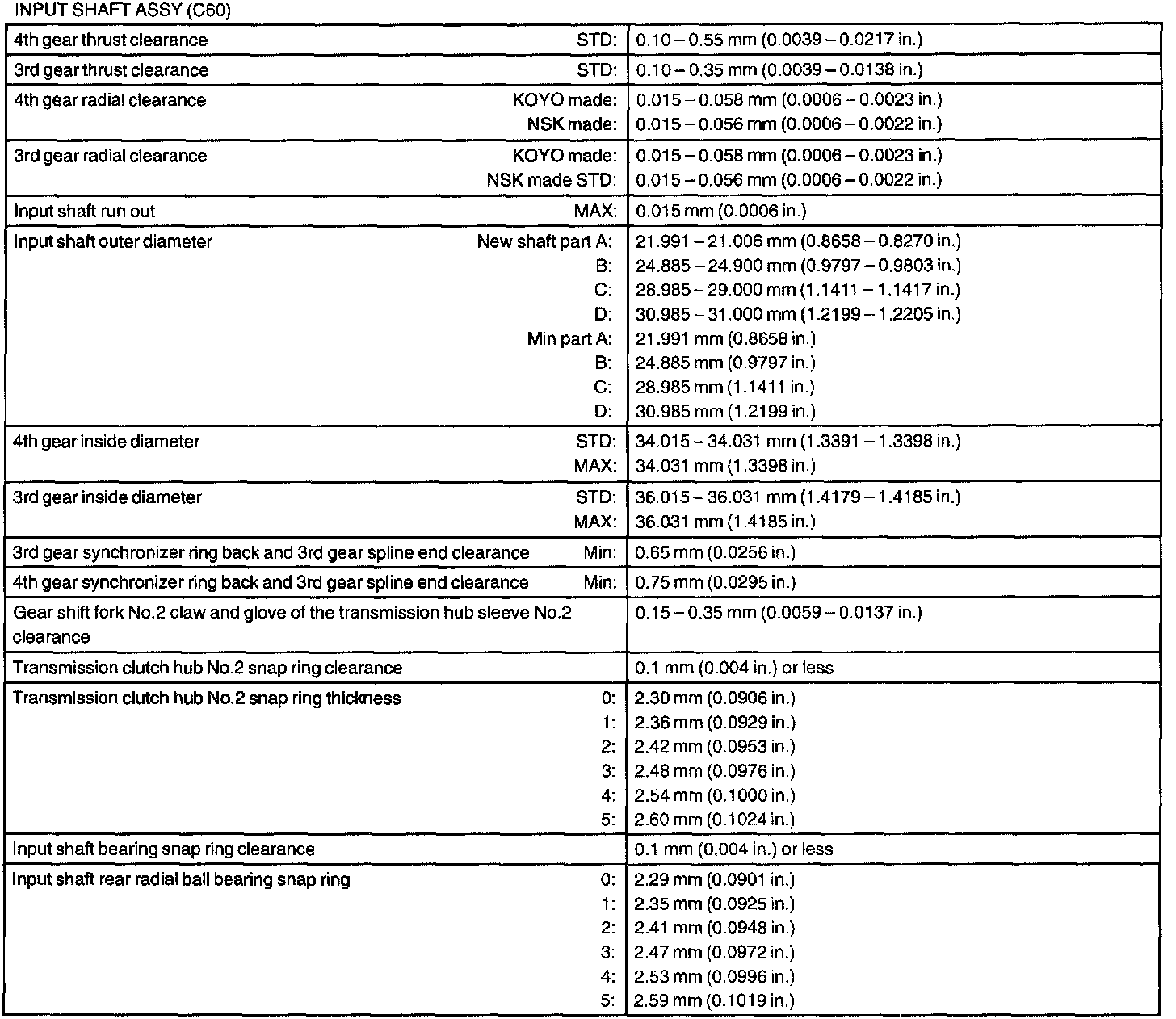

Input Shaft Assy - Service Data:

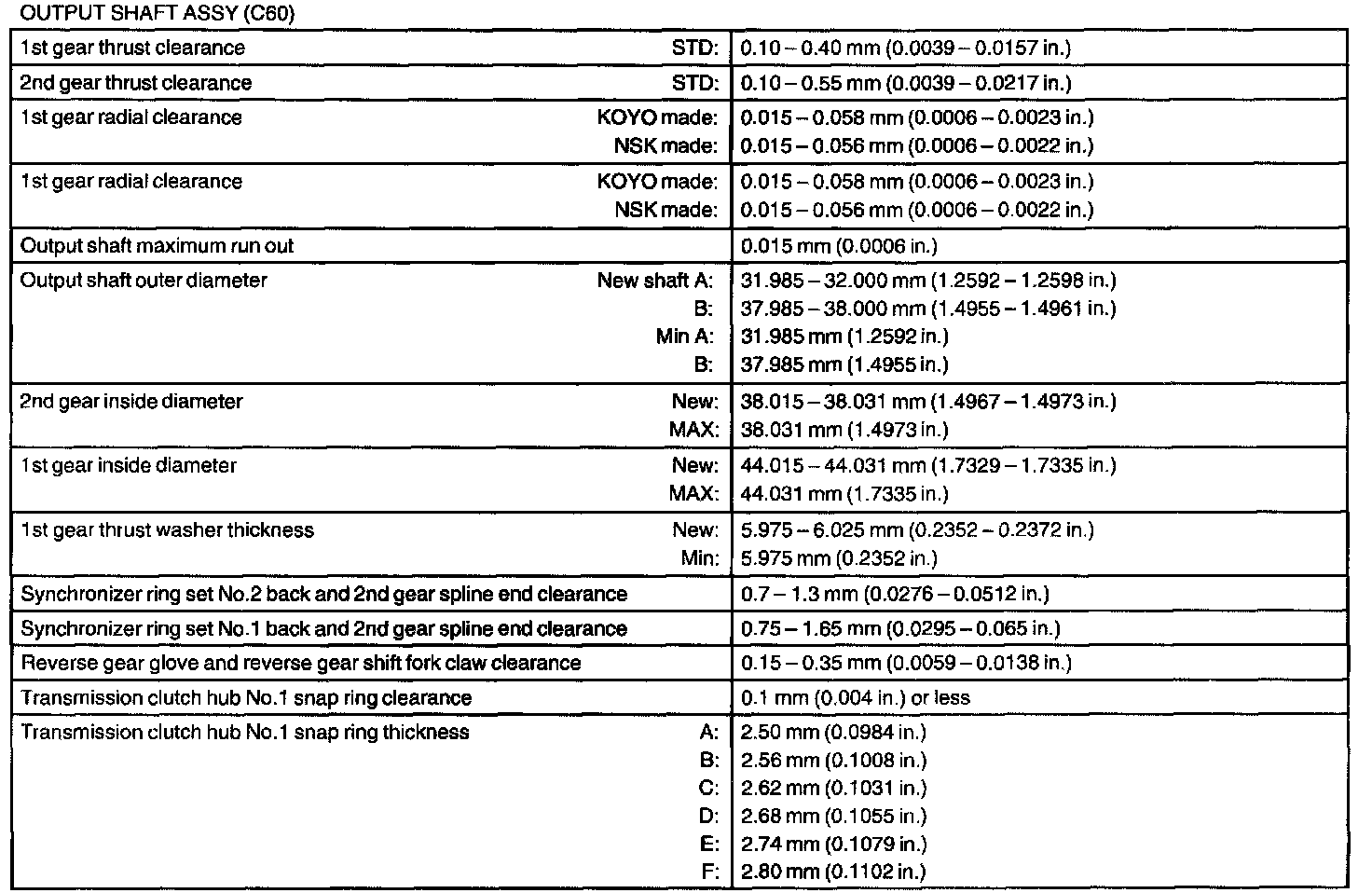

Output Shaft Assy - Service Data:

Differential Case Assy (MTM) Part 1:

Differential Case Assy (MTM) Part 2:

Manual Transmission Transaxle - Torque Specification:

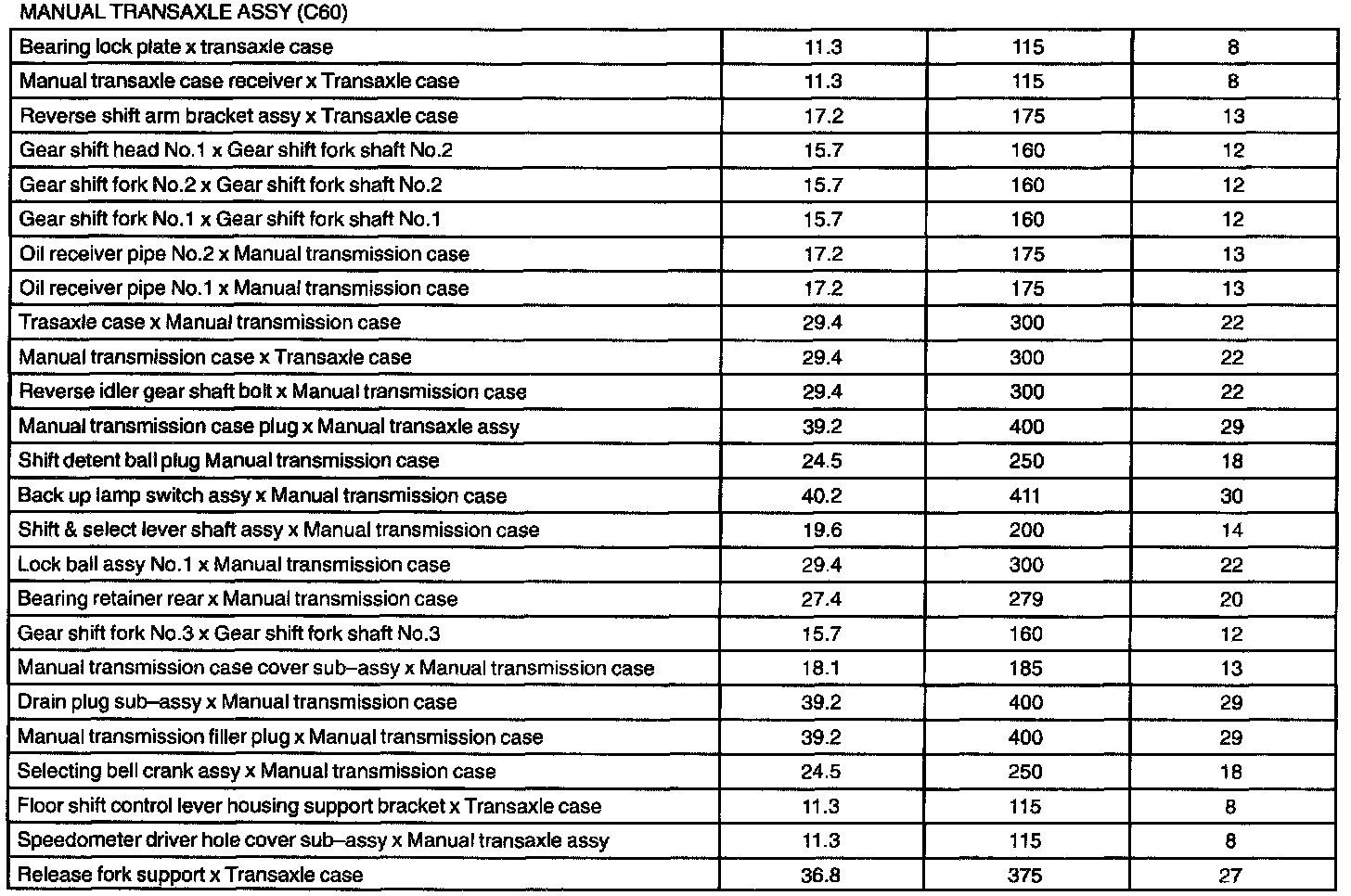

Manual Transaxle Assy - Torque Specification:
