ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC No." in the DTC chart.

C0200/31 - C1244/44:

C1245/45 - U0124/95:

DTC chart of ABS

C1201/51 - C1224/44:

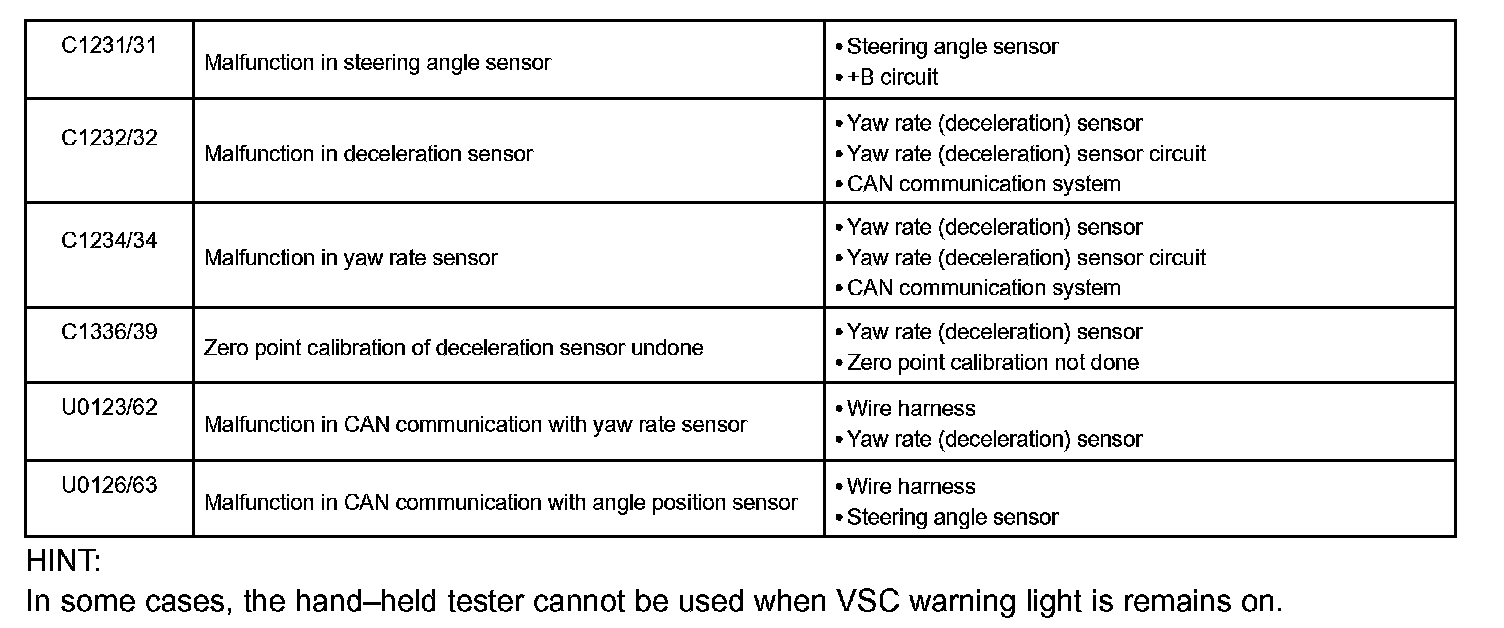

C1231/31 - U0126/53:

DTC chart of VSC

C1271/72 - C0371/71:

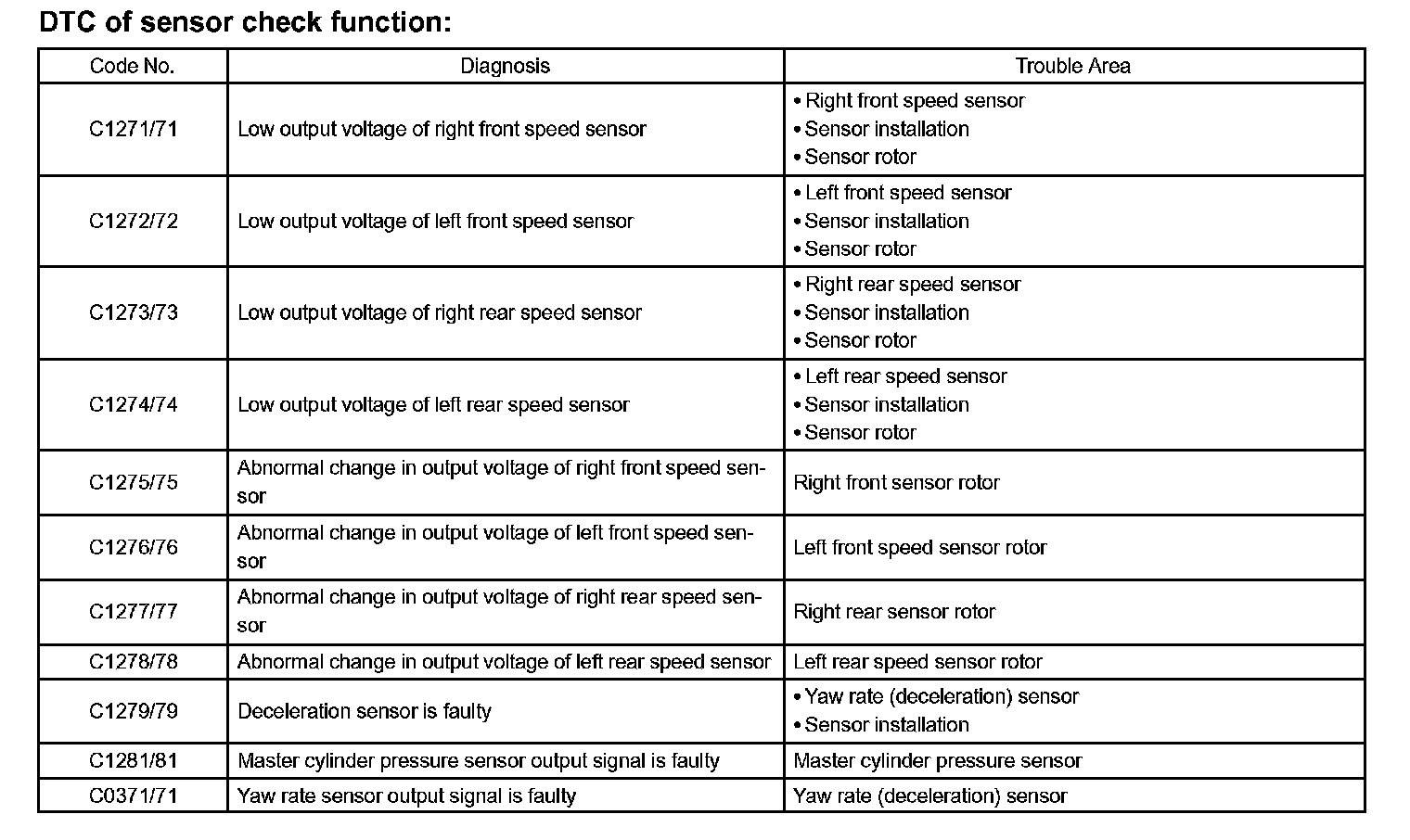

DTC of sensor check function
