Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2004
>>
Camry V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission System
Automatic Transmission System
DIAGNOSTIC TROUBLE CODE CHART
P0500 - P0748:

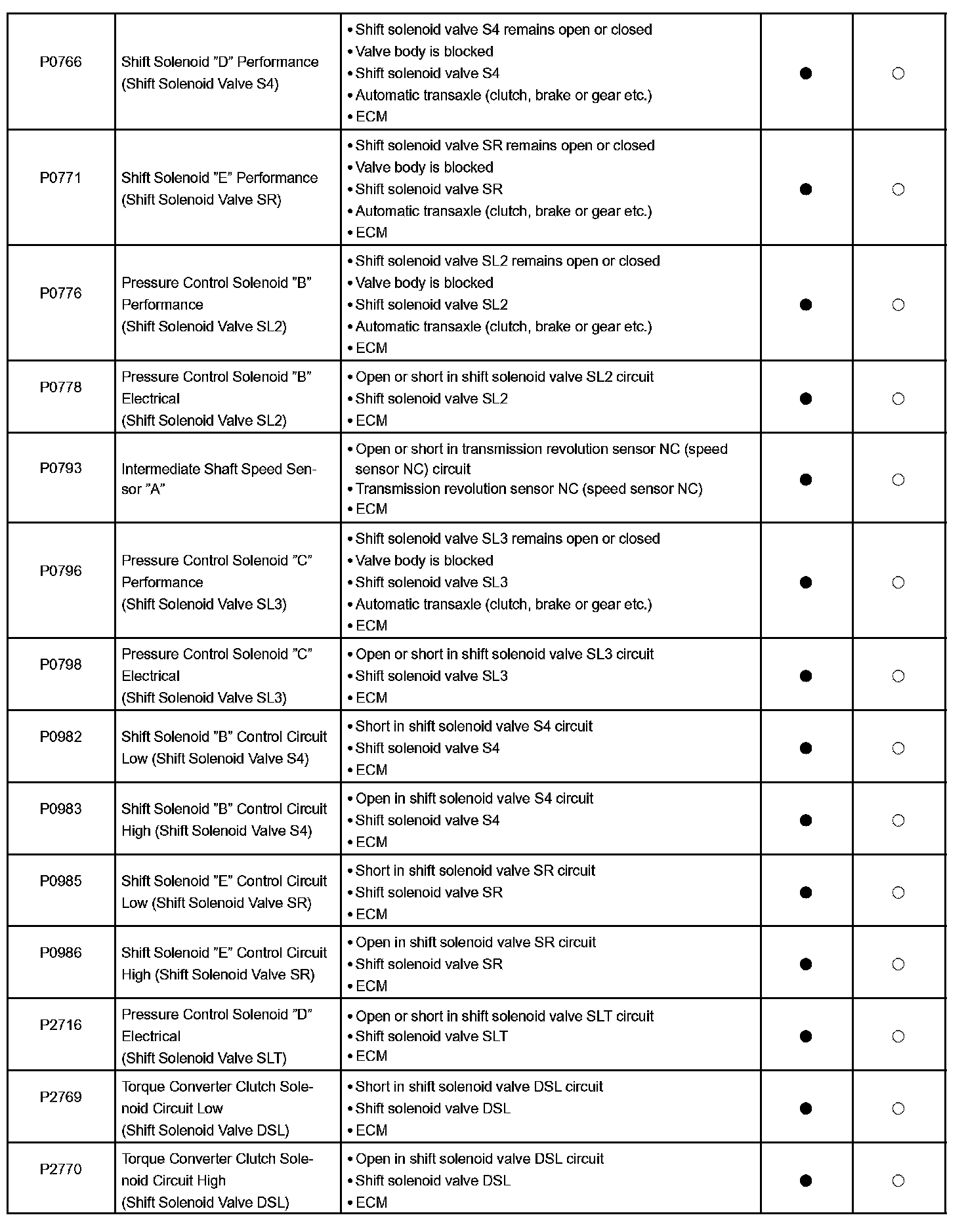

P0766 - P2770:
If a DTC is displayed during the DTC check, check the parts listed in the table above.
