Pinout Values and Diagnostic Parameters

Terminals Of ECU/Pinouts - Combination Meter Assy Part 1:

Terminals Of ECU/Pinouts - Combination Meter Assy Part 2:

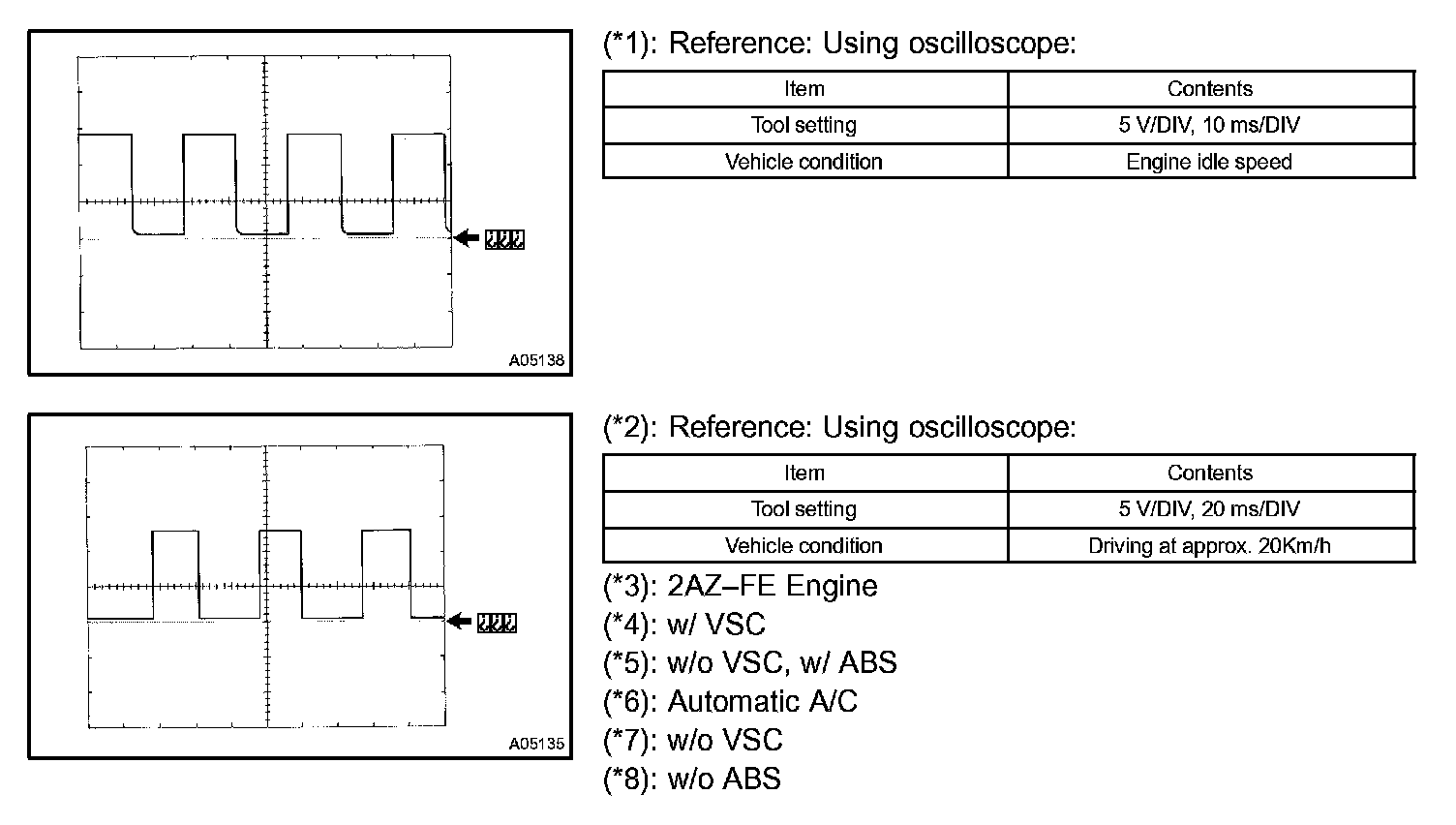

Oscilloscope Waveforms:

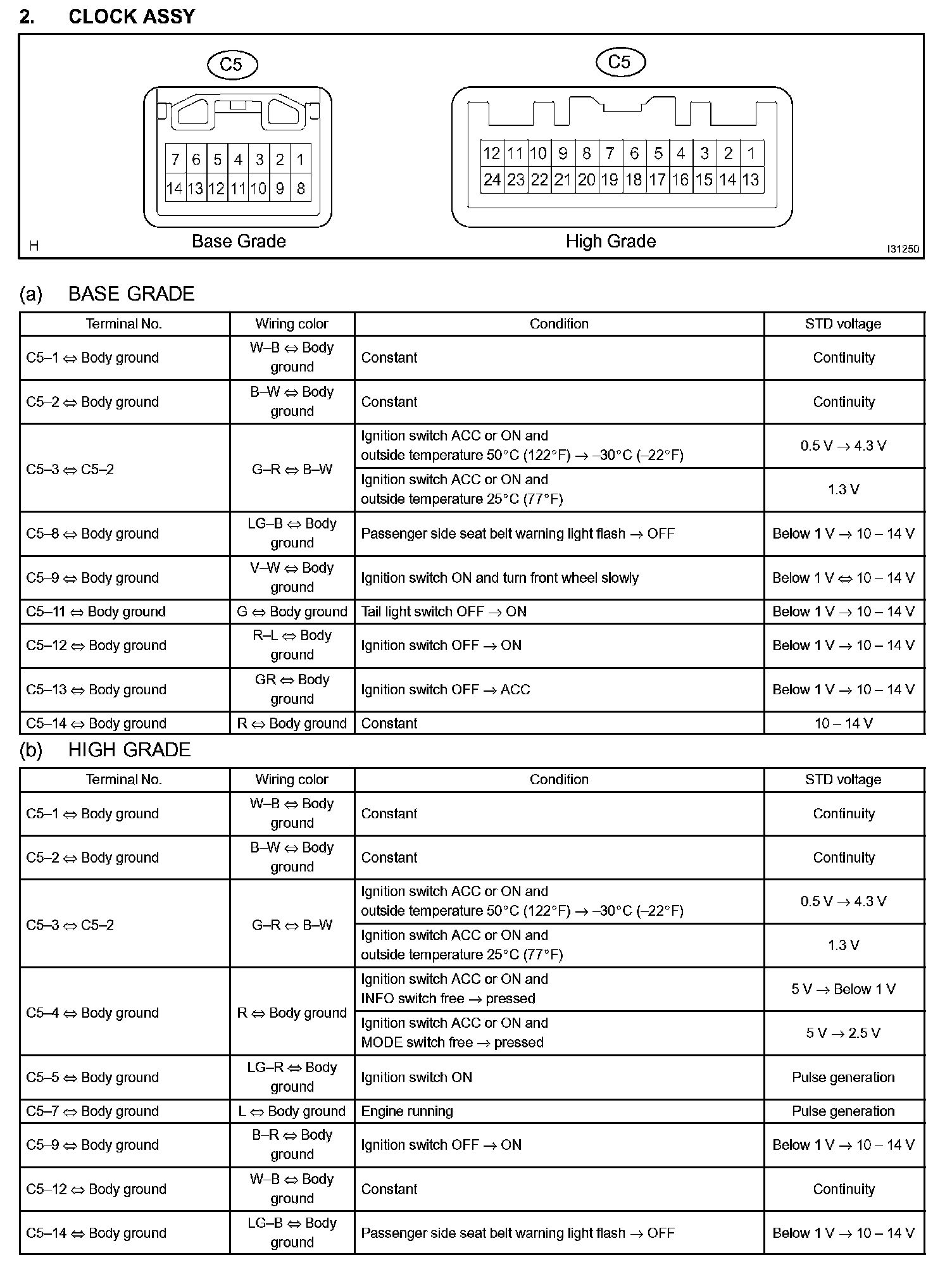

Terminals Of ECU/Pinouts - Clock Assy Part 1:

Terminals Of ECU/Pinouts - Clock Assy Part 2:
