Headlamp: Service and Repair
REPLACEMENT1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT FENDER LINER LH
5. REMOVE FRONT BUMPER COVER

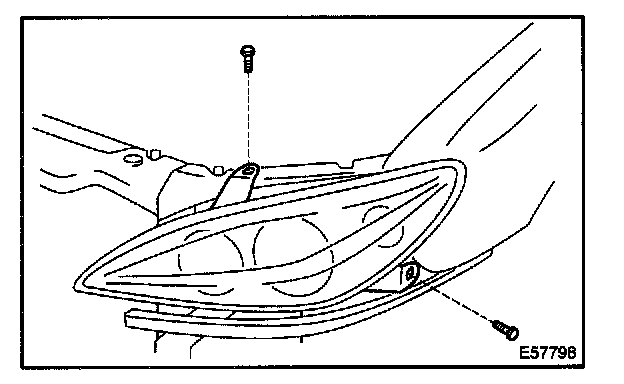

6. REMOVE LH HEADLAMP ASSEMBLY
a. Remove the 2 bolts.
b. Disconnect the connectors.
c. Pull out the headlight unit forward.
d. Remove the headlight assembly.
7. REMOVE HEADLAMP PROTECTOR RETAINER UPPER LH
HINT: When only the installation part of the headlight unit assembly LH is damaged, it can be repaired inexpensively by using a headlight protector retainer UPPER LH In this case, however, the headlight unit assembly LH itself should not be damaged.

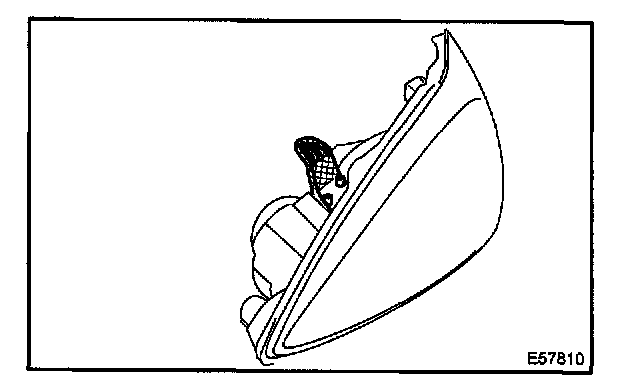

a. Cut off the part shaded in the illustration and sand smooth with sandpaper.
NOTE: After cutting oft the part roughly, place the headlight protector retainer UPPER LH against the bosses and gradually file any interfering part until the proper condition for installation is made.

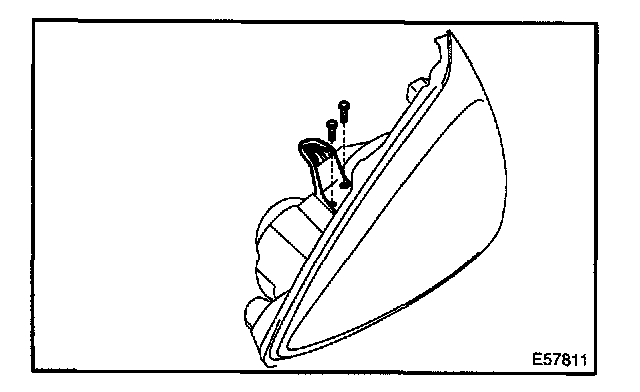

b. Install the headlight protector retainer UPPER LH with the 2 screws.
8. HEADLIGHT AIM ONLY
