License Plate Lamp: Service and Repair

REPLACEMENT

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
2. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE




3. REMOVE LICENSE PLATE LAMP ASSEMBLY

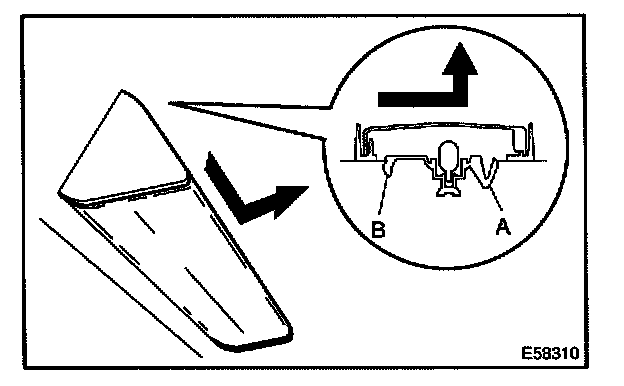

a. Pull the license plate light assembly to the side of vehicle as shown in the illustration and release the claw, then disconnect the connector.
