Multiple Junction Connector: Locations

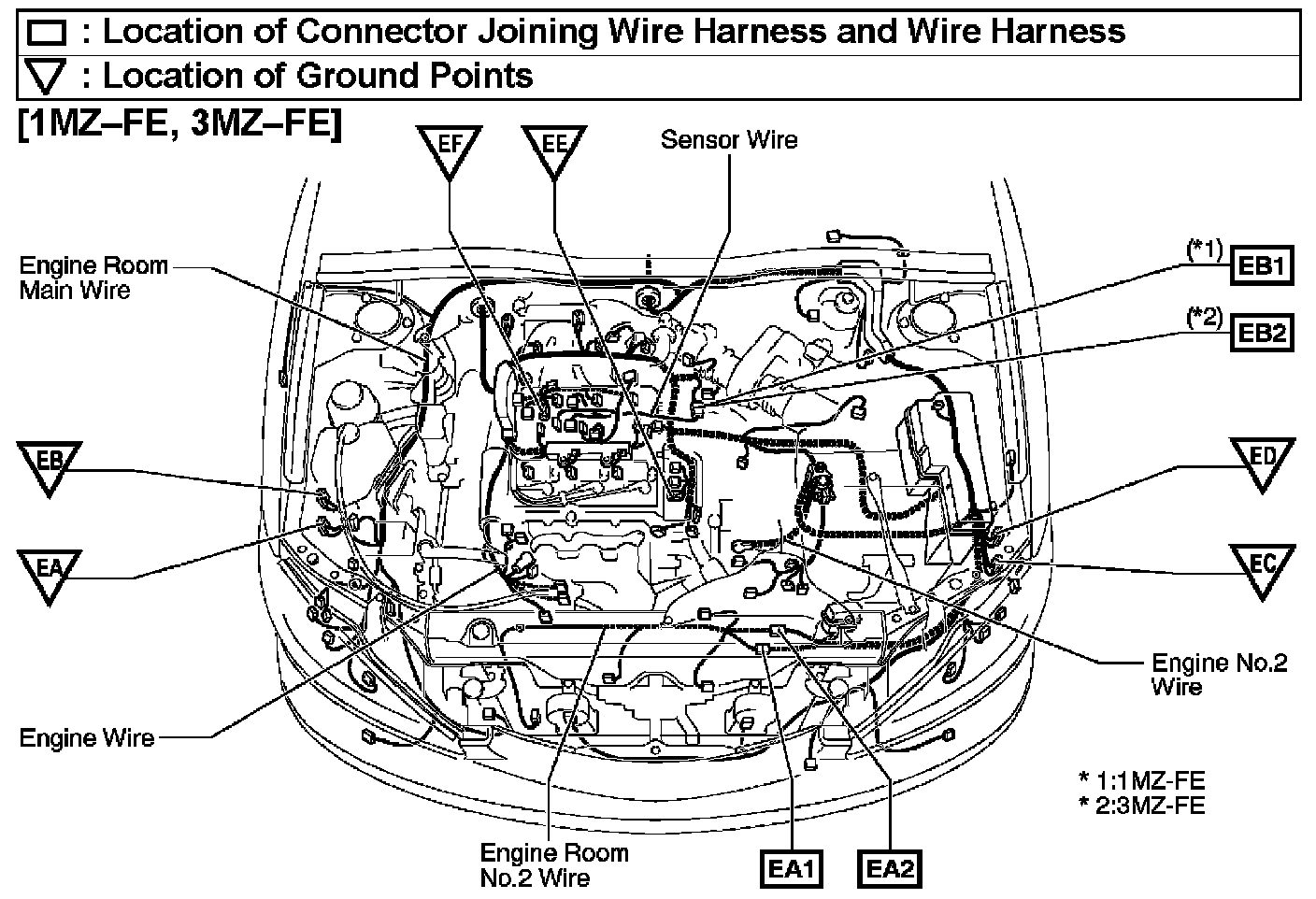

EA1 - EB1, EA - EF:

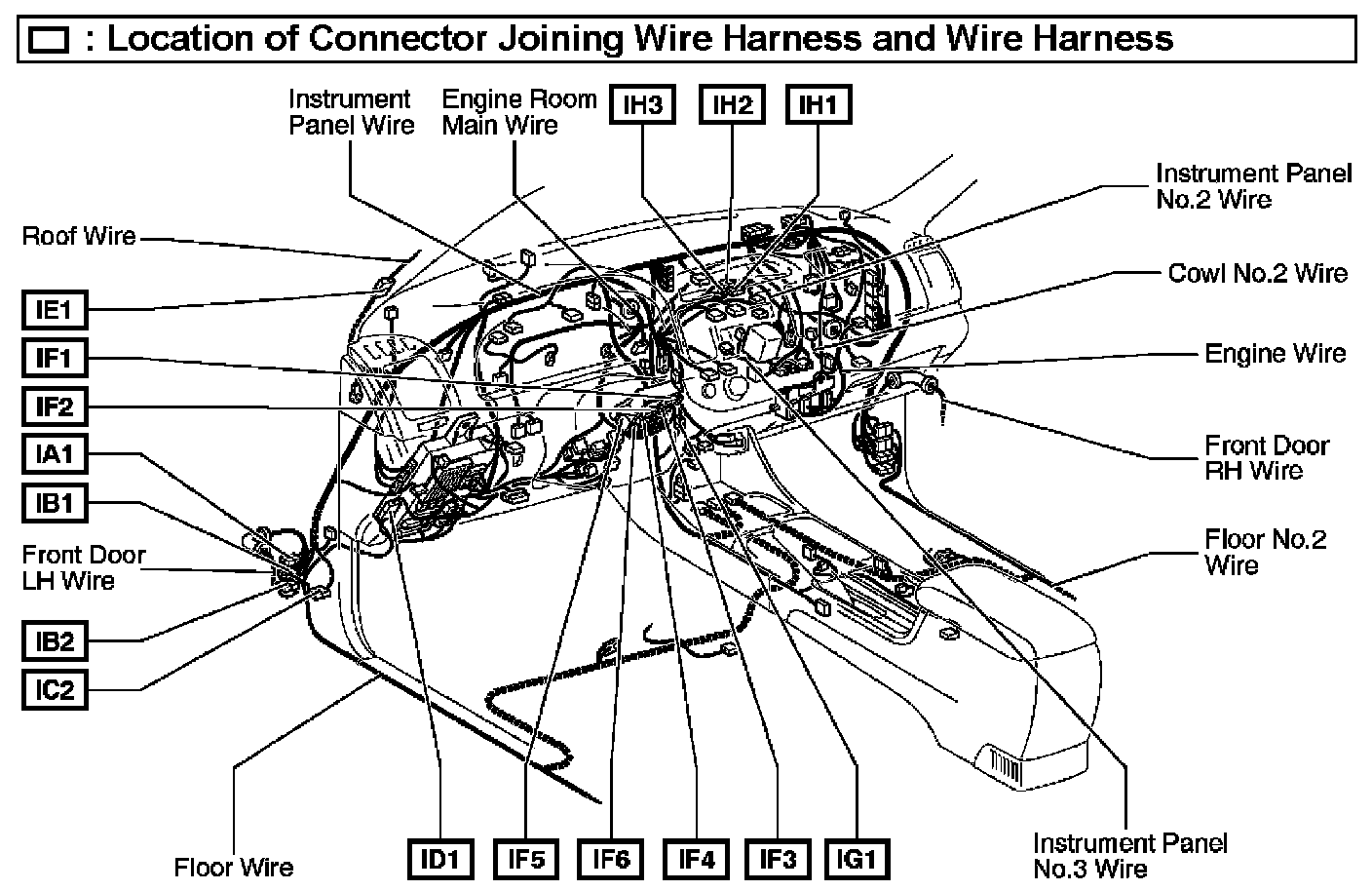

IA1 - IH3:

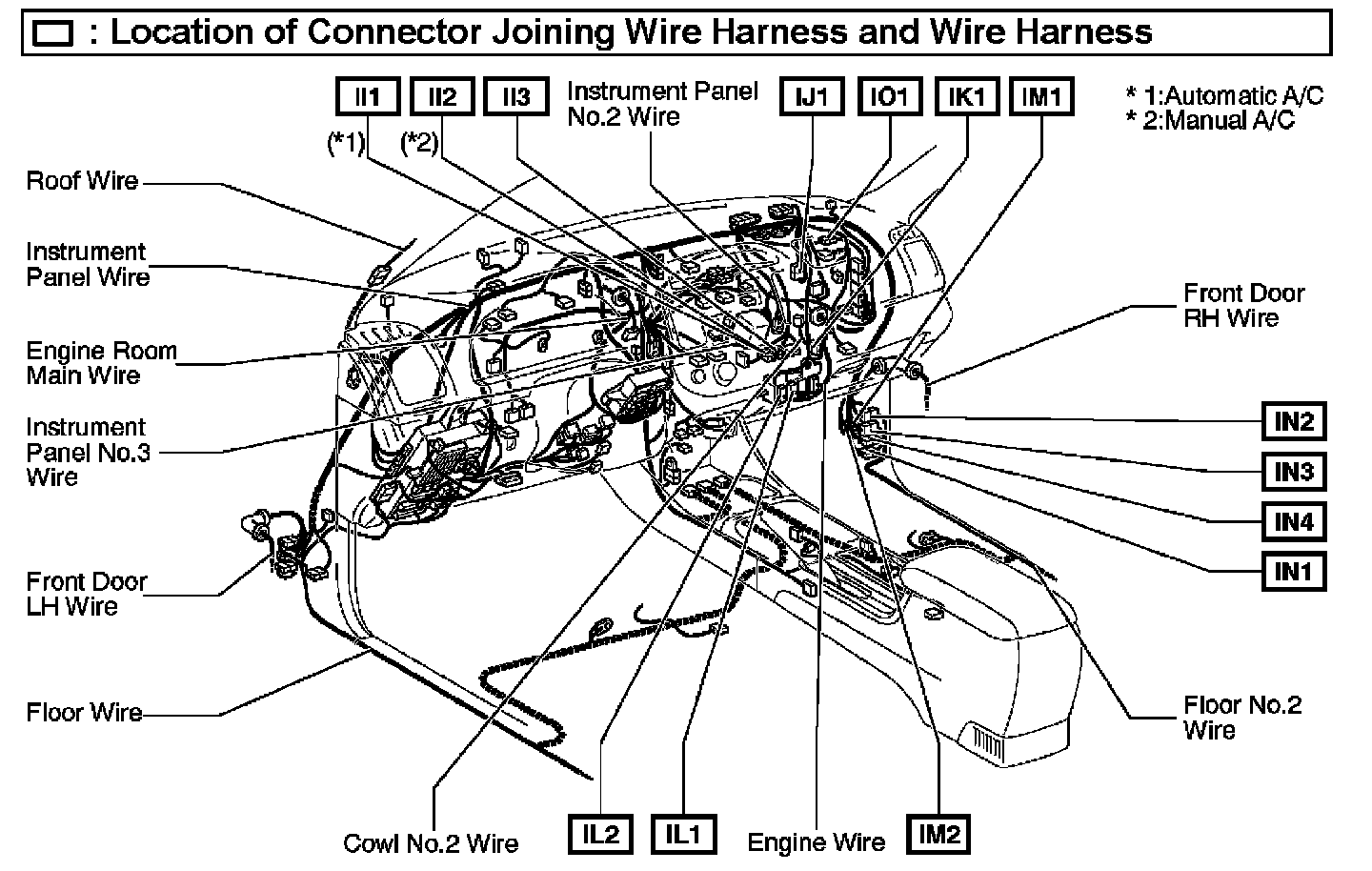

II1 - IO1:




BA1 - BC1, BO - BS:

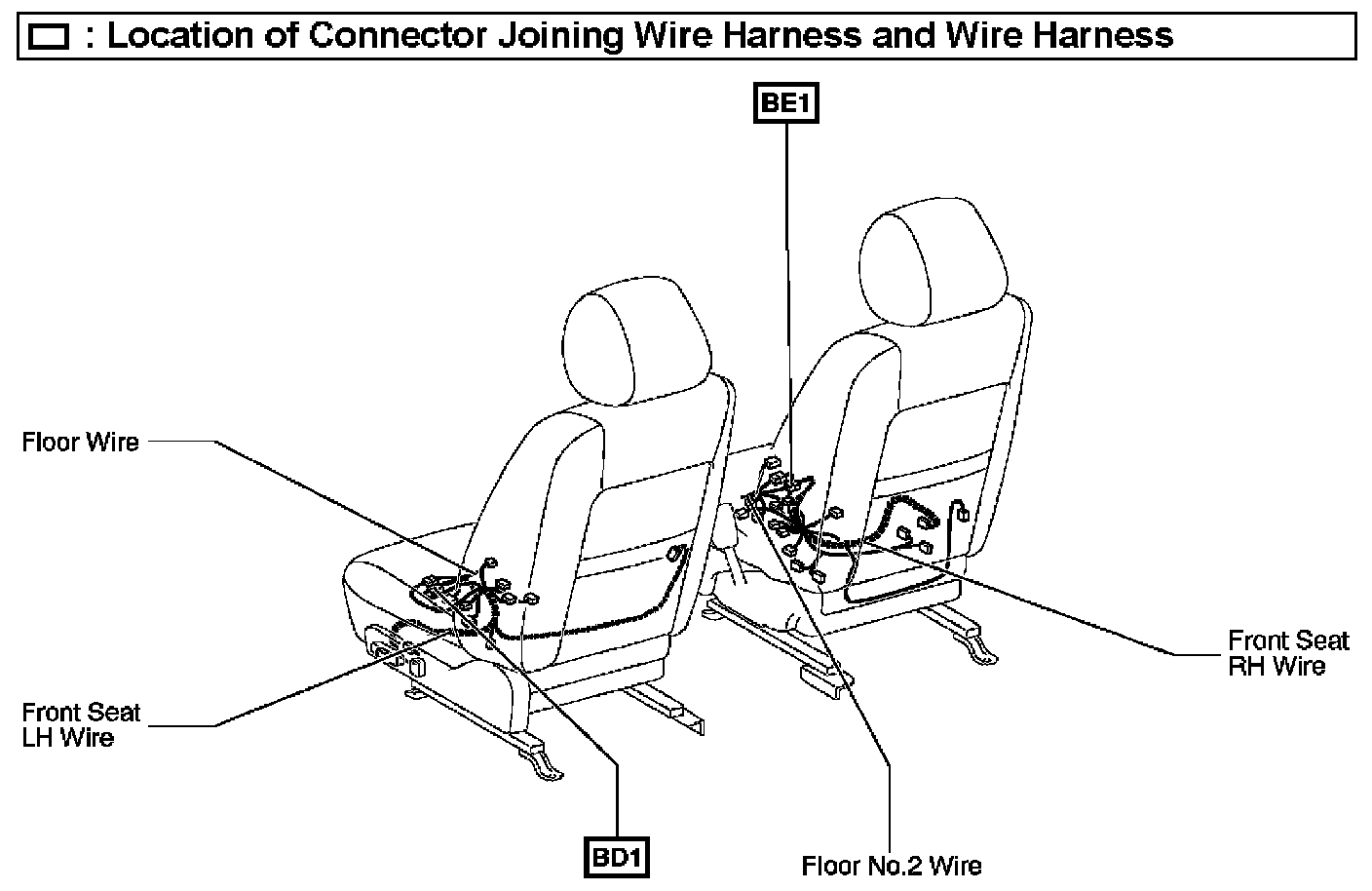

BD1 - BE1:
